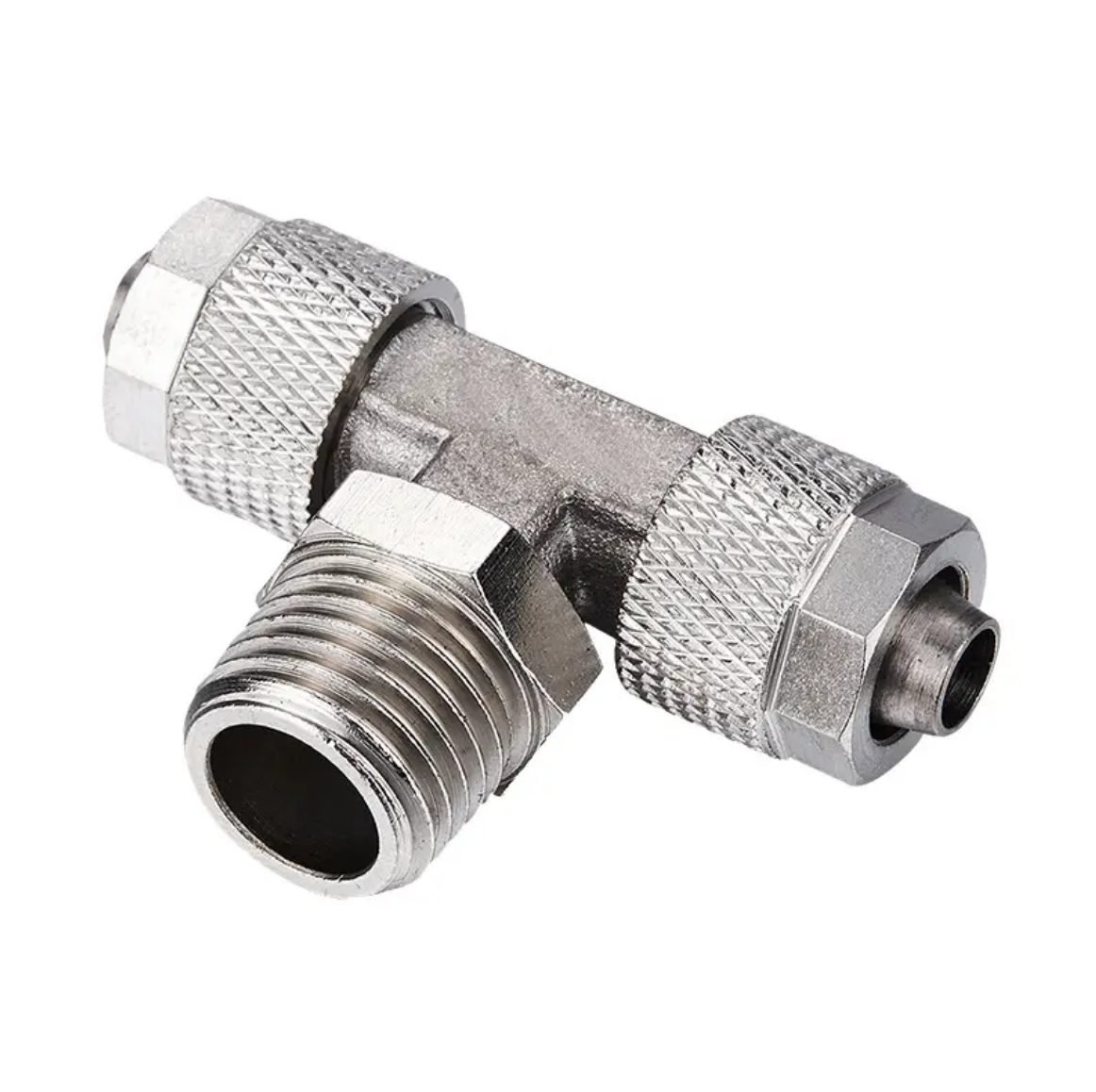

RPT Tee BSPT Thread Knurling Push on Fit Air Fitting
Details
Features
The rapid fittings can be used with rigid nylon tubes.
A locking nut is provided and can be tightened both manually and with a spanner.
The special shape of the guiding cone ensures that the tube can not be accidentally cut.
Specifications
| Material | Bodyand collet:Nickel-plated Brass O.ring:NBR(othor material is available on request) |
| Threads | BSPT,BSPP,NPT,Metric threads |
| Pressure | 0.8-16bar(see tube) |
| Fluid | Compressed air |
| Temperature | -10℃-16℃(see data of used tubing) |

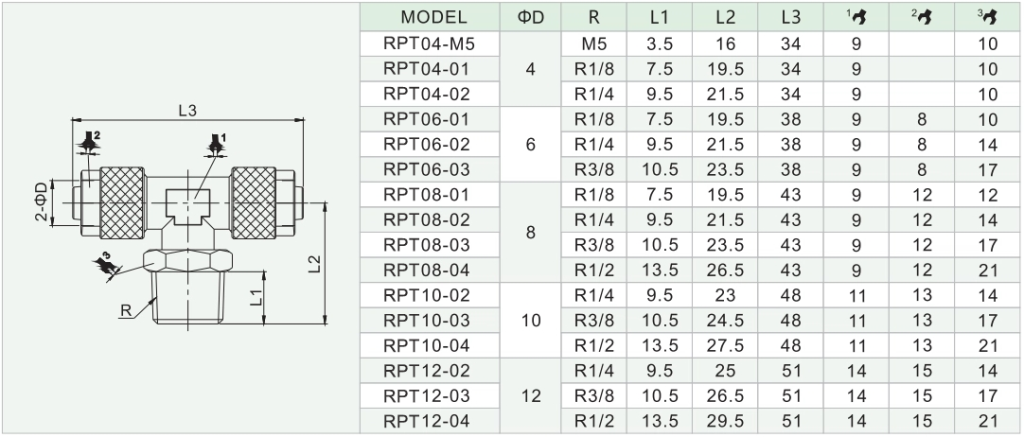

Structure Chart
