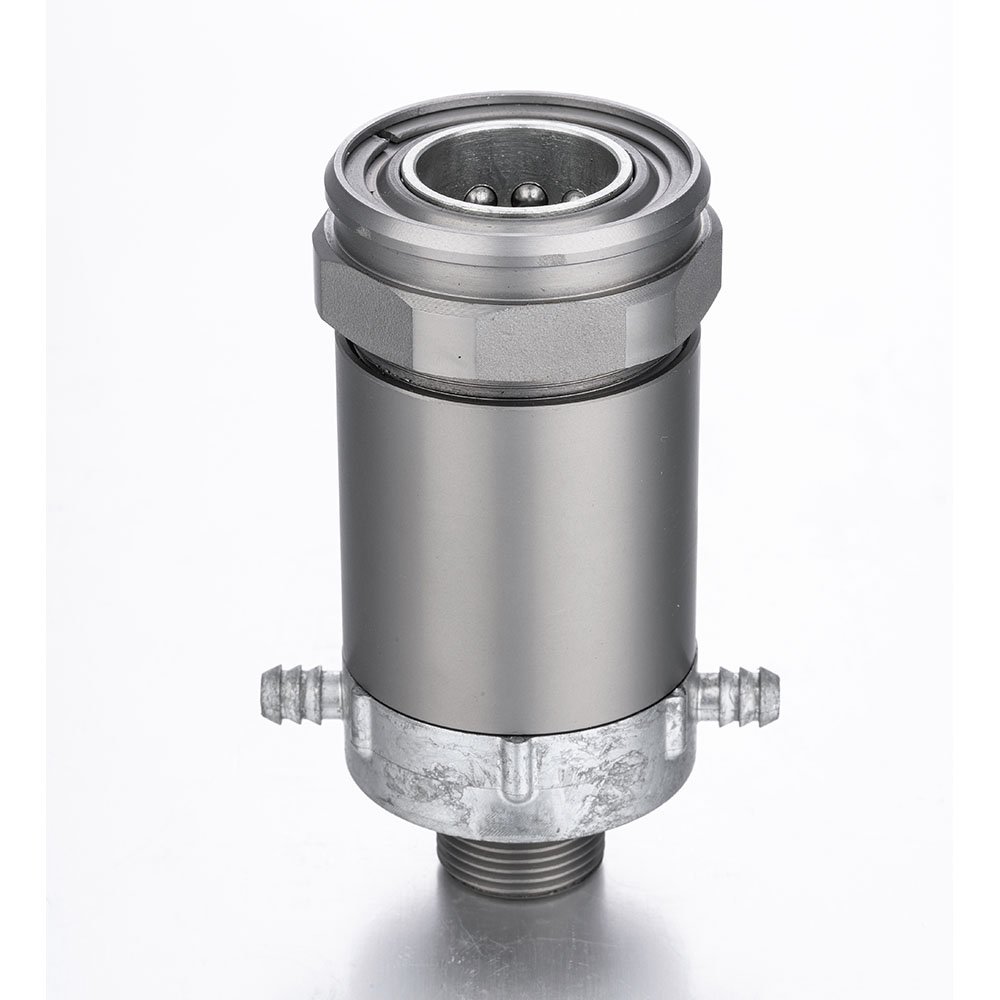

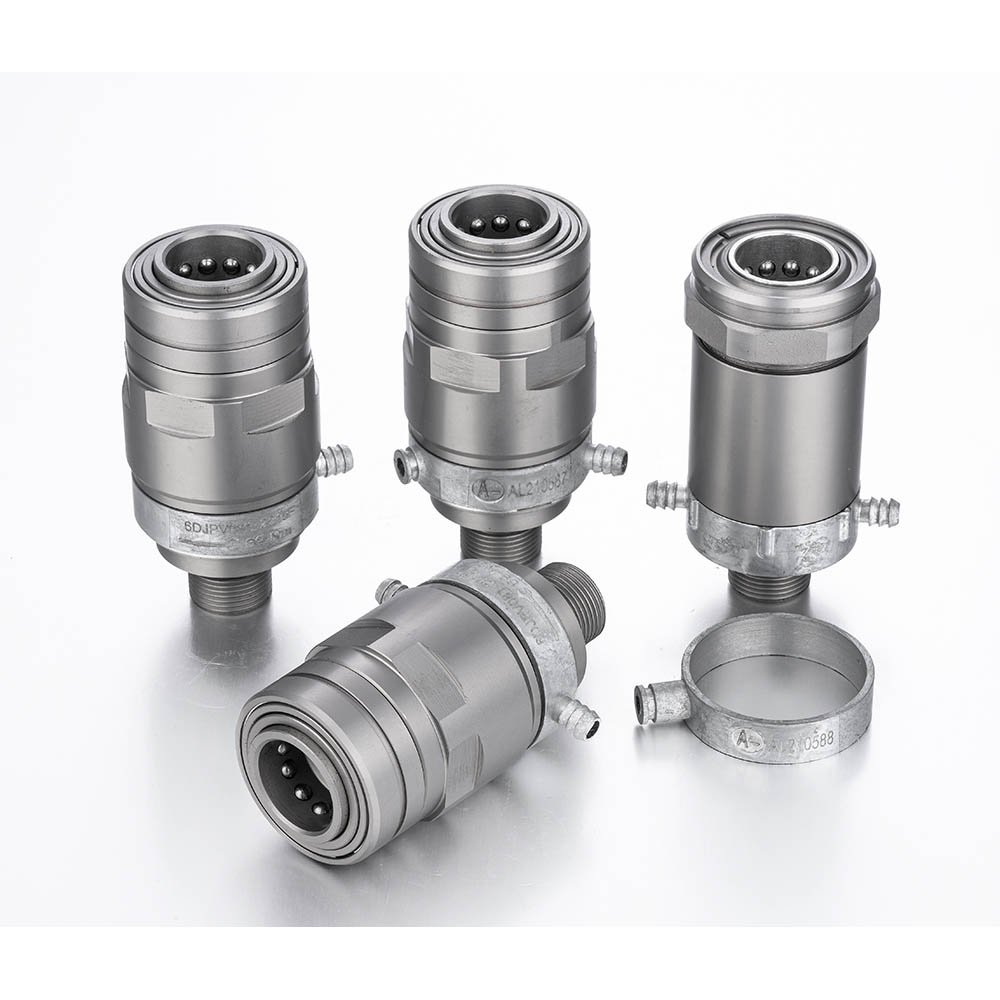

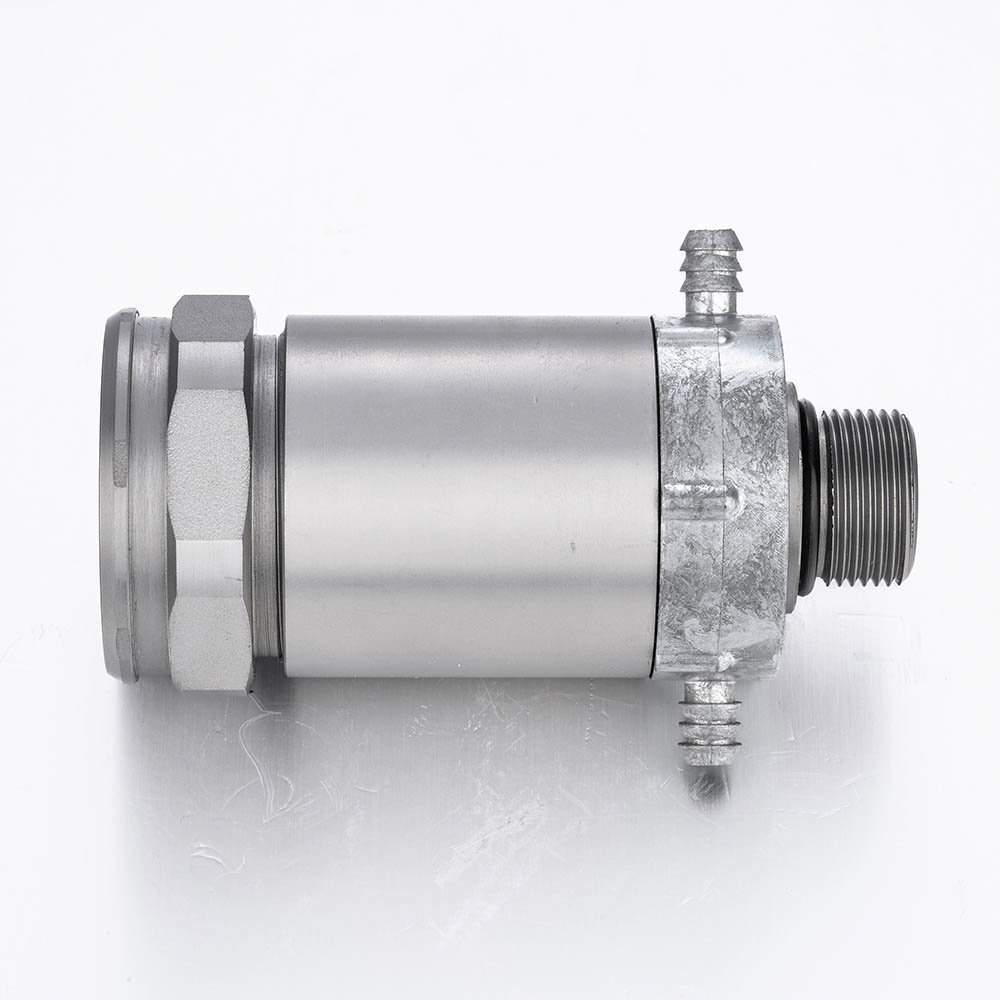

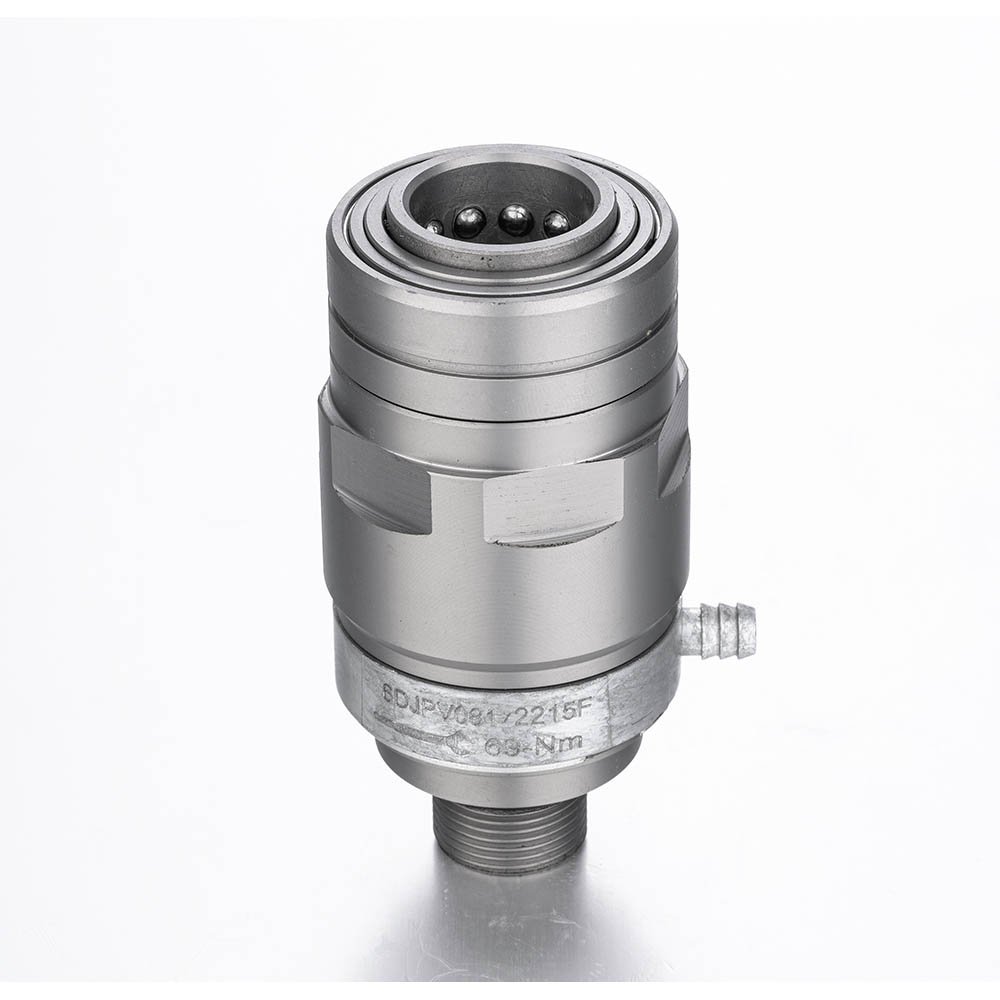

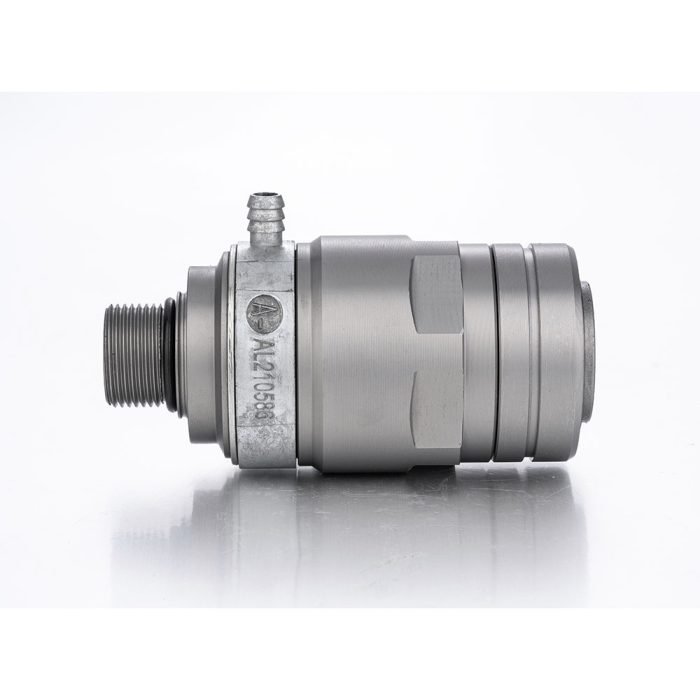

QNPV
Details
| Size | Working pressure | Flow Rate | Burst Pressures | |||
| @0,2 MPa pressure drop |
 |
 |
 |
|||
| mm | inch | MPa (PSI) | I/min(GPM) | MPa(PSI) | MPa(PSI) | MPa(PSI) |
| 12.5 | 1/2″ | 25(3625) | 50 | 120(17100) | 100(14500) | 105(15250) |
Female
| Part No. | Thread | E | F | G | Part No. | Thread | E | F | G |
| (mm.) | (mm.) | ( mm.) | (in.） | (in.） | (in.） | ||||
| QNPV-G04SM | G1/2 | 101.7 | 46 | 50 | QNPV-G04SF | G1/2 | 4.0 | 1.81 | 1.97 |
| QNPV-NO4SM | NPT1/2 | 101.7 | 46 | 50 | QNPV-N04SF | NPT1/2 | 4.0 | 1.81 | 1.97 |
| QNPV-U04SM | 3/4UNF | 101.7 | 46 | 50 | QNPV-U04SF | 3/4UNF | 4.0 | 1.81 | 1.97 |
| QNPV-M22SM | M22X1.5 | 101.7 | 46 | 50 | QNPV-M22SF | M22X1.5 | 4.0 | 1.81 | 1.97 |
| QNPV-U1-78SM | 7/8UNF | 110.8 | 46 | 50 | QNPV-U1-78SF | 7/8UNF | 4.48 | 1.81 | 1.97 |
Male
Features
Connexion by pushing the male coupling
Disconnexion by pulling the male part
Shut off by poppet valve
Connectable with male part (ISO A) under pressure
Breakaway function according to IS0 5675 specifications
Interchangeability according to ISO 7241-1 part A
Technical Specifcations
High grade carbon steel with heat
treated wear parts
NBR
Backup ring in PTFE
-25°C to +125°C
(-13°Fto +257°F)
According to Is0 7241-2
Fields of application
