Details

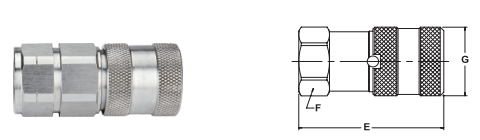

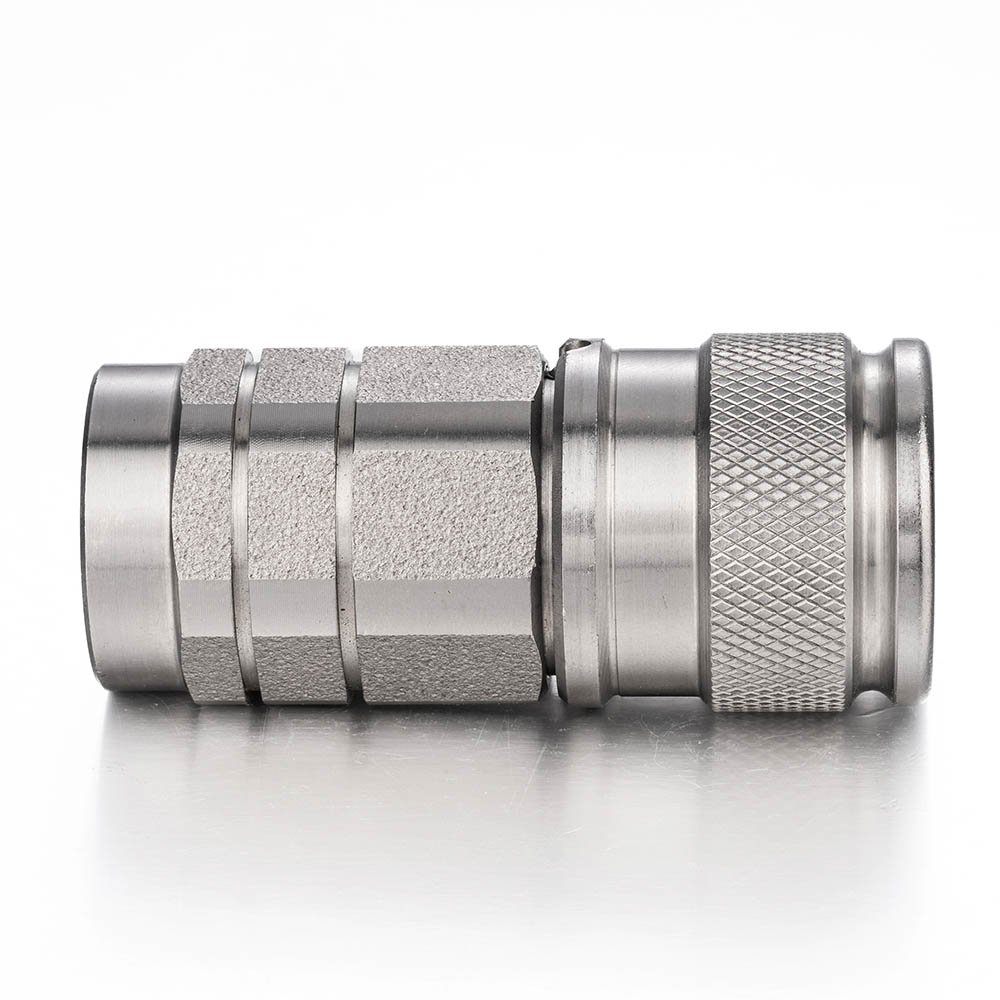

Female
| Part No. | Thread | Size | A | C | D | Part No. | Thread | Size | A | C | D |
| (mm.) | (mm.) | ( mm.) | (in.） | (in.） | (in.） | ||||||
| QKPS 02-02SF | G1/4 | 1/4 | 48.0 | 24.0 | 28.0 | QKPS 02-N02SF | NPT1/4 | 1/4 | 1.88 | 0.94 | 1.10 |
| QKPS 03-03SF | G3/8 | 3/8 | 65.0 | 27.0 | 32.0 | QKPS 03-N03SF | NPT3/8 | 3/8 | 2.55 | 1.06 | 1.25 |
| QKPS 03-04SF | G1/2 | 3/8 | 70.0 | 27.0 | 32.0 | QKPS 03-N04SF | NPT1/2 | 3/8 | 2.75 | 1.06 | 1.25 |
| QKPS 04-04SF | G1/2 | 1/2 | 79.0 | 36.0 | 40.0 | QKPS 04-N04SF | NPT1/2 | 1/2 | 3.11 | 1.41 | 1.57 |
| QKPS 04-06SF | G3/4 | 1/2 | 79.0 | 36.0 | 40.0 | QKPS 04-N06SF | NPT3/4 | 1/2 | 3.11 | 1.41 | 1.57 |
| QKPS 06-06SF | G3/4 | 3/4 | 79.0 | 36.0 | 41.0 | QKPS 06-N06SF | NPT3/4 | 3/4 | 3.11 | 1.41 | 1.63 |
| QKPS 08-08SF | G1 | 1 | 93.0 | 45.0 | 48.0 | QKPS 08-N08SF | NPT1 | 1 | 3.66 | 1.77 | 1.88 |
| QKPS 08-10SF | G11/4 | 1 | 103.0 | 50.0 | 55.0 | QKPS 08-N10SF | NPT11/4 | 1 | 4.06 | 1.97 | 2.17 |

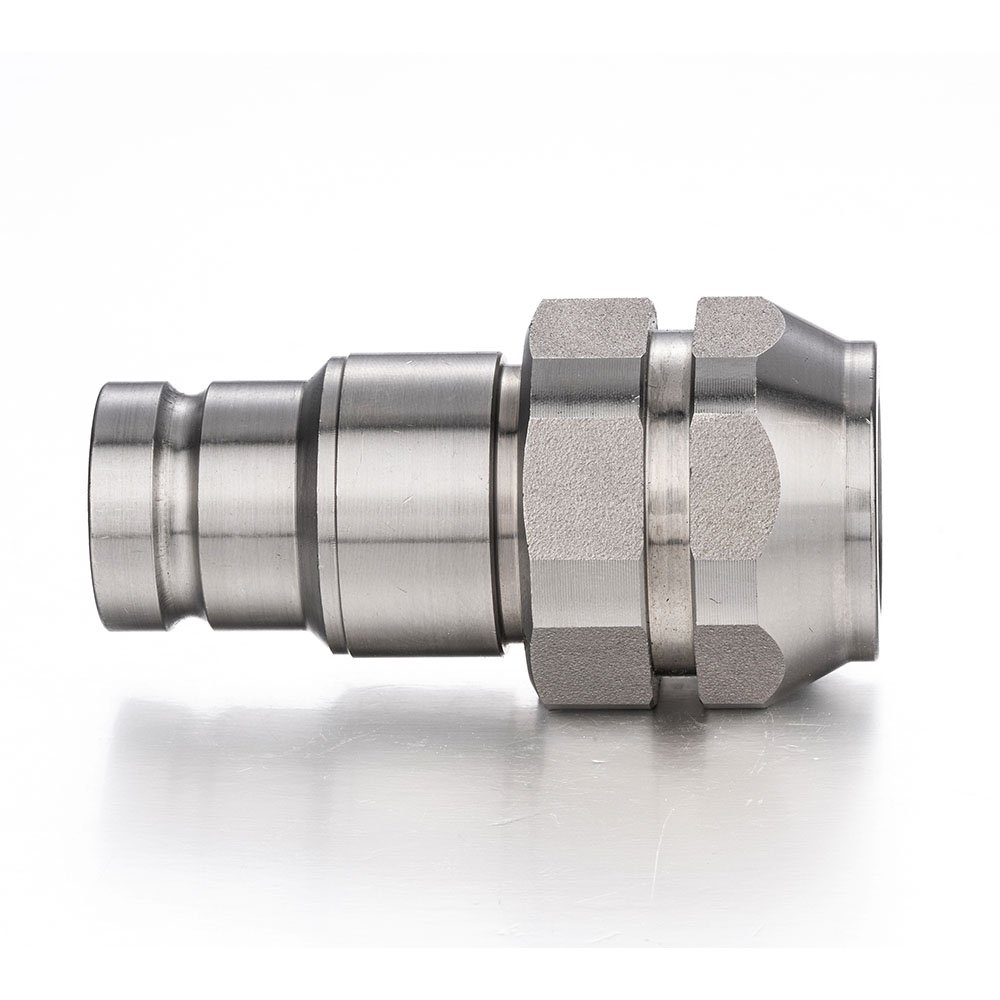

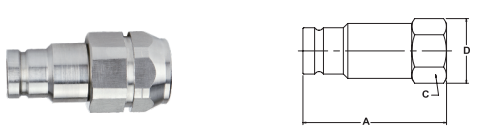

Male
| Part No. | Thread | Size | A | C | D | Part No. | Thread | Size | A | C | D |
| (mm.) | (mm.) | ( mm.) | (in.） | (in.） | (in.） | ||||||
| QKPS 02-02PF | G1/4 | 1/4 | 48.0 | 22.0 | 24.0 | QKPS 02-N02PF | NPT1/4 | 1/4 | 1.88 | 0.86 | 0.94 |
| QKPS 03-03PF | G3/8 | 3/8 | 60.0 | 24.0 | 26.0 | QKPS 03-N03PF | NPT3/8 | 3/8 | 2.36 | 0.94 | 1.02 |
| QKPS 03-04PF | G1/2 | 3/8 | 63.0 | 27.0 | 29.0 | QKPS 03-N04PF | NPT1/2 | 3/8 | 2.48 | 1.06 | 1.14 |
| QKPS 04-04PF | G1/2 | 1/2 | 70.0 | 32.0 | 35.0 | QKPS 04-N04PF | NPT1/2 | 1/2 | 2.77 | 1.25 | 1.37 |
| QKPS 04-06PF | G3/4 | 1/2 | 70.0 | 32.0 | 35.0 | QKPS 04-N06PF | NPT3/4 | 1/2 | 2.77 | 1.25 | 1.37 |
| QKPS 06-06PF | G3/4 | 3/4 | 70.0 | 36.0 | 38.0 | QKPS 06-N06PF | NPT3/4 | 3/4 | 2.77 | 1.41 | 1.51 |
| QKPS 08-08PF | G1 | 1 | 83.0 | 45.0 | 48.0 | QKPS 08-N08PF | NPT1 | 1 | 3.26 | 1.77 | 1.88 |
| QKPS 08-10PF | G11/4 | 1 | 109.0 | 55.0 | 60.0 | QKPS 08-N10PF | NPT11/4 | 1 | 4.29 | 2.17 | 2.36 |
