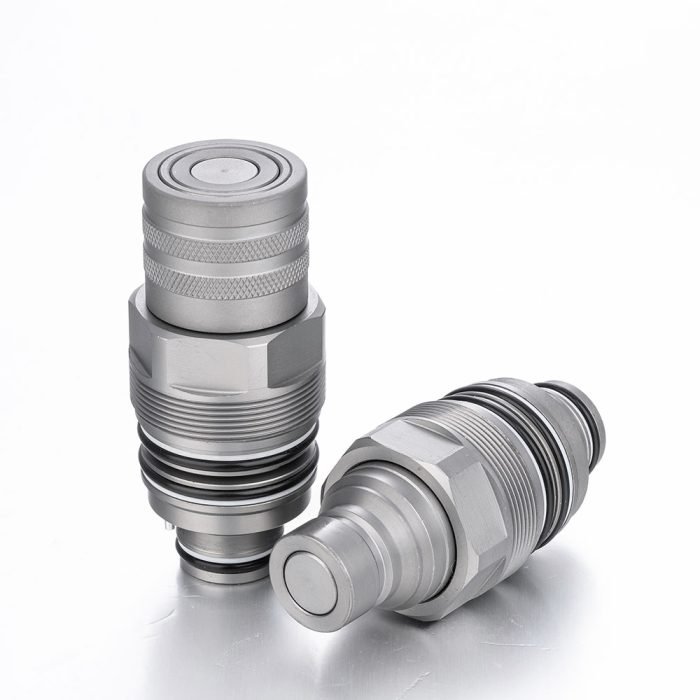

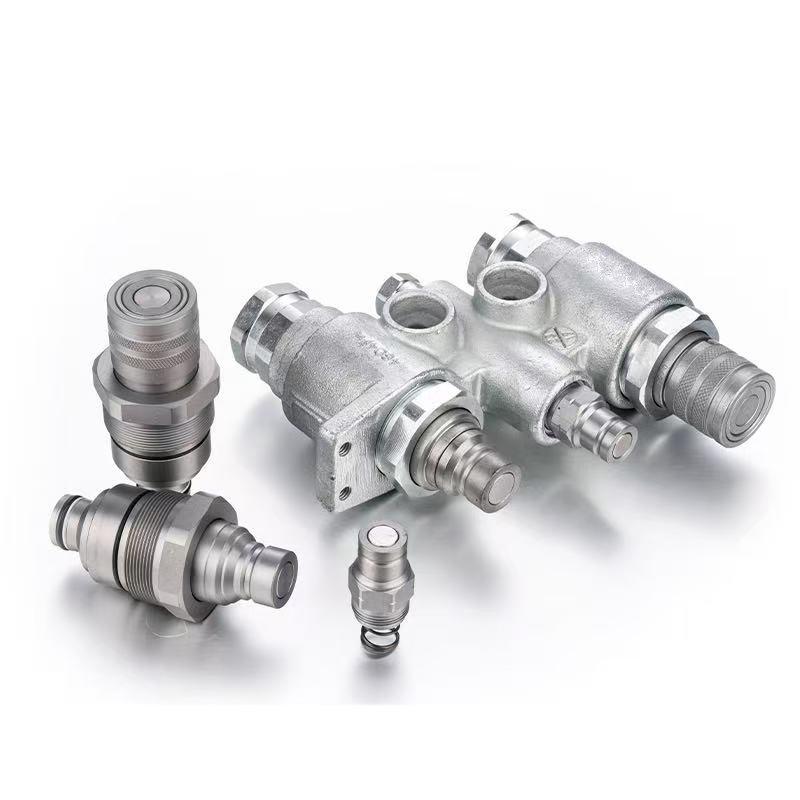

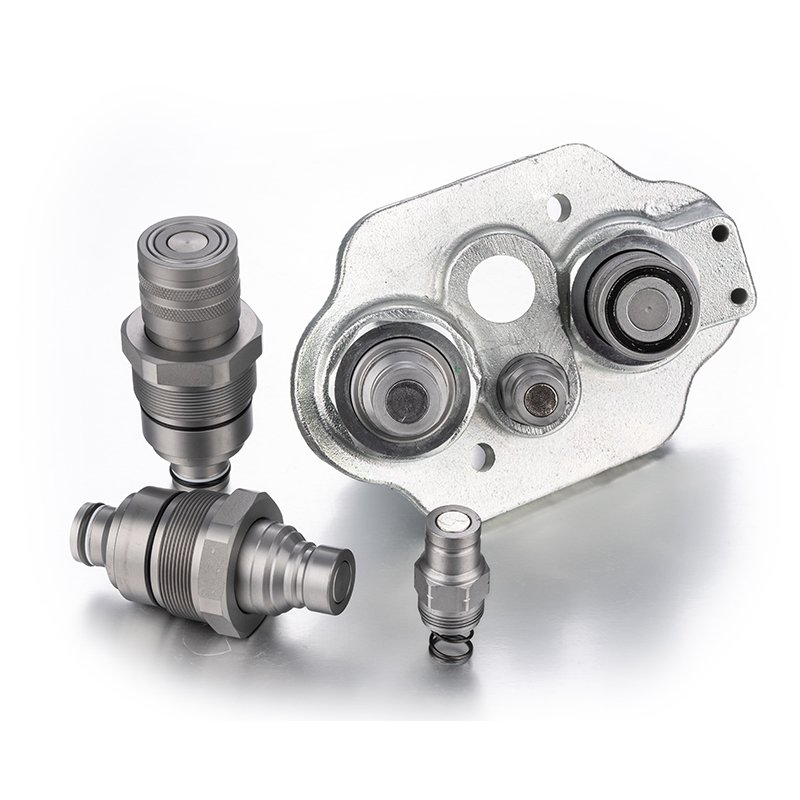

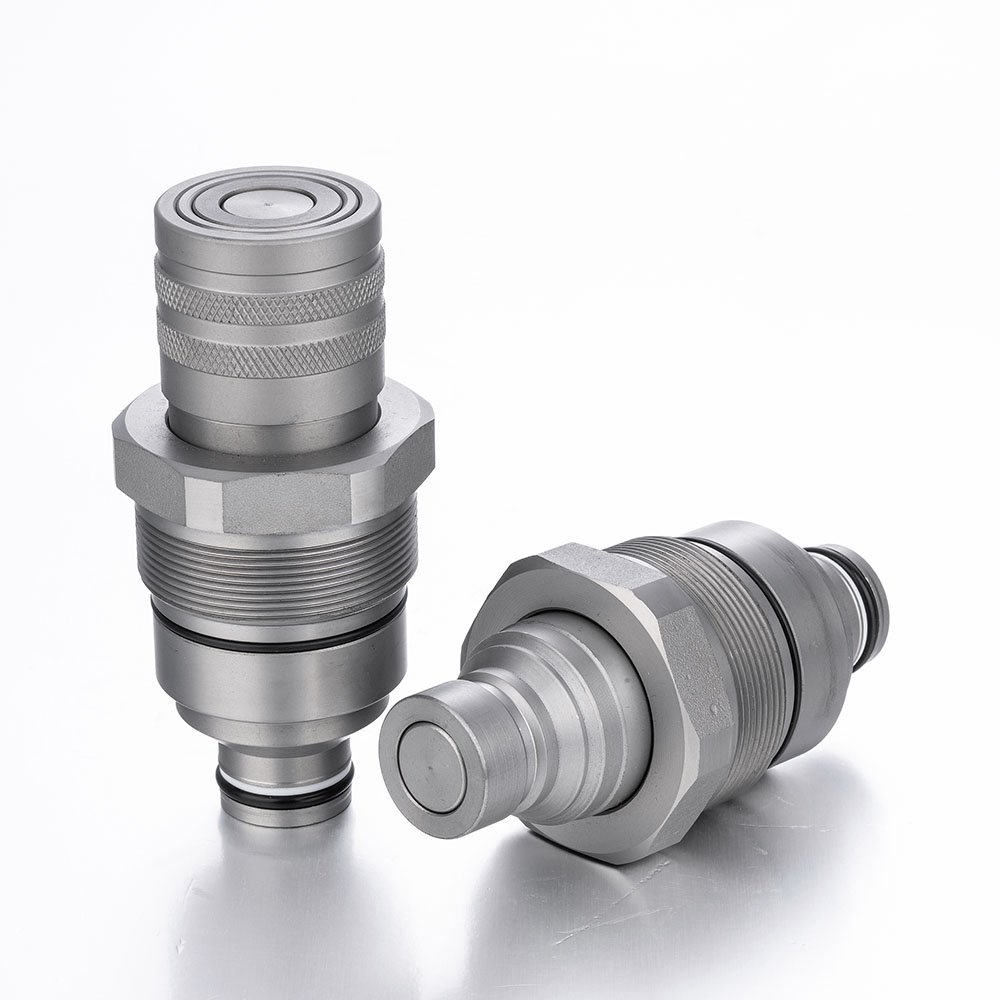

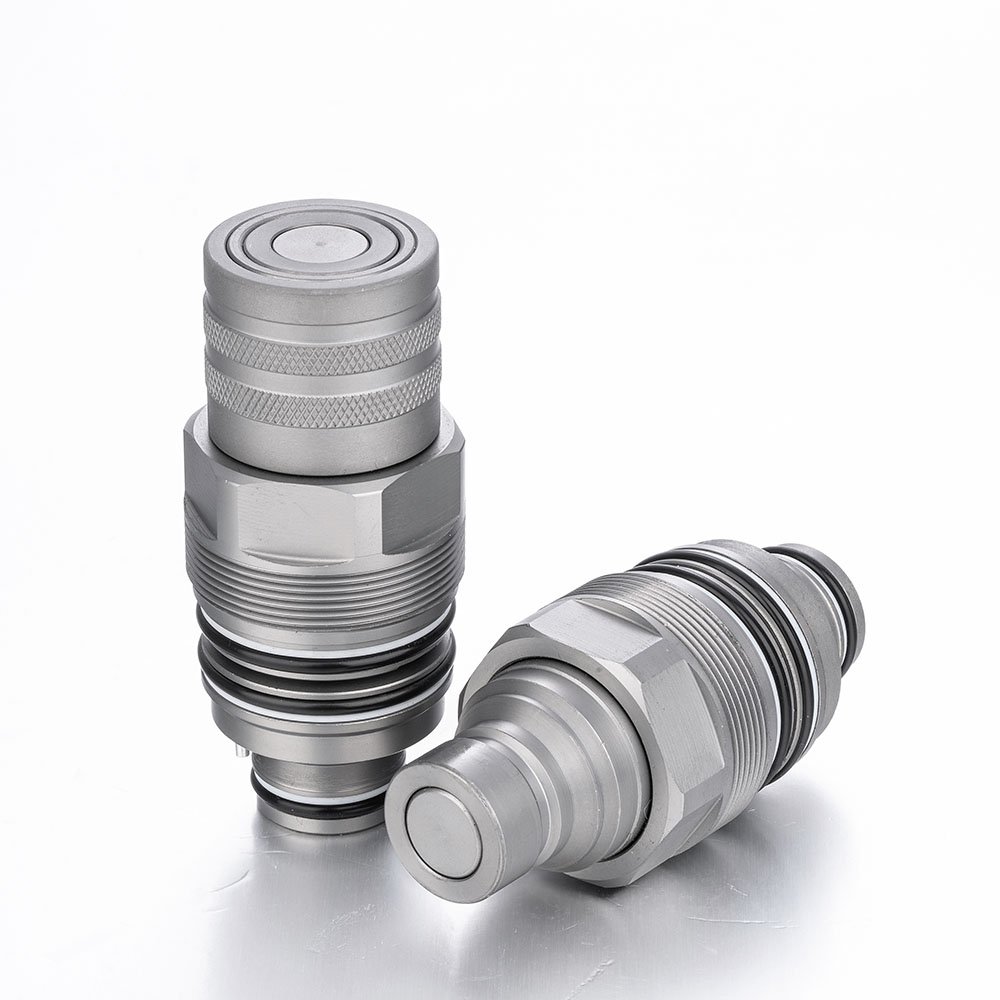

QKPH

Details

Size	Working pressure		Flow Rate	Burst Pressures			Force to connect
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)	N
12.5	1/2”	35(5000)	110(29)	140(20000)	140(20000)	170(24200)	210
19	3/4”	35(5000)	160(42.4)	140(20000)	140(20000)	140(20000)	215

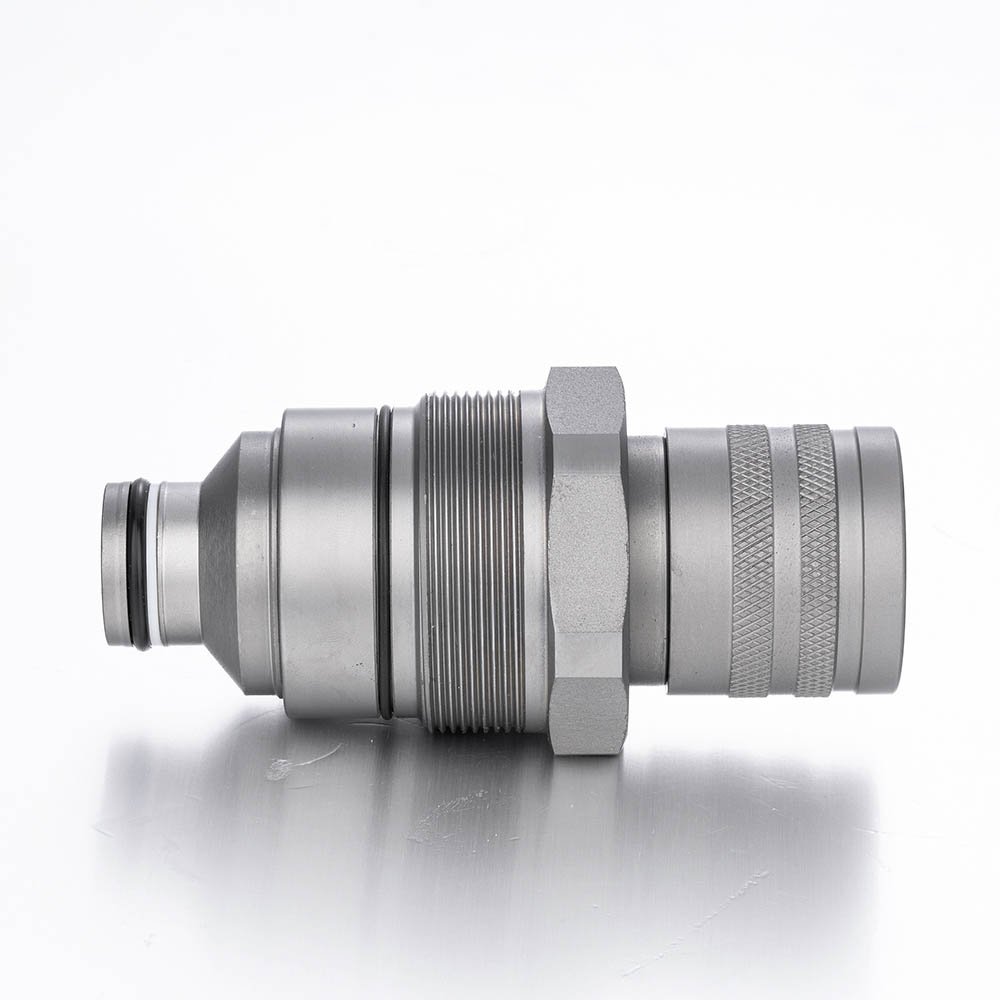

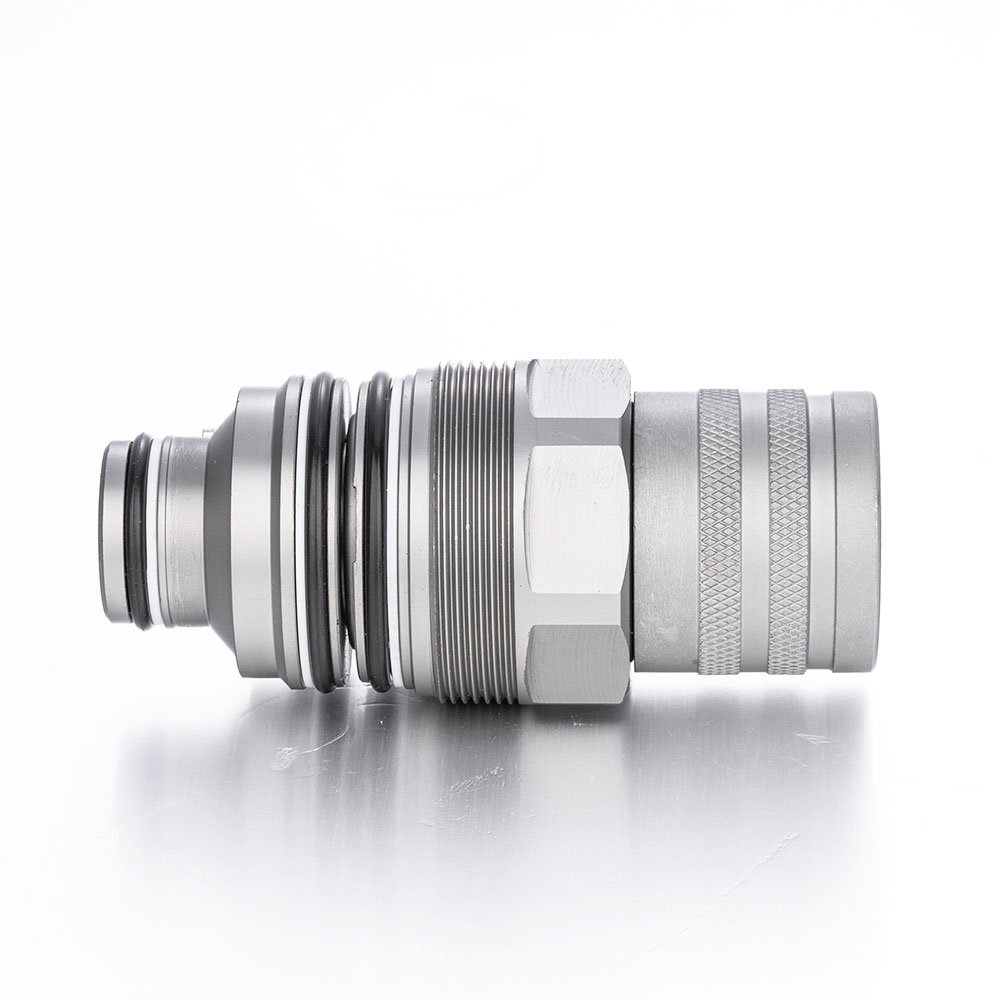

Female

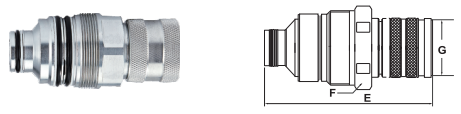

Part No.	Thread	Size	E	F	G
			(mm.)	(mm.)	( mm.)
QKPH 04-04SM	M46x1.5	1/2	102	42	38
QKPH 04-06SM	M46x1.5	1/2	103	50	38

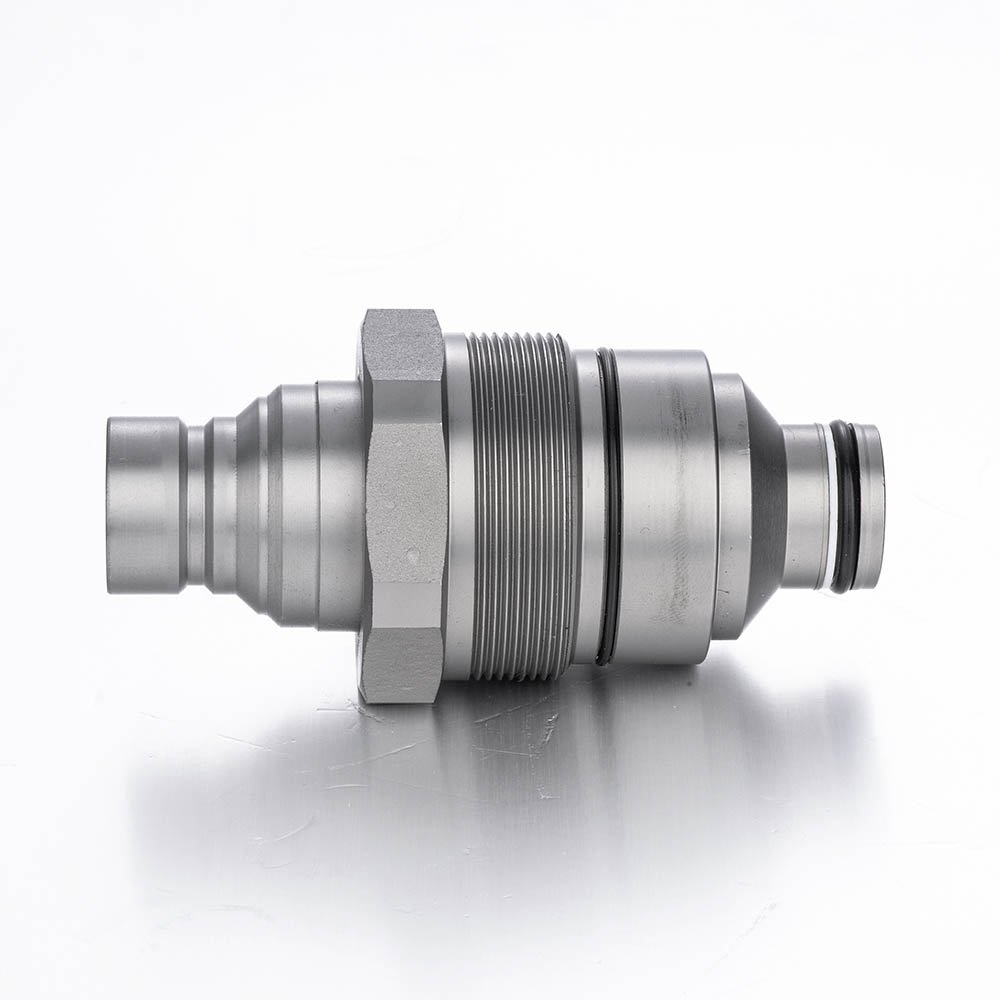

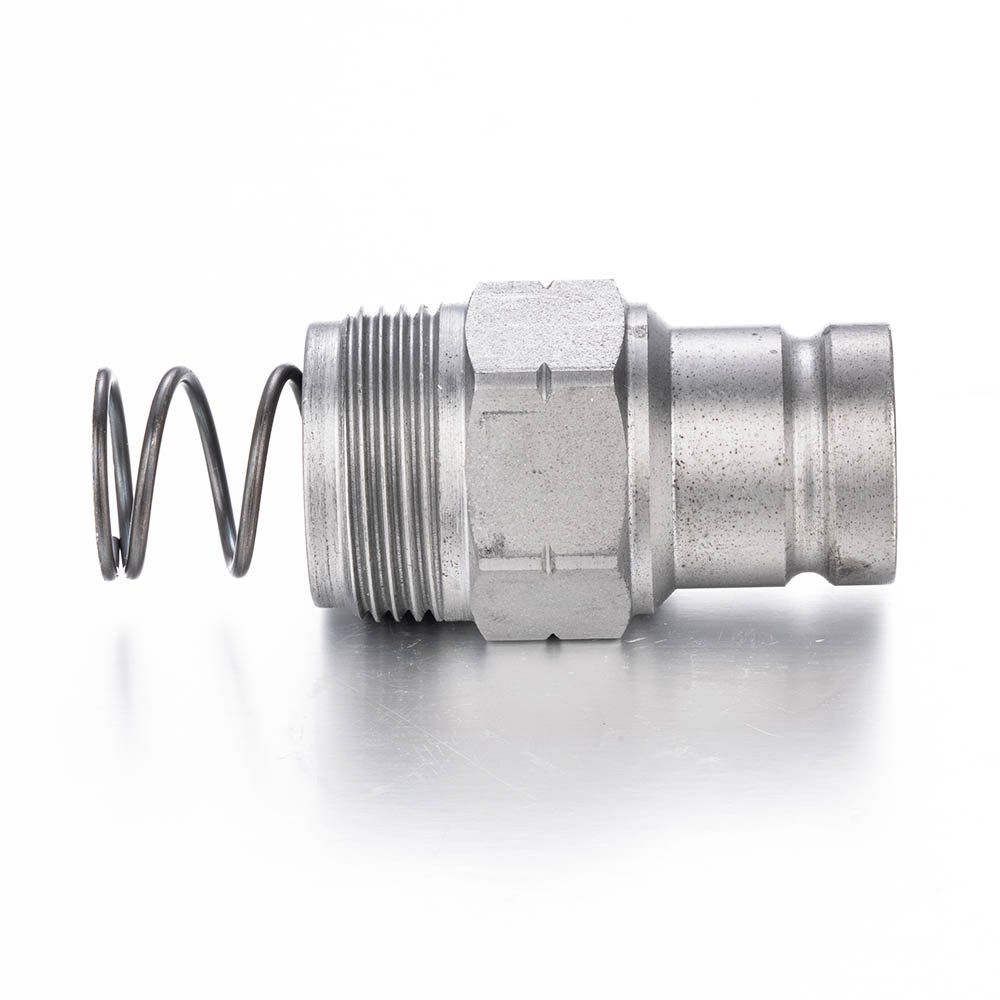

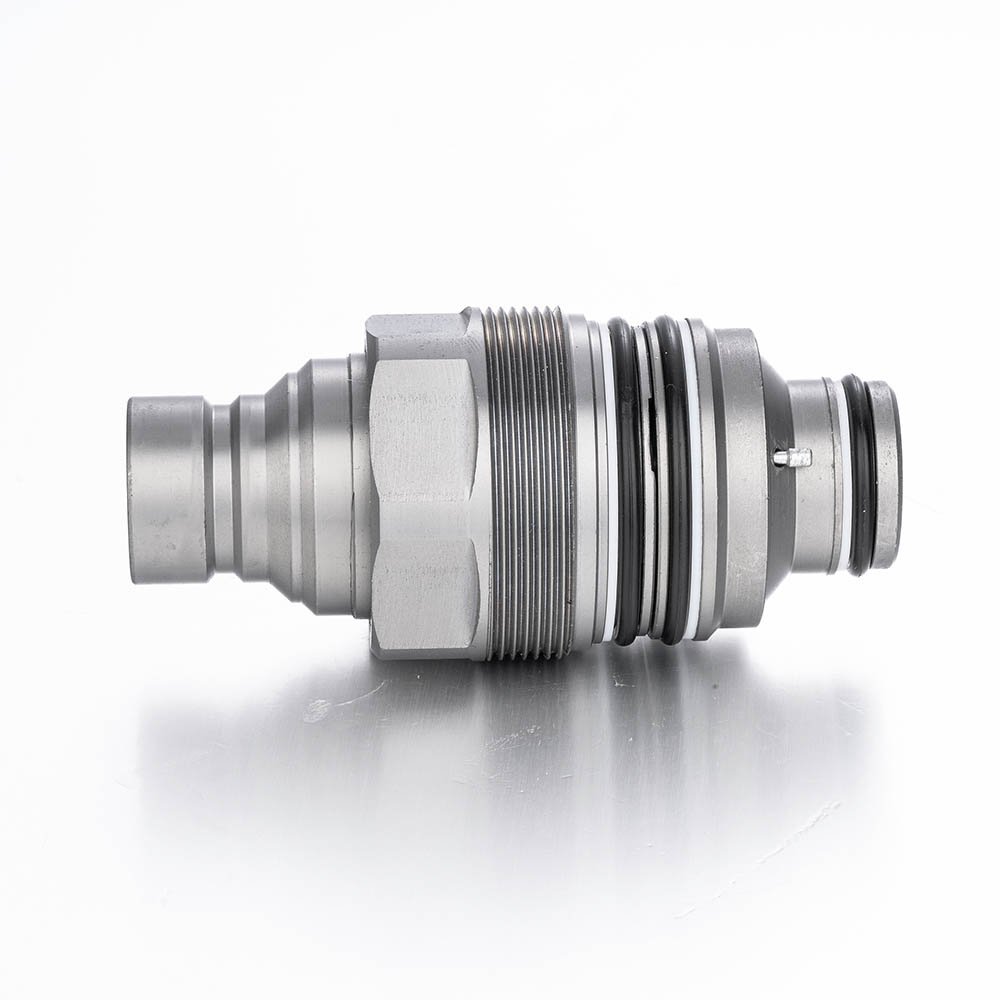

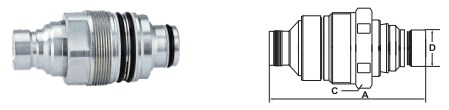

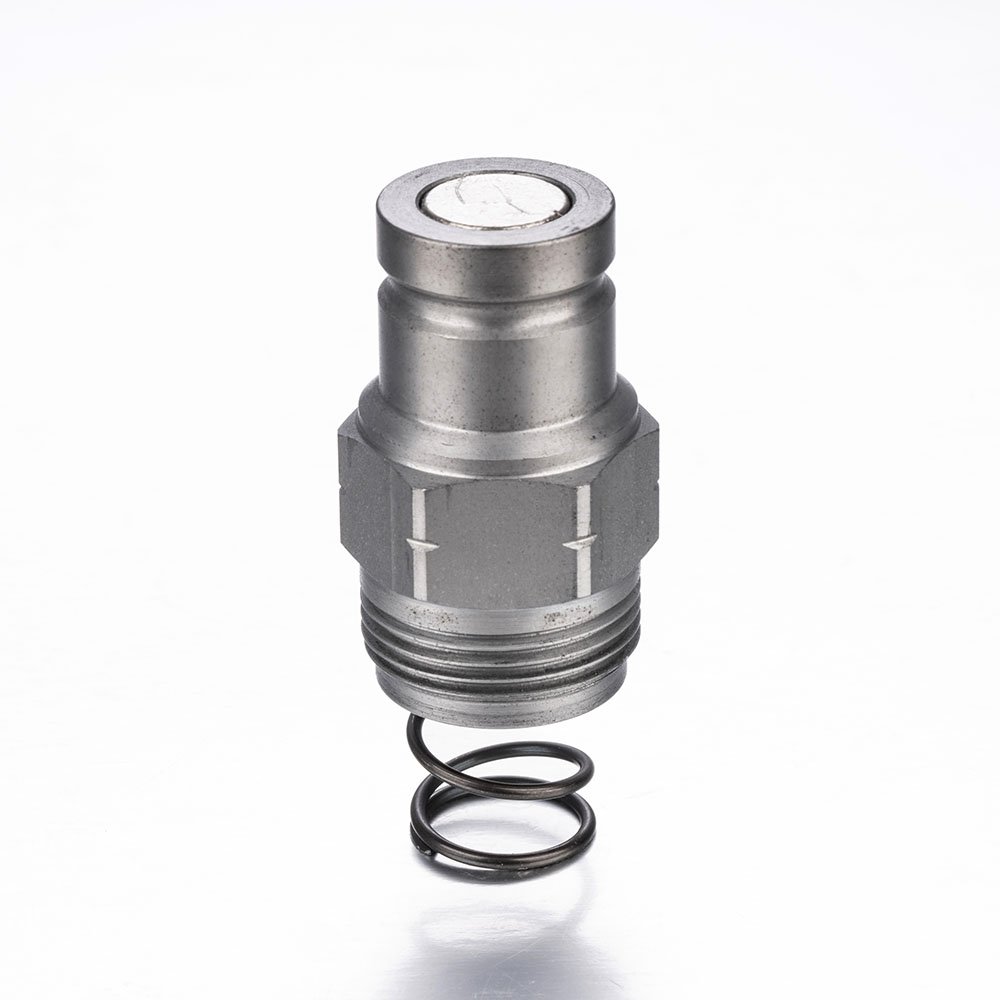

Male

Part No.	Thread	Size	E	F	G
			(mm.)	(mm.)	( mm.)
QKPH 04-04PM	M46x1.5	1/2	99	42	24.7
QKPH 04-06PM	M46x1.5	1/2	100	50	24.7

Features

Connexion by pushing the male coupling
Disconnexion by pulling back the female sleeve
Shut off by flat face valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability according to ISO 16028
No spillage during Connexion and
Disconnexion

Technical Specifcations

High grade carbon steel
tempered or carbonitrited for
specific stressed area
Polyurethane and NBR
Backup ring in PTFE
-25°Cto +100°C
(-13°Fto +212°F)
100.000 cycles at 133% of rated
pressure disconnected
1.000.000 cycles at 133% of
rated
pressure connected.
Tested according to Is0 7241-2
specifications
