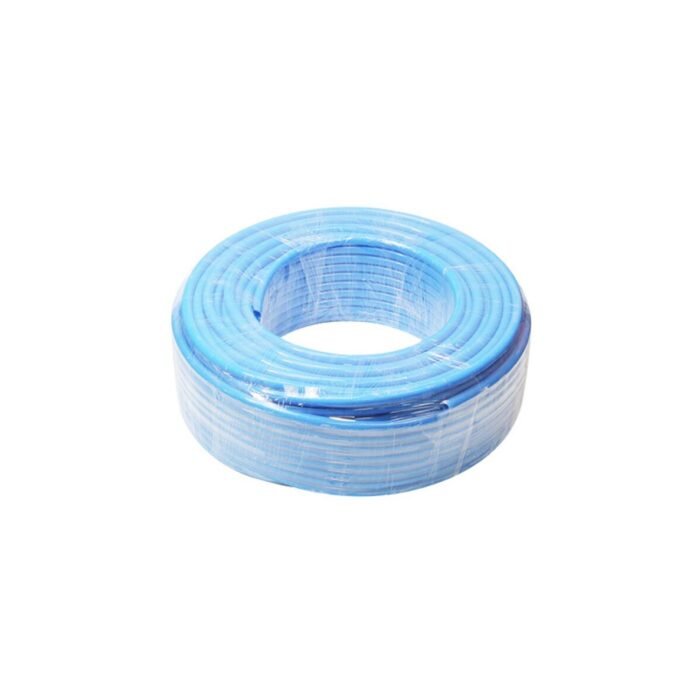

PU Polyurethane Tube
Characteristic
◆ Resists abrasion and impact
◆ Resists oil and many chemicals with no erosive nature
◆ Long working life
◆ Precise size and wall uniform
◆ Application: Industrial automation,pneumatic tools , tube for water,air and vacuum
Specification
| Material | Thermoplastic Polyurethane |
| Applicable medium | Air, Water, Vacuum |
| Embient and fluid temperature | -20℃~+80℃ |
| Hardness Shore A | 95A ASTM D-2240 |
| Tensile strength(kg/cm2) | 600 ASTM D-638 |
| Ultimate elongation(%) | 490~590 ASTM D-638 |
| Taber abrasion(mg) | 30~40 ASTM D-1044 |
| Tear strength(kg/cm2) | 155 ASTM D-732 |

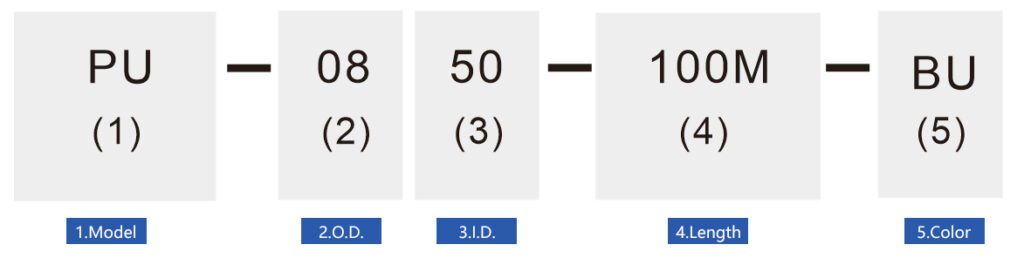

Ordering code
ITEM |
D1 |
D2 |
L |
Net weight（kg/Roll） |
MAX.workingpressureat 20℃（bar） |
Burst.workingpressureat 20℃（bar） |
MAX.bendradiusat 20℃（mm） |
| PU-0320 | 3mm | 2mm | 200m | 1.4kg | 10bar | 30bar | 10mm |
| PU-0425 | 4mm | 2.5mm | 200m | 1.9kg | 10bar | 30bar | 10mm |
| PU-0640 | 6mm | 4mm | 200m | 3.9kg | 10bar | 30bar | 15mm |
| PU-0855 | 8mm | 5.5mm | 100m | 3.3kg | 8bar | 24bar | 20mm |
| PU-0850 | 8mm | 5mm | 100m | 3.8kg | 10bar | 30bar | 30mm |
| PU-1065 | 10mm | 6.5mm | 100m | 5.6kg | 10bar | 30bar | 30mm |
| PU-1280 | 12mm | 8mm | 100m | 7.8kg | 10bar | 30bar | 35mm |
| PU-1410 | 14mm | 10mm | 100m | 9.4kg | 8bar | 24bar | 55mm |
| PU-1612 | 16mm | 12mm | 100m | 11kg | 8bar | 24bar | 65mm |
| PU-5/32 | 3.94mm | 2.5mm | 200m | 1.9kg | 10bar | 30bar | 10mm |
| PU-1/4 | 6.35mm | 4.23mm | 200m | 4.4kg | 10bar | 30bar | 15mm |
| PU-5/16 | 7.94mm | 5mm | 100m | 3.8kg | 10bar | 30bar | 20mm |
| PU-3/8 | 9.52mm | 6.35mm | 100m | 4.9kg | 10bar | 30bar | 30mm |
| PU-1/2 | 12.7mm | 8.46mm | 100m | 8.8kg | 10bar | 30bar | 35mm |
