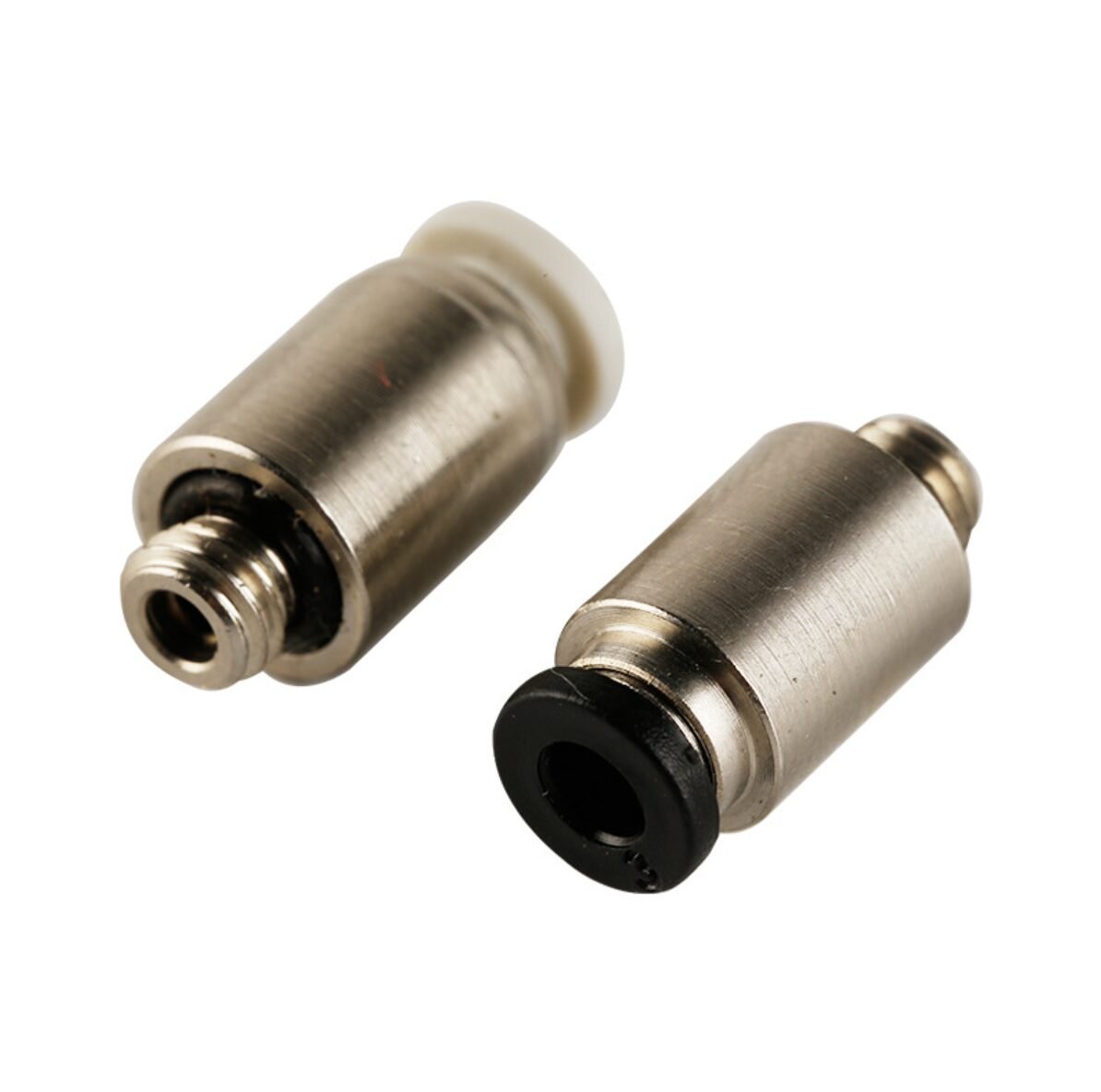

POC-C Round Male Straight Push In Fitting
7 products sold in last 20 hours
Selling fast! 1 person has in their cart
The world’s smallest quick-fitting joints eature 40% smaller volume, Ratio and 20% smaller O.D. ratio in comparison to the conventional type.
The compact type joints, which are nickel plated, are excellent not only in appearance but also in rust resistance.
21 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Details
| MODEL | Tube Size | Thread Size | Description |
| POC 03-M3C | 3mm | M3 | Compact Round Male Straight Push In Fittings 3mm M3 |
| POC 03-M5C | 3mm | M5 | Compact Round Male Straight Push In Fittings 3mm M5 |
| POC 03-M6C | 3mm | M6 | Compact Round Male Straight Push In Fittings 3mm M6 |
| POC 04-M3C | 4mm | M3 | Compact Round Male Straight Push In Fittings 4mm M3 |
| POC 04-M5C | 4mm | M5 | Compact Round Male Straight Push In Fittings 4mm M5 |
| POC 04-M6C | 4mm | M6 | Compact Round Male Straight Push In Fittings 4mm M6 |
| POC 06-M5C | 6mm | M5 | Compact Round Male Straight Push In Fittings 6mm M5 |
| POC 06-M6C | 6mm | M6 | Compact Round Male Straight Push In Fittings 6mm M6 |
| POC 06-01C | 6mm | R1/8″ | Compact Round Male Straight Push In Fittings 6mm R1/8″ |
Features
1. The world’s smallest quick-fitting joints eature 40% smaller volume, Ratio and 20% smaller O.D. ratio in comparison to the conventional type
2. The compact type joints, which are nickel plated, are excellent not only in appearance but also in rust resistance.
3. The elliptical sleeve helps easy applications or removal of the tube in confined space.
Specification
| Fluid | Air, Vaccum | |
| Pressure Range | 0~1.0 MPa | 0~150 PSI |
| Negative Pressure | -100 Kpa(-750Torr) | -29.5 ln Hg |
| Max Pressure | 1.5 Mpa | 250PSI |
| Temperature Range | 0 ~ 60 ℃ | 32~140F |
| Applicable Tube | PU (Polyurethane) | PA (Nylon) |
Application
1. Compact type One-touch joints used in small type pneumatic piping.
2. Used for a wide variety of modes to meet all needs.
