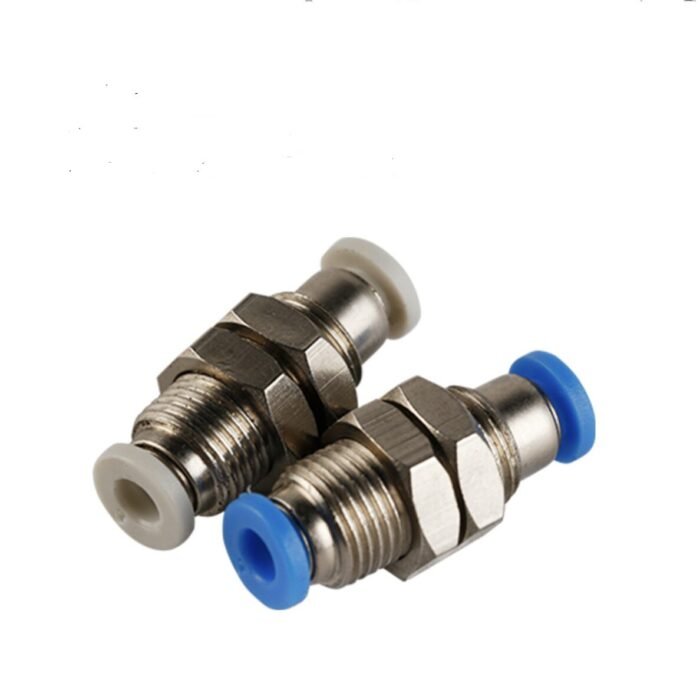

PMM-C Bulkhead Union Bulkhead
7 products sold in last 5 hours
Selling fast! Over 13 people have in their cart
The world’s smallest quick-fitting joints eature 40% smaller volume, Ratio and 20% smaller O.D. ratio in comparison to the conventional type.
The compact type joints, which are nickel plated, are excellent not only in appearance but also in rust resistance.
21 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Details
| MODEL | Tube Size | Tube Size | Description |
| PMM 03C | 3mm | 3mm | Compact Bulkhead Union One Touch Fittings 3mm |
| PMM 04C | 4mm | 4mm | Compact Bulkhead Union One Touch Fittings 4mm |
| PMM 06C | 6mm | 6mm | Compact Bulkhead Union One Touch Fittings 6mm |
Features
1. The world’s smallest quick-fitting joints eature 40% smaller volume, Ratio and 20% smaller O.D. ratio in comparison to the conventional type
2. The compact type joints, which are nickel plated, are excellent not only in appearance but also in rust resistance.
3. The elliptical sleeve helps easy applications or removal of the tube in confined space.
Specification
| Fluid | Air, Vaccum | |
| Pressure Range | 0~1.0 MPa | 0~150 PSI |
| Negative Pressure | -100 Kpa(-750Torr) | -29.5 ln Hg |
| Max Pressure | 1.5 Mpa | 250PSI |
| Temperature Range | 0 ~ 60 ℃ | 32~140F |
| Applicable Tube | PU (Polyurethane) | PA (Nylon) |
Application
1. Compact type One-touch joints used in small type pneumatic piping.
2. Used for a wide variety of modes to meet all needs.
