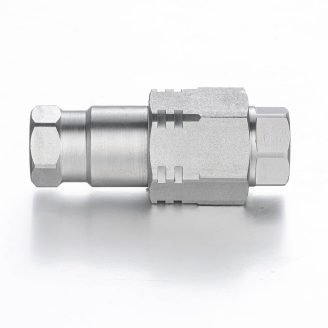

Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
6.3	1/4″	15(2175)	16(4.2)	45(6525)	45(6525)	45(6525)
10	3/8″	15(2175)	25(6.6)	45(6525)	45(6525)	45(6525)
12.5	1/2″	15(2175)	60(15.9)	45(6525)	45(6525)	45(6525)

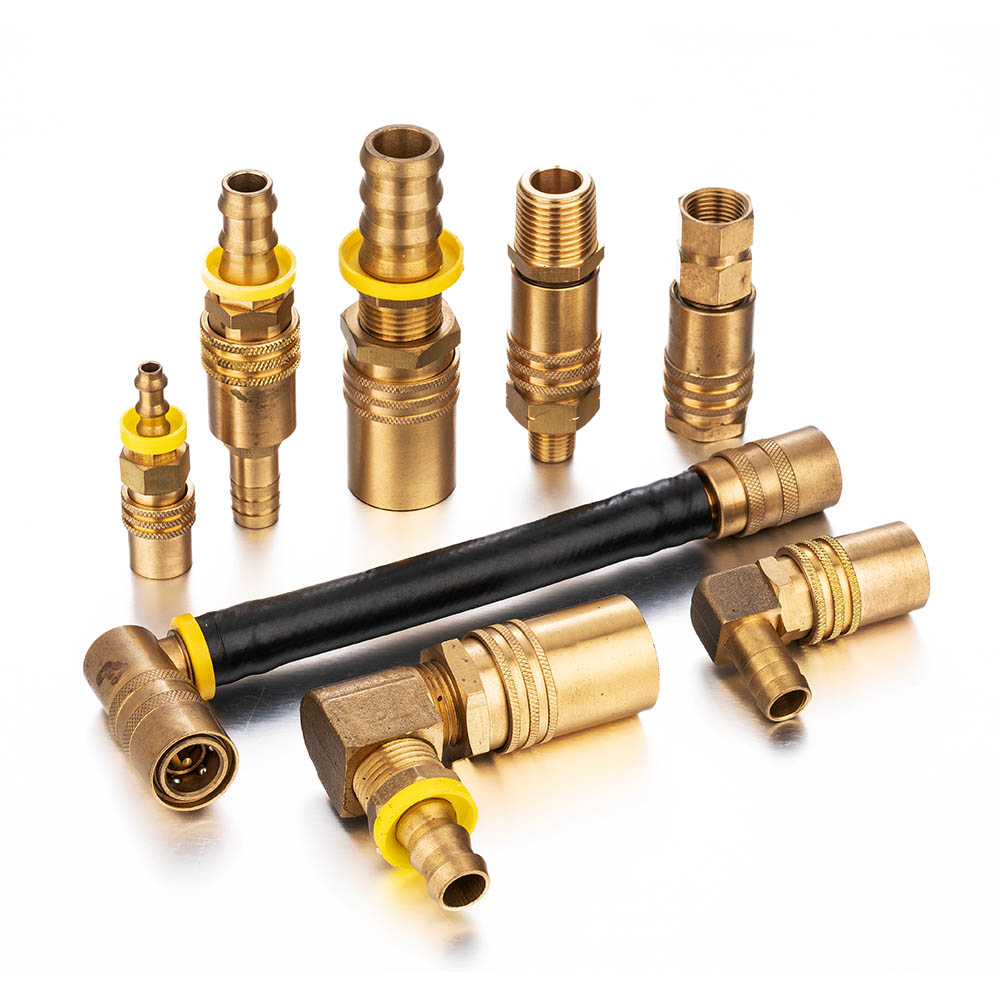

Couplers Straight

Part No.	Hose I.d	A	B	(in.)
PC204	1/4	2.10	0.62	0.71
PC205	5/16	2.10	0.62	0.71
PC206	3/8	2.10	0.62	0.71
PC306	3/8	3.01	0.88	0.96
PC308	1/2	3.15	0.88	0.96
PC504	1/2	3.55	1.12	1.30
PC506	3/4	3.80	1.12	1.21

45 Degree

Part No.	Hose I.d	A	B	(in.)
PC224	1/4	2.67	0.56	0.71
PC225	5/16	2.69	0.56	0.71
PC226	3/8	2.71	0.56	0.71
PC326	3/8	3.65	0.88	0.96
PC328	1/2	3.69	0.88	0.96
PC524	1/2	4.18	1.12	1.30
PC526	3/4	4.56	1.12	1.21

90 Degree

Part No.	Hose I.d	A	B	(in.)
PC214	1/4	1.78	0.56	0.71
PC215	5/16	1.78	0.56	0.71
PC216	3/8	1.78	0.56	0.71
PC316	3/8	2.78	0.88	0.96
PC318	1/2	2.78	0.88	0.96
PC514	1/2	3.50	1.12	1.30
PC516	3/4	3.50	1.12	1.21

Sub Assemblies

Part No.	Thread	A	B	(in.)
PC200	1/8	1/8	1.15	0.56
PC300	1/4 3/8	1/4	1.84	0.88
PC500	1/2	1/2	2.02	1.12

Nipples
Female Pipe Thread

Part No.	Thread	D	E	F	(in.)
MP251F	1/8	0.97	0.58	0.58	0.50
MP252F	1/4	1.28	0.89	0.72	0.63
MP253F	3/8	1.41	1.02	0.87	0.75
MP352F	1/4	1.48	0.88	0.72	0.63
MP353F	3/8	1.58	0.98	0.87	0.75
MP354F	1/2
MP356F	3/4

Male Pipe Thread

Part No.	Thread NPT	D (in.)	E (in.)	F (in.)	(in.)	A (in.)	B in.)
PN251	1/8	0.94	0.54	0.44	0.51	0.69	0.69
PN252	1/4	1.13	0.74	0.56	0.67	0.84	0.94
PN253	3/8	1.19	0.79	0.69	0.79	1.00	0.94
PN352	1/4	1.34	0.74	0.56	0.65	1.00	1.09
PN353	3/8	1.38	0.78	0.69	0.59	1.00	1.13
PN354	1/2	1.59	0.99	0.88	1.01	1.19	1.25
PN554	1/2	1.69	0.92	0.88	1.01	1.25	1.50
PN556	3/4	1.75	0.99	1.12	1.30	1.50	1.56

Sub Assemblies

Part No.	Thread NPT	(in.)	B (in.)
PC200V	1/8	1.15	0.56	0.71
PC300V	1/4	1.84	0.88	0.96

Pipe Thread

Part No.	Thread NPT	D (in.)	E (in.)	F (in.)	(in.)
PN252V	1/4	1.13	0.74	0.56	0.67
PN352V	1/4	1.34	0.74	0.56	0.65
PN353V	3/8	1.38	0.78	0.69	0.59

Features

Connexion by pulling back the sleeve
Disconnexion by pulling back the female sleeve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability Us Market
