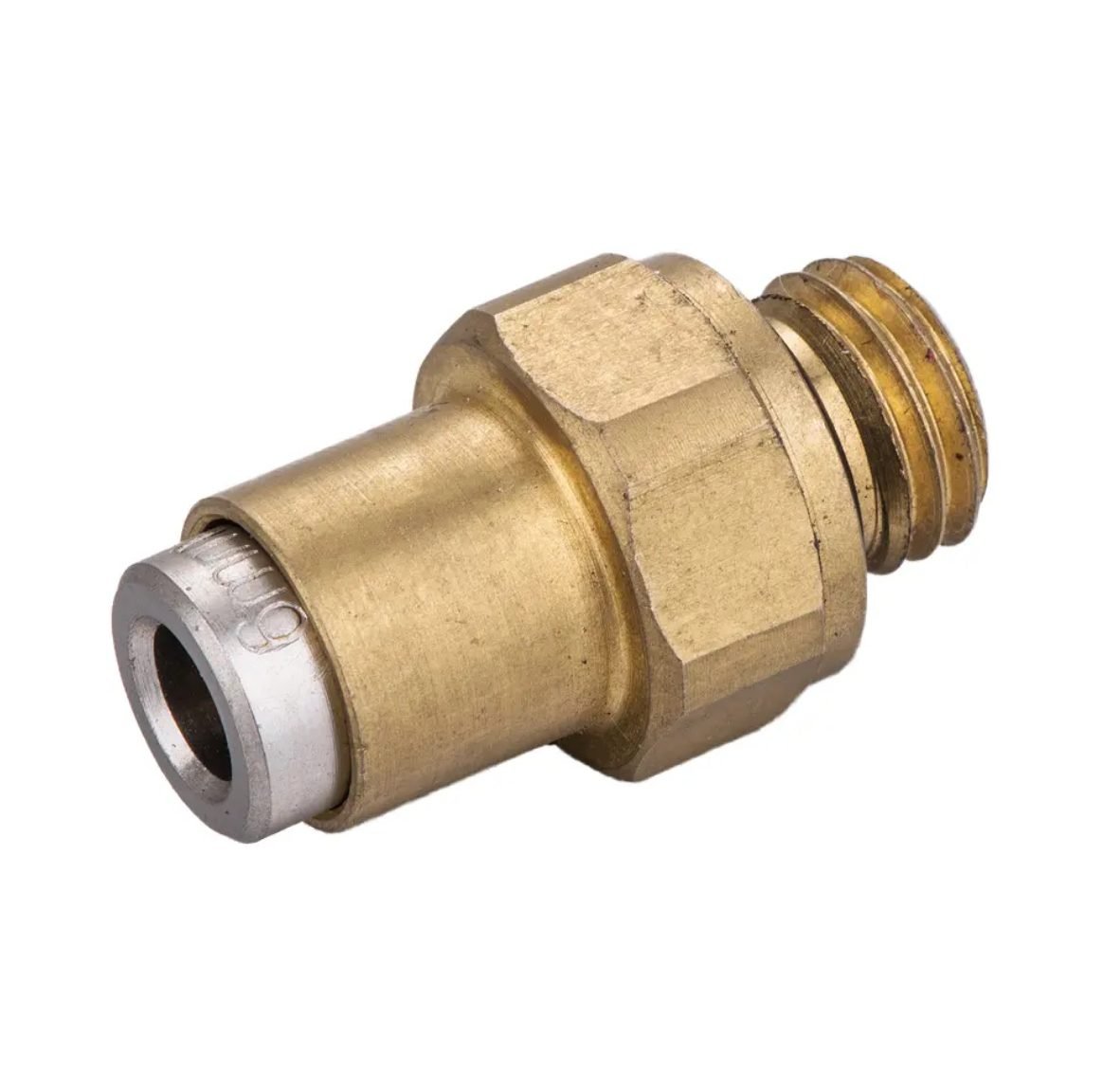

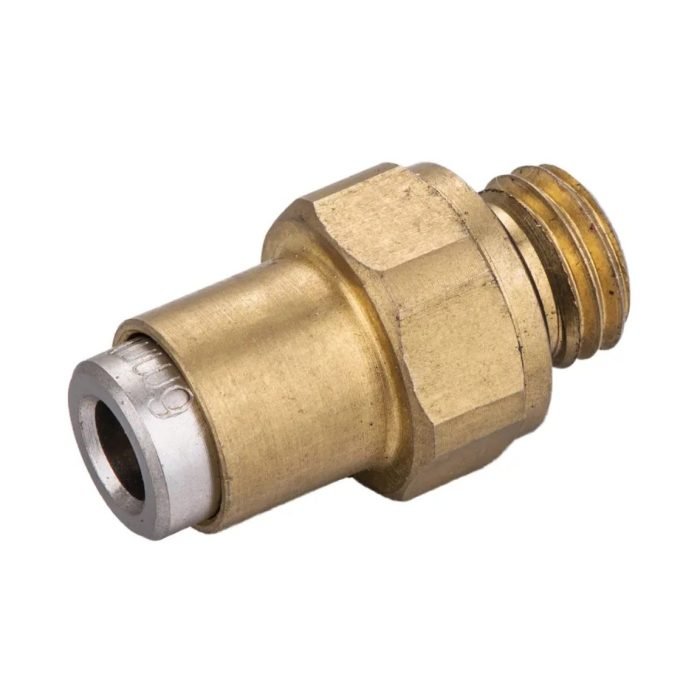

NPC Straight adaptormetric thread

18 products sold in last 4 hours

Selling fast! Over 10 people have in their cart

21 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Details

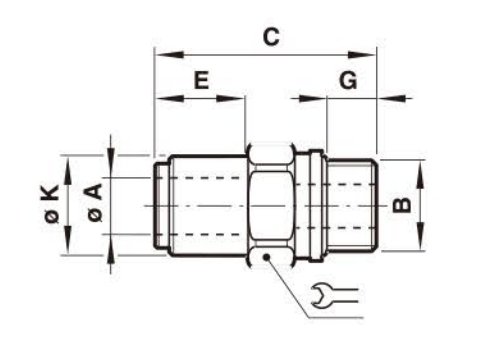

0/D Tube							Model
A	B	C	E	G	øK	Tools
6	M10x1.0	28.5	13.5	8.0	13.0	14	NPC6 M10x1.0
6	M12x1.5	30.5	11.5	10.0	13.0	17	NPC6 M12x1.5
6	M14x1.5	31.5	13.5	10.0	13.0	19	NPC6 M14x1.5
6	M16x1.5	27.5	7.5	10.0	13.0	22	NPC6 M16x1.5
6	M22×1.5	30.5	5.0	12.0	13.0	27	NPC6 M22x1.5
8	M10x1.0	29.5	12.5	8.0	15.0	17	NPC8 M10x1.0
8	M12×1.5	31.5	12.5	10.0	15.0	17	NPC8 M12×1.5
8	M14x1.5	31.5	13.5	10.0	15.0	19	NPC8 M14×1.5
8	M16x1.5	31.5	11.5	10.0	15.0	22	NPC8 M16×1.5
8	M22x1.5	30.5	15.0	12.0	15.0	27	NPC8 M22×1.5
10	M10x1.0	33.0	16.0	8.0	17.0	17	NPC10 M10×1.0
10	M12×1.5	35.0	16.0	10.0	17.0	17	NPC10 M12x1.5
10	M14×1.5	5.0	15.0	10.0	17.0	19	NPC10 M14×1.5
10	M16×1.5	35.0	15.0	10.0	17.0	22	NPC10 M16×1.5
10	M22x1.5	31.0	5.5	12.0	17.0	27	NPC10 M22×1.5
12	M12×1.5	38.5	18.5	10.0	20.5	22	NPC12 M12x1.5
12	M14x1.5	38.5	18.5	10.0	20.5	22	NPC12 M14×1.5
12	M16x1.5	39.0	19.0	10.0	20.5	22	NPC12 M16x1.5
12	M22x1.5	35.0	9.5	12.0	20.5	27	NPC12 M22x1.5
15	M22x1.5	45.0	19.5	12.0	26.0	27	NPC15 M22×1.5
16	M16x1.5	42.5	19.5	10.0	26.0	27	NPC16 M16x1.5
16	M22x1.5	44.5	19.5	12.0	26.0	27	NPC16 M22x1.5
18	M22×1.5	44.5	18.5	12.0	29.0	30	NPC18 M22×1.5

Features

1. The main body is made of stainless steel material, which has better strength and rigidity, and strong corrosion resistance.

2. The sealing ring is made of fluoro rubber (FKM), which has certain resistance to chemical corrosion, acid and alkali, and can withstand high temperatures.

3. Compliant with ROHS standards.

4. Widely used in industries such as new energy, food and chemical industry.

Fast Installation

To connect tube:

Cut the plastic tubing as squarely as possible. Insert the tube into the fitting until you feel the friction as the tube slides past the O-ring.(Using a slight twisting motion while inserting the tube often helps.)Once you feel this friction, continue to push the tube inward until it bottoms firmly against the internal tube stop.

To disconnect tube:

With thumb and forefinger, hold the top of the insert down against the fitting body and, with the other hand, pull out the tubing. No tools are needed.

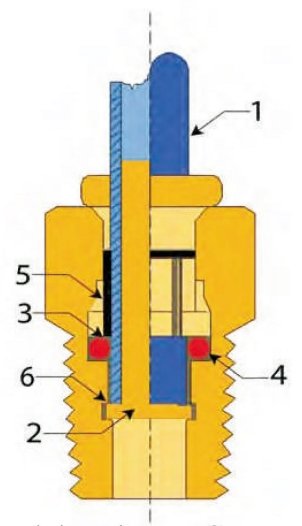

Structure Chart

When tubing (1) is inserted into the fitting, the inside diameter passes over the brass tube support (2). This, combined with the action of the gripper, insures that the air brake hose assembly will safely exceed the tensile requirements of FMVSS-106. The tubing then passes through the gripping teeth (3). The tubing continues beyond the gripping teeth through the inside diameter of the lubricated “0” ring (4) which seals on the outside diameter of the tubing. The gripping teeth grab the tube. Pulling back on the tube only tightens the grip on the tubing as the insert moves onto the camming surface (5). Pressure through the tube also serves to tighten the grip, The tube bottoms against a positive tube stop (6) in a cavity which keeps tube round to prevent leakage.
