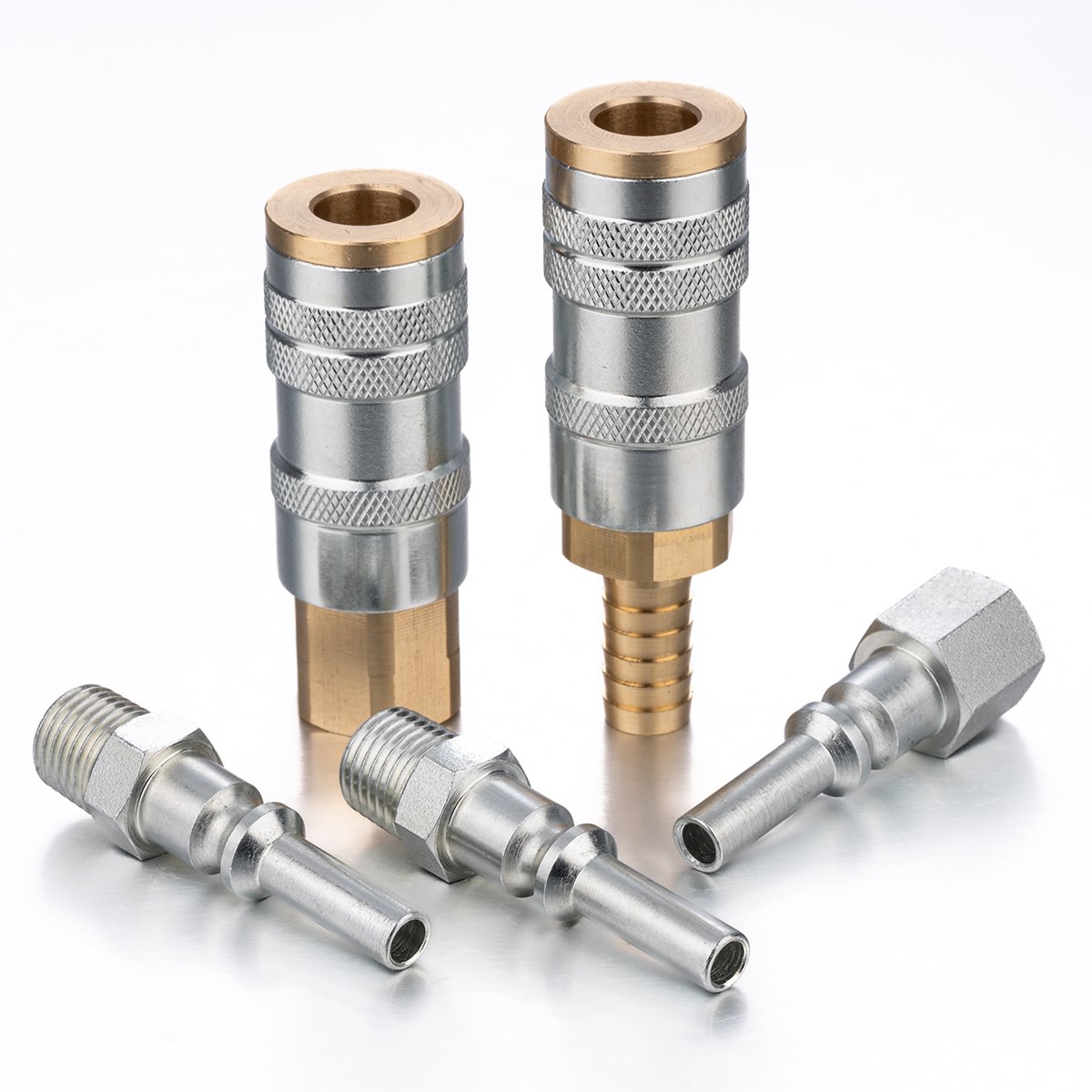

L Series Pneumatic Quick Coupler
Application & Characteristics
Features
“L” Series couplings are interchangeable with Lincoln’sLong Stem” series couplings
“L” Series couplings have a full opening tubular valve formaximum flow and a built-in sleeve guard to minimize accidental disconnect.
The”L” Series is only available in 1/4″ body size.
“L” Series couplings have all brass bodies and steelvalves.
Standard seal material is Buna-N(Nitrile).See the Coupling Selection and Ordering Information Guide at the beginning of Section A and the Fluid Compatibility Chart at the end of this catalog foroptional materials.
Specifications
Body Size：1/4
Rated Pressure(PSl)：300
Temperature Range(Nitrile seal)：-40°to +250°F
Locking Device：Locking pin
Drawings & Specifications

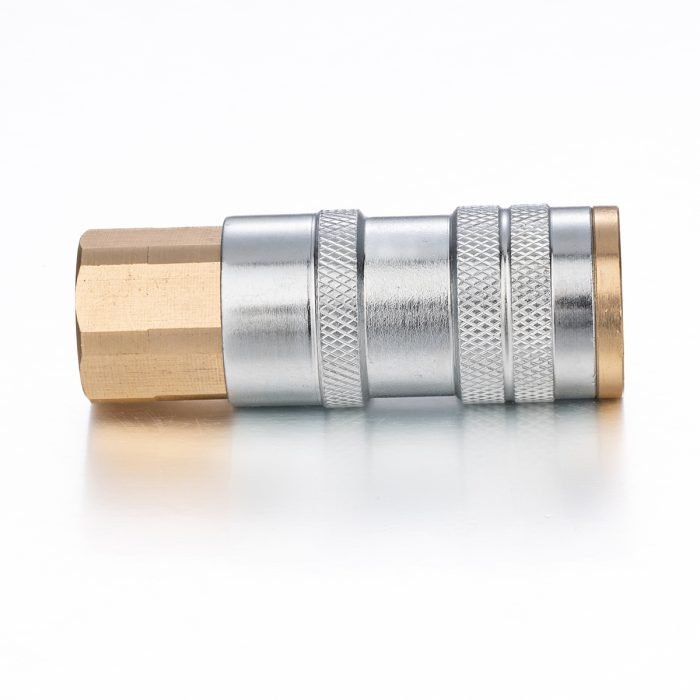

| Part No订货号Brass铜 | Body Size规格(in.) | Thread 螺纹 NPT | A(in.) | B(in.) | C(in.) |

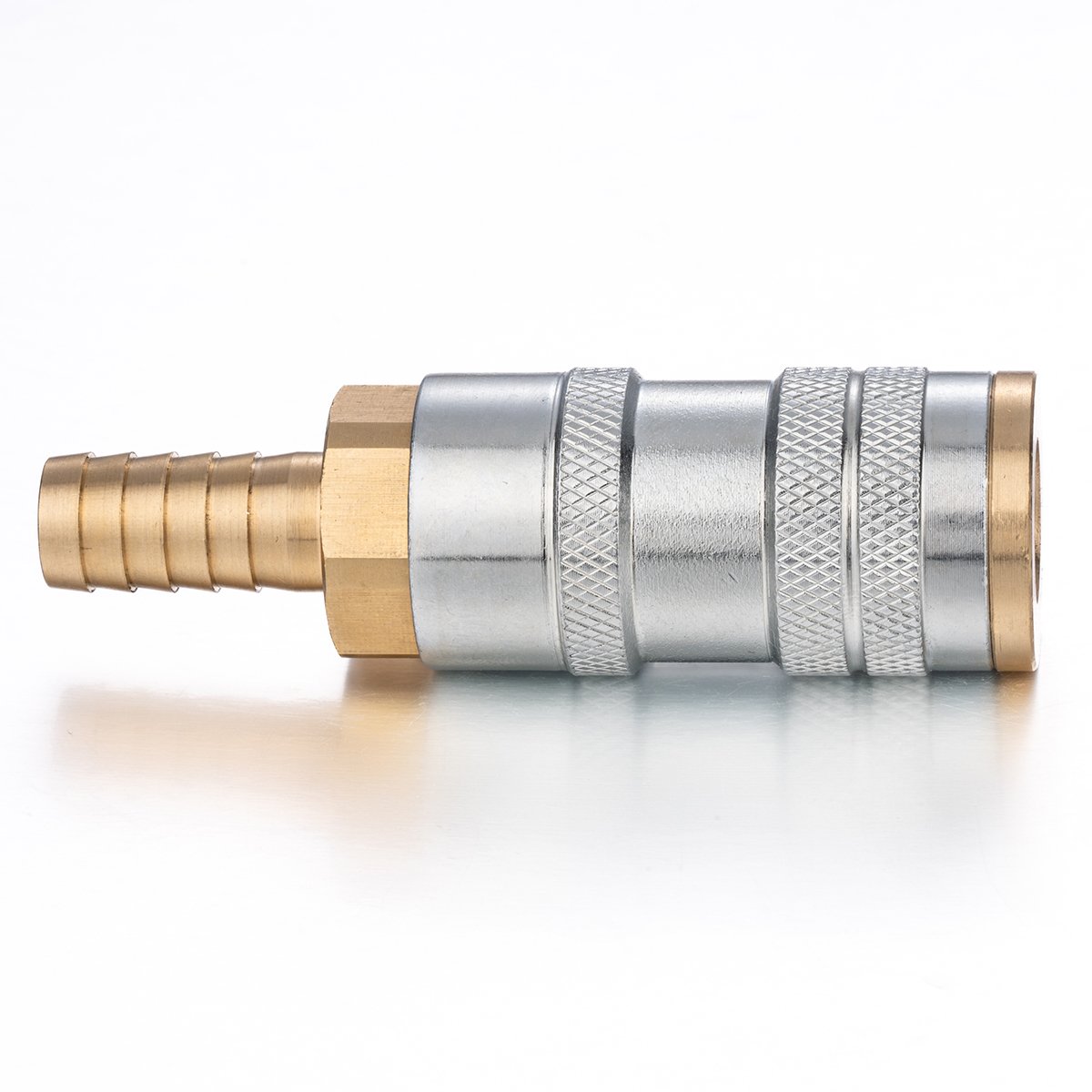

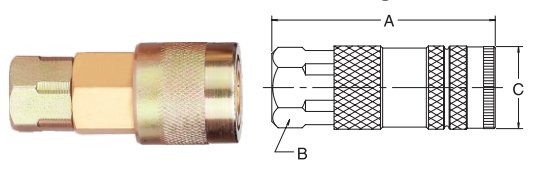

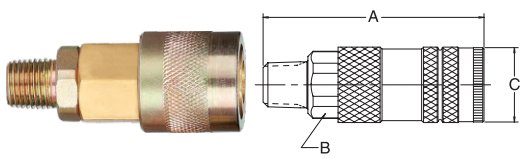

| LSF2-N02 | 1/4 | 1/4-18 | 2.39 | 0.75 | 0.88 |
| Part No订货号Brass铜 | Body Size规格(in.) | Thread 螺纹 NPT | A(in.) | B(in.) | C(in.) |
| LSM-N02 | 1/4 | 1/4-18 | 2.61 | 0.75 | 0.88 |

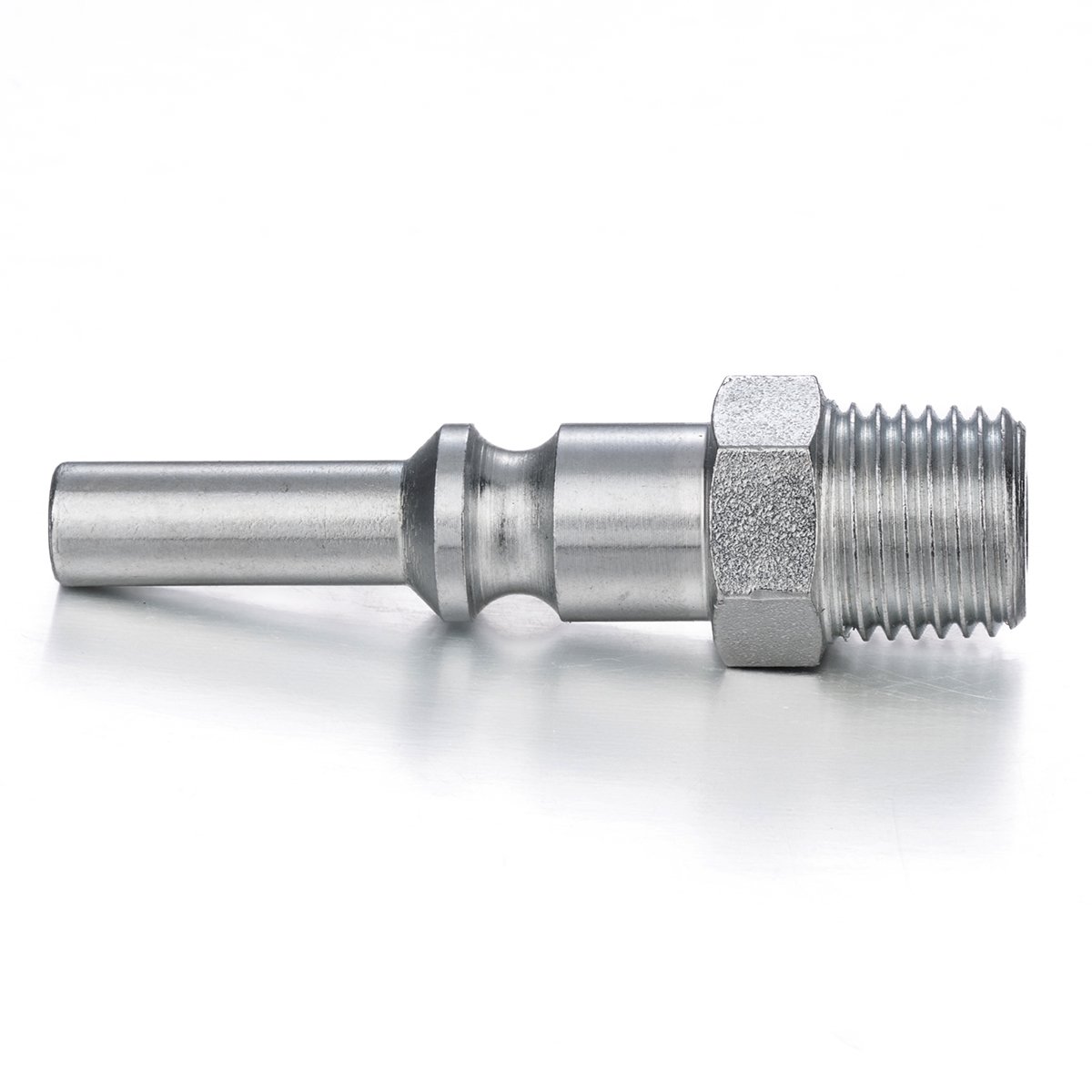

| PartNo订货号Steel碳钢 | Body Size规格(in.) | Thread 螺纹 NPT | D(in.) | E(in.) | F(in.) | G(in.) |

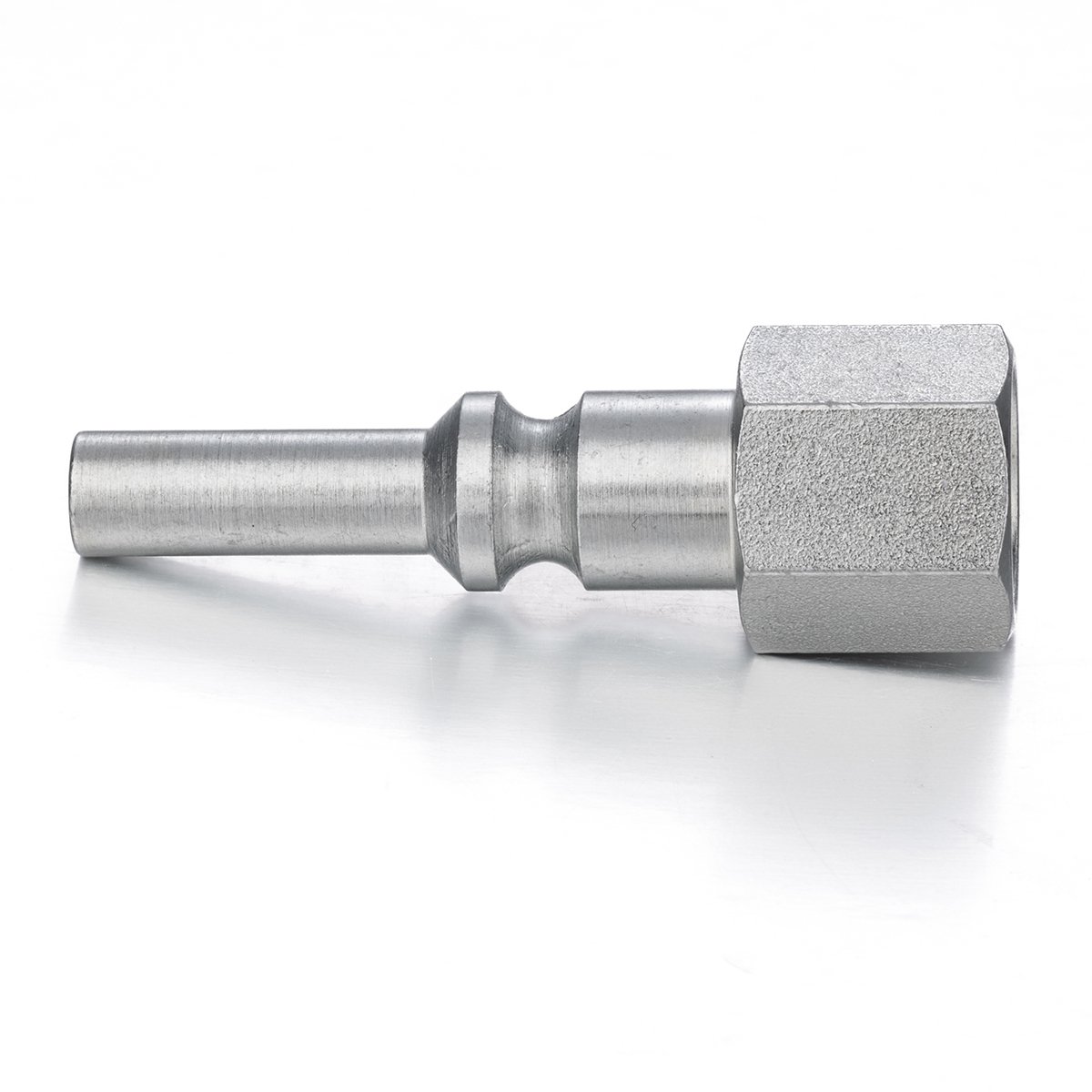

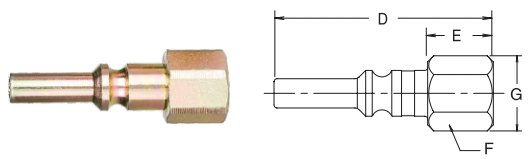

| LPF-N02 | 1/4 | 1/4-18 | 3.1 | 0.77 | 0.62 | 0.72 |
| PartNo订货号Steel碳钢 | Body Size规格(in.) | Thread 螺纹 NPT | D(in.) | E(in.) | F(in.) | G(in.) |

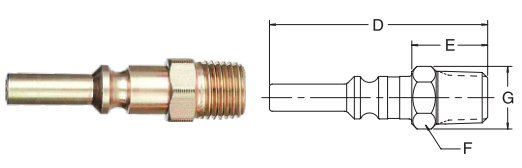

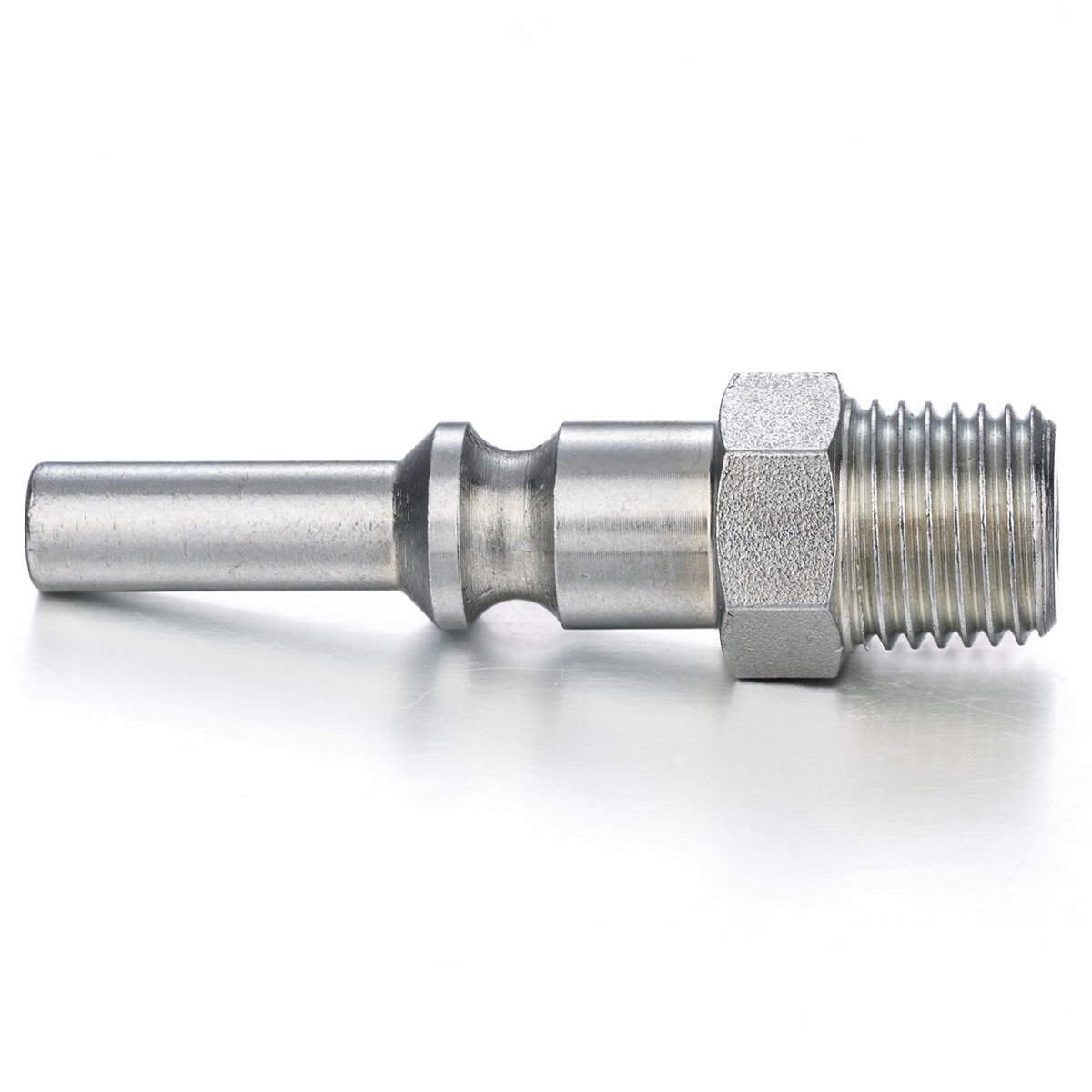

| LPM-N02 | 1/4 | 1/4-18 | 2.25 | 0.92 | 0.56 | 0.65 |
