KZAF

Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
12.5	1/2″	25(3625)	68(18)	120(17100)	100(14500)	105(15250)

Female

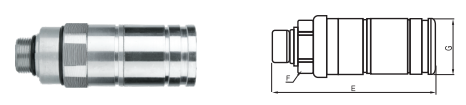

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(in.）	(in.）	(in.）
KZAF-G04SM	G1/2	107.3	27	38	KZAF-G04SF	G1/2	4.22	1.06	1.5
KZAF-N04SM	NPT1/2	107.3	27	38	KZAF-N04SF	NPT1/2	4.22	1.06	1.5
KZAF-U04SM	3/4UNF	107.3	27	38	KZAF-U04SF	3/4UNF	4.22	1.06	1.5
KZAF-M22SM	M22X1.5	107.3	32	38	KZAF-M22SF	M22X1.5	4.48	1.26	1.5
KZAF-U1-78SM	7/8UNF	110.8	32	38	KZAF-U1-78SF	7/8UNF	4.48	1.26	1.5

Features

connexion by pushing the male
coupling
Disconnexion by pulling the male
part
Shut off by poppet valve
Connectable with male part(IsO A)
under pressure
Disconnexion under pressure only as
breakaway
Interchangeability according to IsO
7241-1 part A
