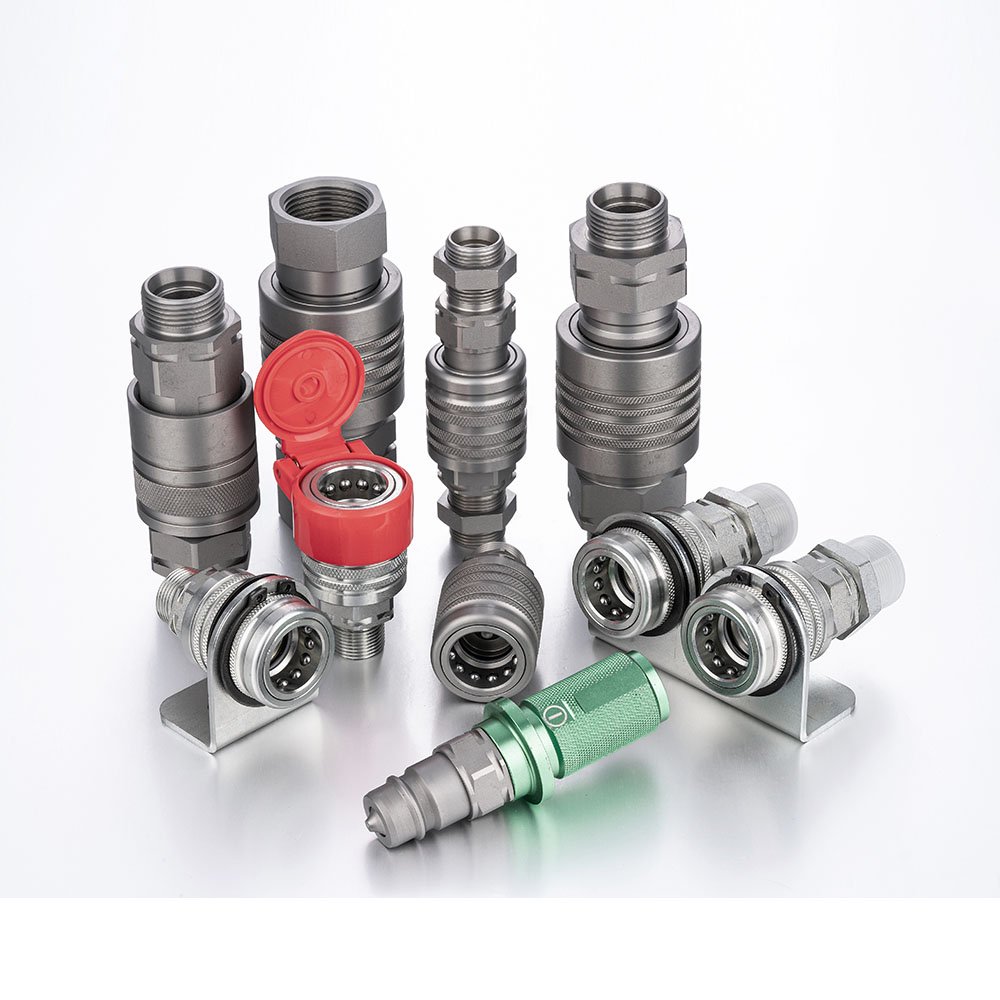

KZA

Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
10	3/8″	27(3800)	24(6.2)	115(16400)	130(18600)	110(15700)
12.5	1/2″	30(4300)	75(19.8)	120(17100)	120(17100)	120(17100)
25	1″	22(3150)	270(71.4)	110(15700)	110(15700)	90(12900)

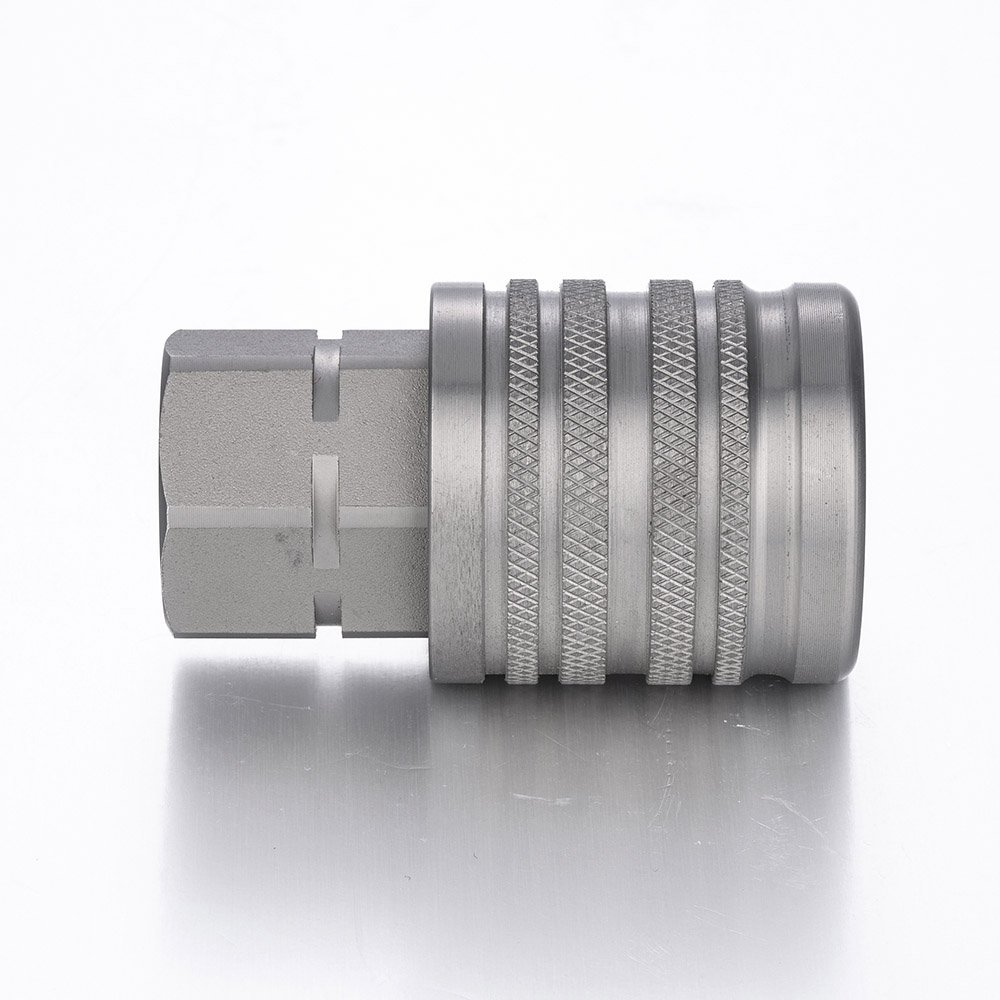

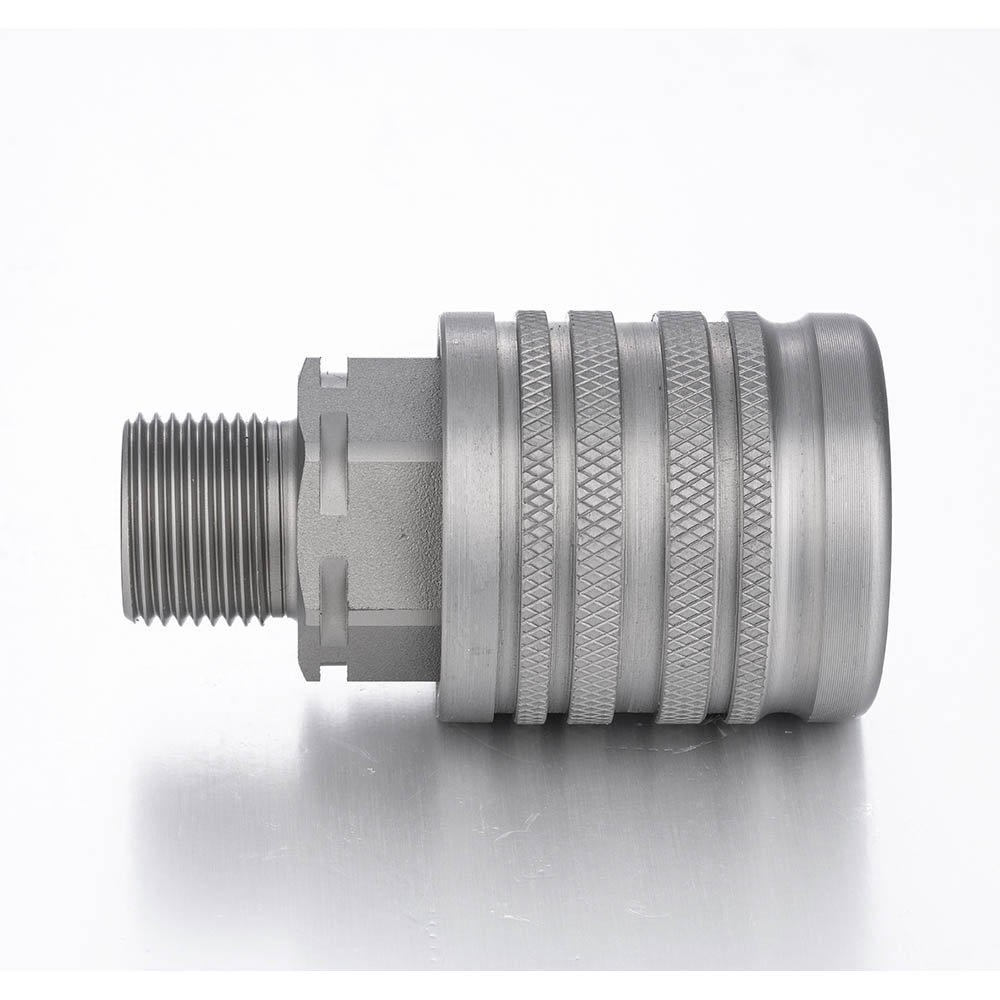

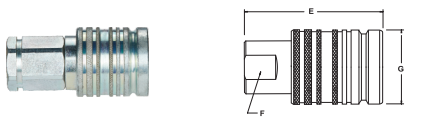

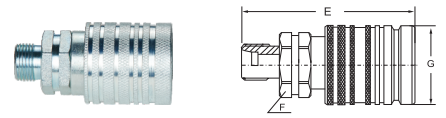

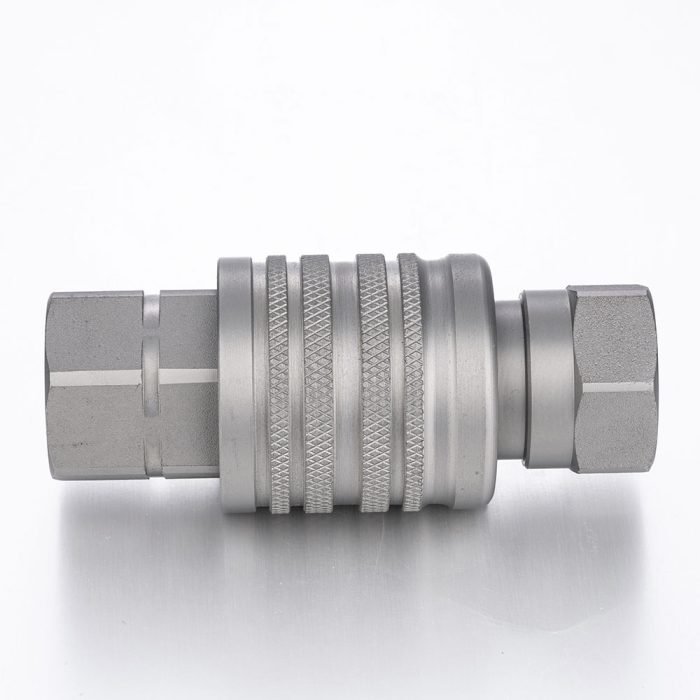

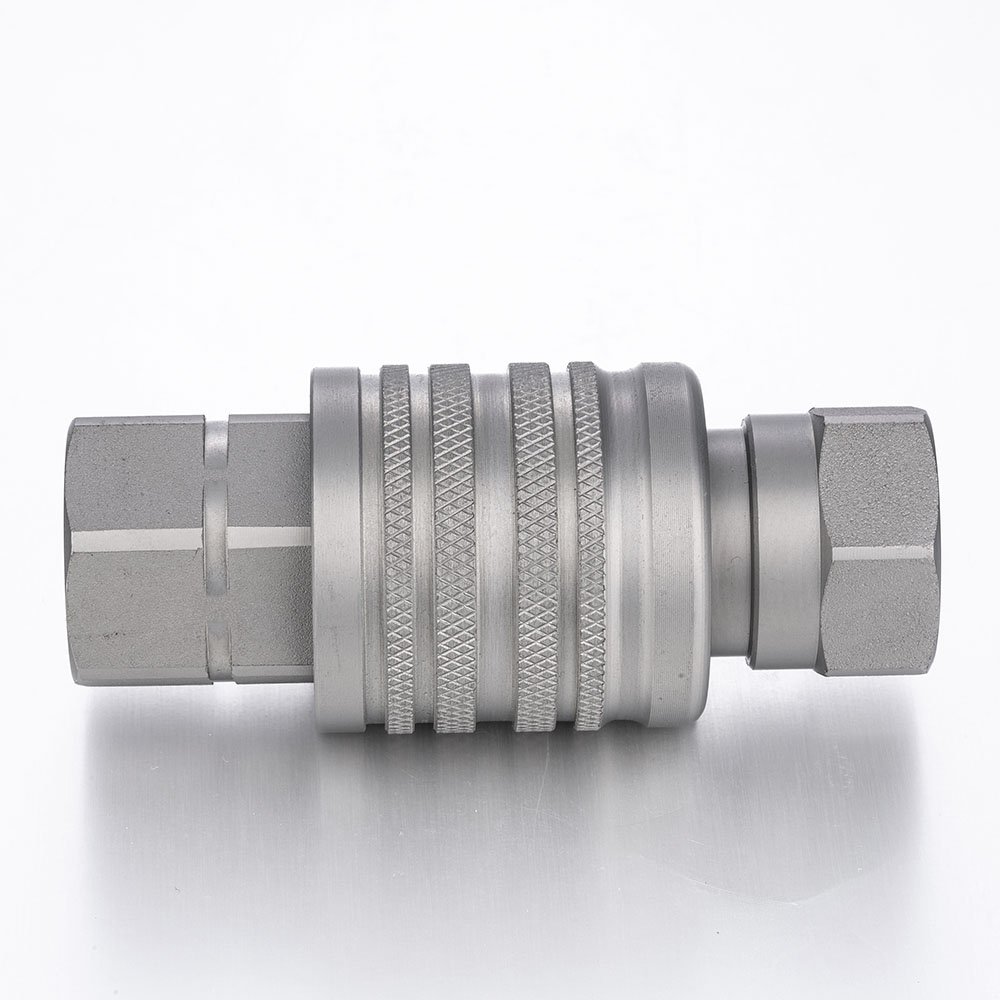

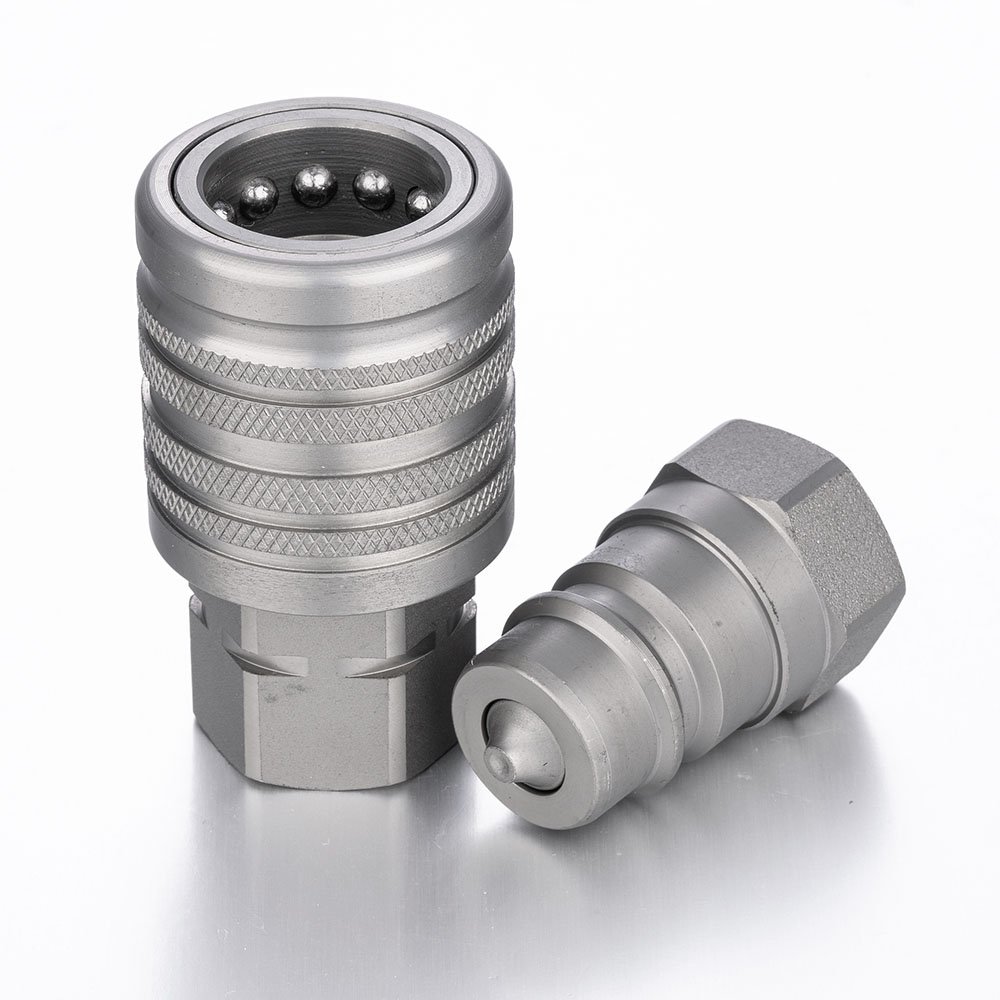

Female

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(in.）	(in.）	(in.）
KZA-03SF	G3/8	59	24	33	KZA-N03SF	NPT3/8	2.31	0.94	1.31
KZA-04SF	G1/2	68	27	38	KZA-N04SF	NPT1/2	2.68	1.06	1.50
KZA-22SF	M22X1.5	68	27	38	KZA-22SF	M22X1.5	2.68	1.06	1.50
KZA-U34SF	UNF3/4	68	27	38	KZA-U34SF	UNF3/4	2.68	1.06	1.50
KZA-08SF	G1	101	42	54	KZA-08PF	G1	3.98	1.65	2.13

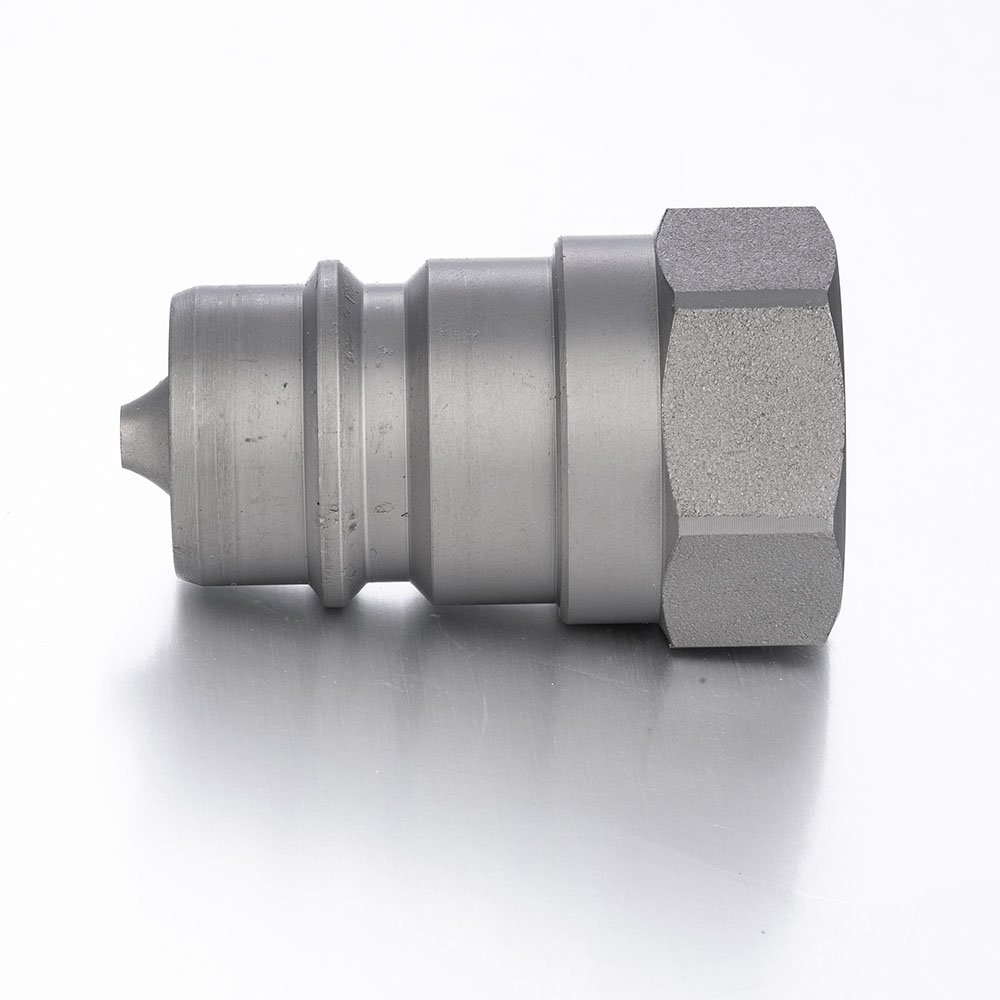

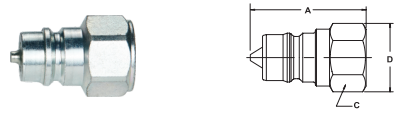

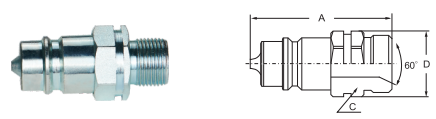

Male

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(in.）	(in.）	(in.）
KZA-03PF	G3/8	41	24	27	KZA-N03PF	NPT3/8	1.60	0.94	1.08
KZA-04PF	G1/2	50	27	31	KZA-N04PF	NPT1/2	1.95	1.06	1.23
KZA-22PF	M22X1.5	50	27	31	KZA-22PF	M22X1.5	1.95	1.06	1.23
KZA-U34PF	UNF3/4	50	27	31	KZA-U34PF	UNF3/4	1.95	1.06	1.23
KZA-08PF	G1	72	38	44	KZA-N08PF	NPT1	2.95	1.50	1.73

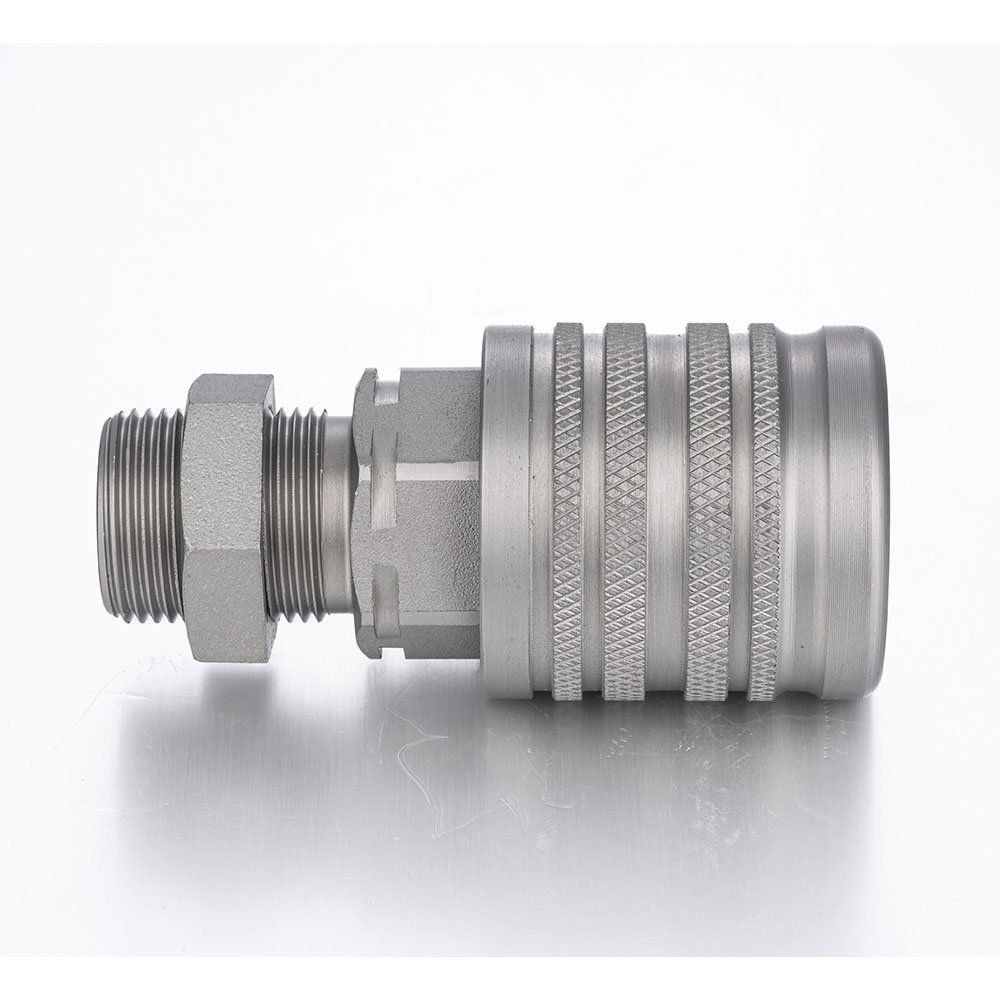

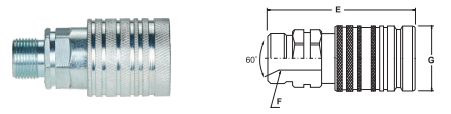

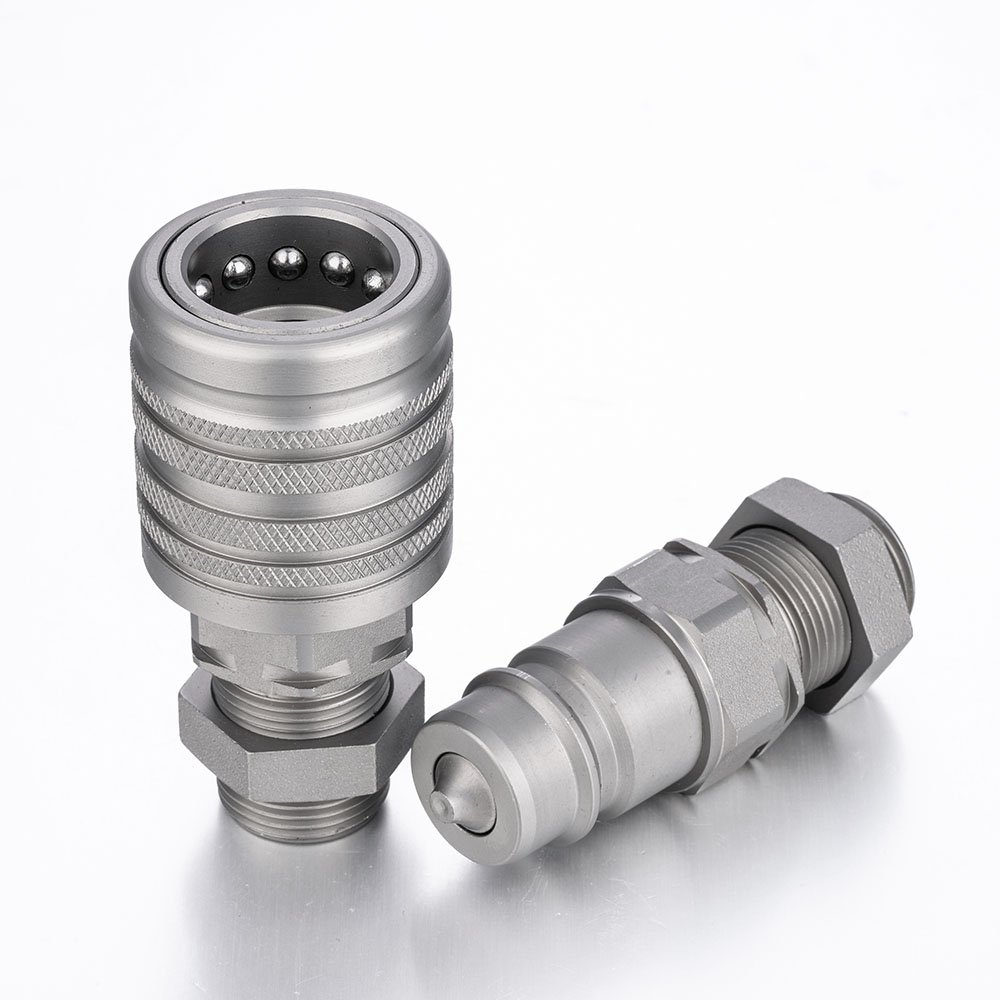

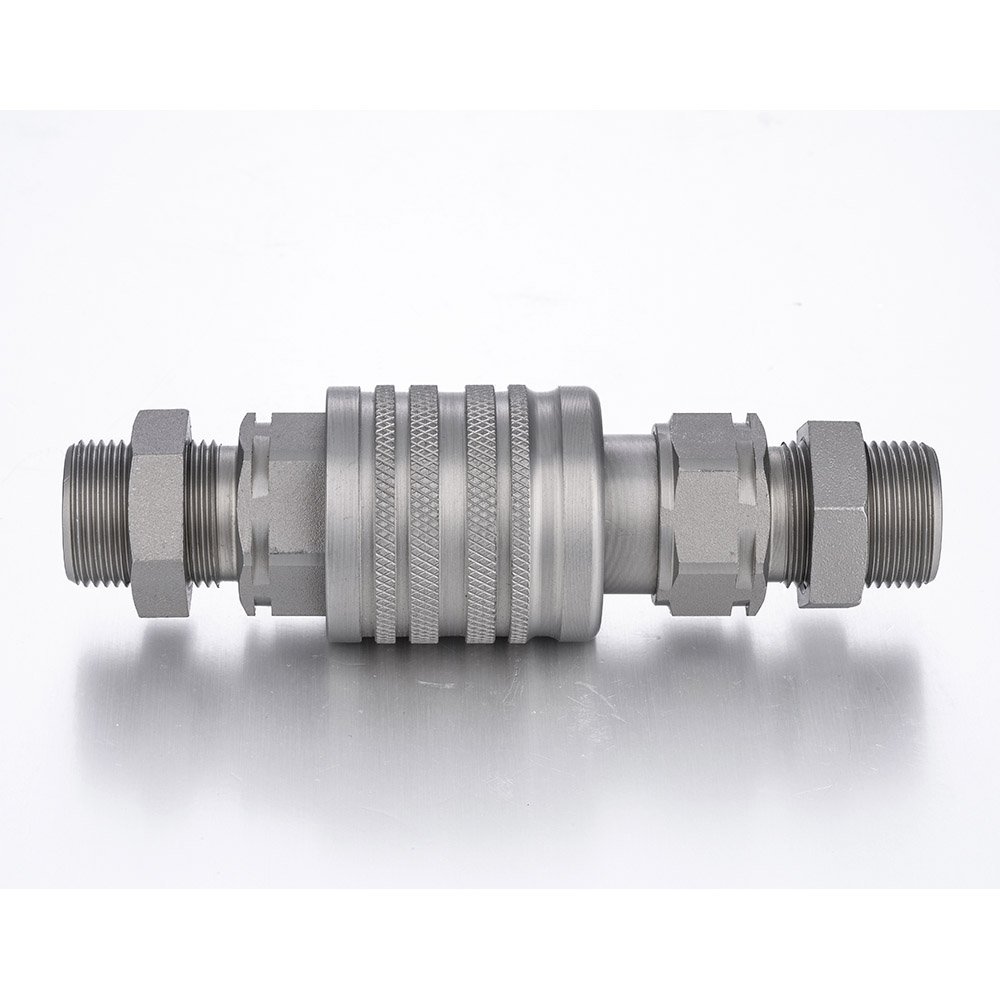

Female

Part No.	Thread	ΦT	E	F	G
			(mm.)	(mm.)	( mm.)
KZA-14SM-M	M14x1.5	08L	72	27	38
KZA-16SM-M	M16x1.5	10L	72	27	38
KZA-18SM-M	M18x1.5	12L	72	27	38
KZA-22SM-M	M22x1.5	15L	72	27	38
KZA-26SM-M	M26x1.5	18L	72	27	38
KZA-18SM-MS	M18x1.5	10S	72	27	38
KZA-20SM-MS	M20x1.5	12S	72	27	38
KZA-22SM-MS	M22x1.5	14S	72	27	38
KZA-24SM-MS	M24x1.5	16S	72	27	38
KZA-30SM-MS	M30x2.0	20S	72	30	38

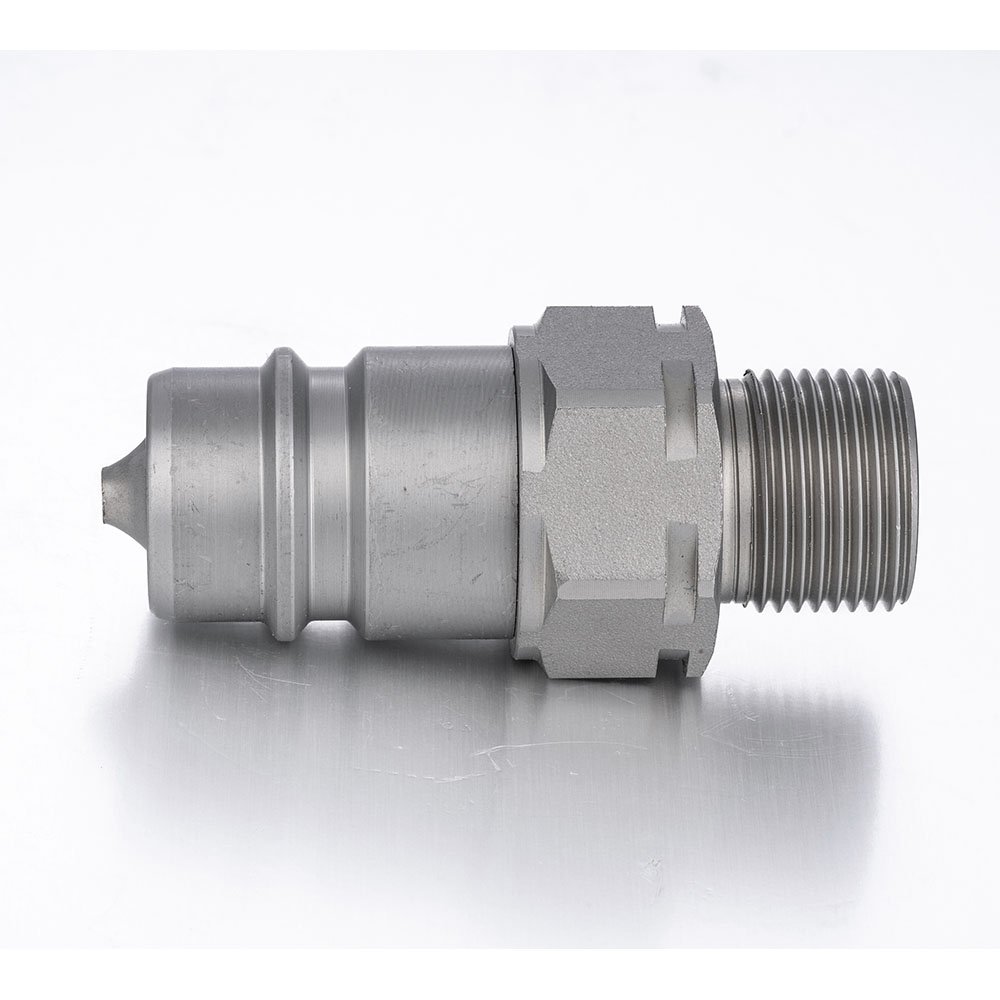

Male

Part No.	Thread	ΦT	E	F	G
			(mm.)	(mm.)	( mm.)
KZA-14PM-M	M14x1.5	08L	56	27	31
KZA-16PM-M	M16x1.5	10L	56	27	31
KZA-18PM-M	M18x1.5	12L	56	27	31
KZA-22PM-M	M22×1.5	15L	56	27	31
KZA-26PM-M	M26x1.5	18L	60	30	34
KZA-18PM-MS	M18x1.5	10S	56	27	31
KZA-20PM-MS	M20x1.5	12S	56	27	31
KZA-22PM-MS	M22x1.5	14S	56	27	31
KZA-24PM-MS	M24x1.5	16S	58	27	31
KZA-30PM-MS	M30x1.5	20S	62	30	34

Female

Part No.	Thread	ΦT	E	F	G
			(mm.)	(mm.)	( mm.)
KZA-14SM-ML	M14x1.5	08L	85	27	38
KZA-16SM-ML	M16x1.5	10L	85	27	38
KZA-18SM-ML	M18x1.5	12L	85	27	38
KZA-22SM-ML	M22x1.5	15L	85	27	38
KZA-26SM-ML	M26x1.5	18L	88	27	38
KZA-18SM-MLS	M18x1.5	10S	85	27	38
KZA-20SM-MLS	M20x1.5	12S	85	27	38
KZA-22SM-MLS	M22x1.5	14S	85	27	38
KZA-24SM-MLS	M24x1.5	16S	85	27	38
KZA-30SM-MLS	M30×2.0	20S	88	30	38

Male

Part No.	Thread		E	F	G
			(mm.)	(mm.)	( mm.)
KZA-14PM-ML	M14x1.5	08L	72	27	31
KZA-16PM-ML	M16x1.5	10L	72	27	31
KZA-18PM-ML	M18x1.5	12L	72	27	31
KZA-22PM-ML	M22x1.5	15L	72	27	31
KZA-26PM-ML	M26x1.5	18L	75	30	34
KZA-18PM-MLS	M18x1.5	10S	72	27	31
KZA-20PM-MLS	M20x1.5	12S	72	27	31
KZA-22PM-MLS	M22x1.5	14S	72	27	31
KZA-24PM-MLS	M24x1.5	16S	72	27	31
KZA-30PM-MLS	M30x1.5	20S	75	30	34

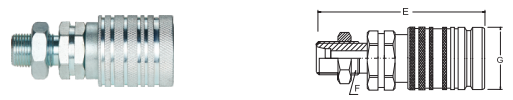

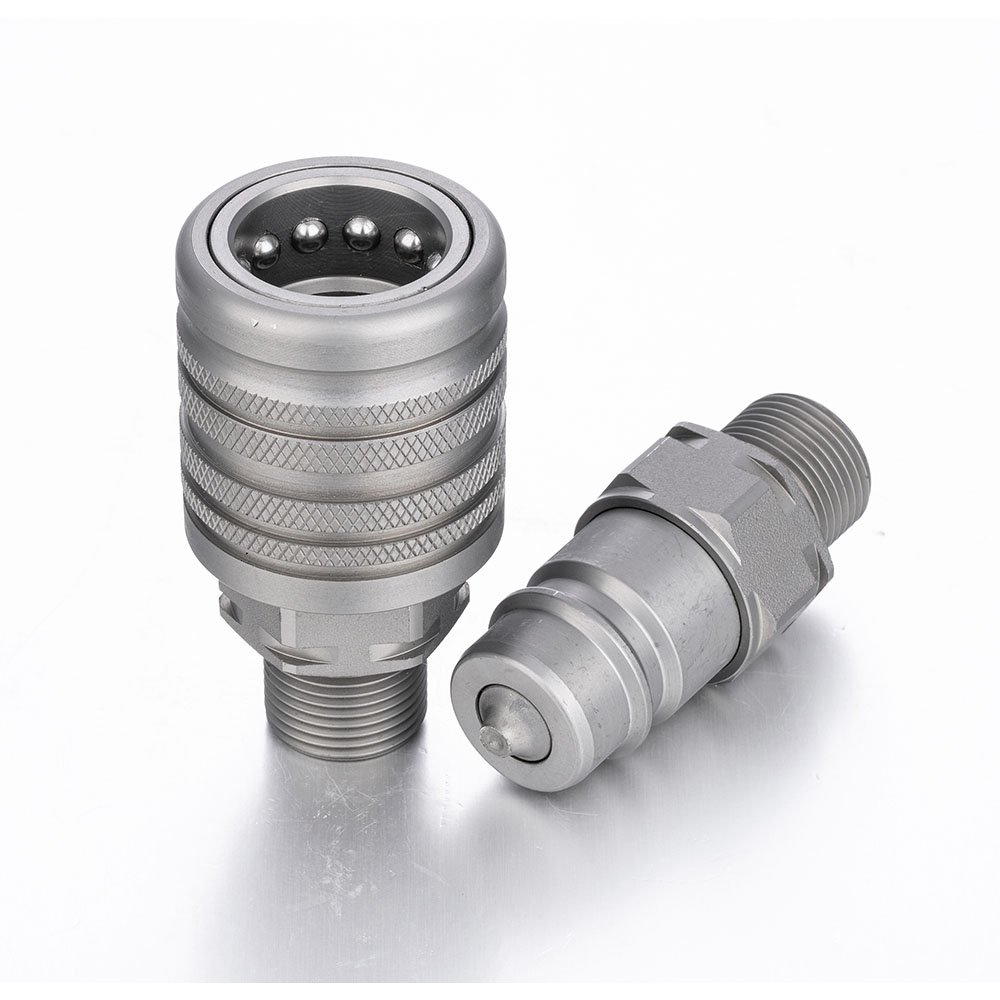

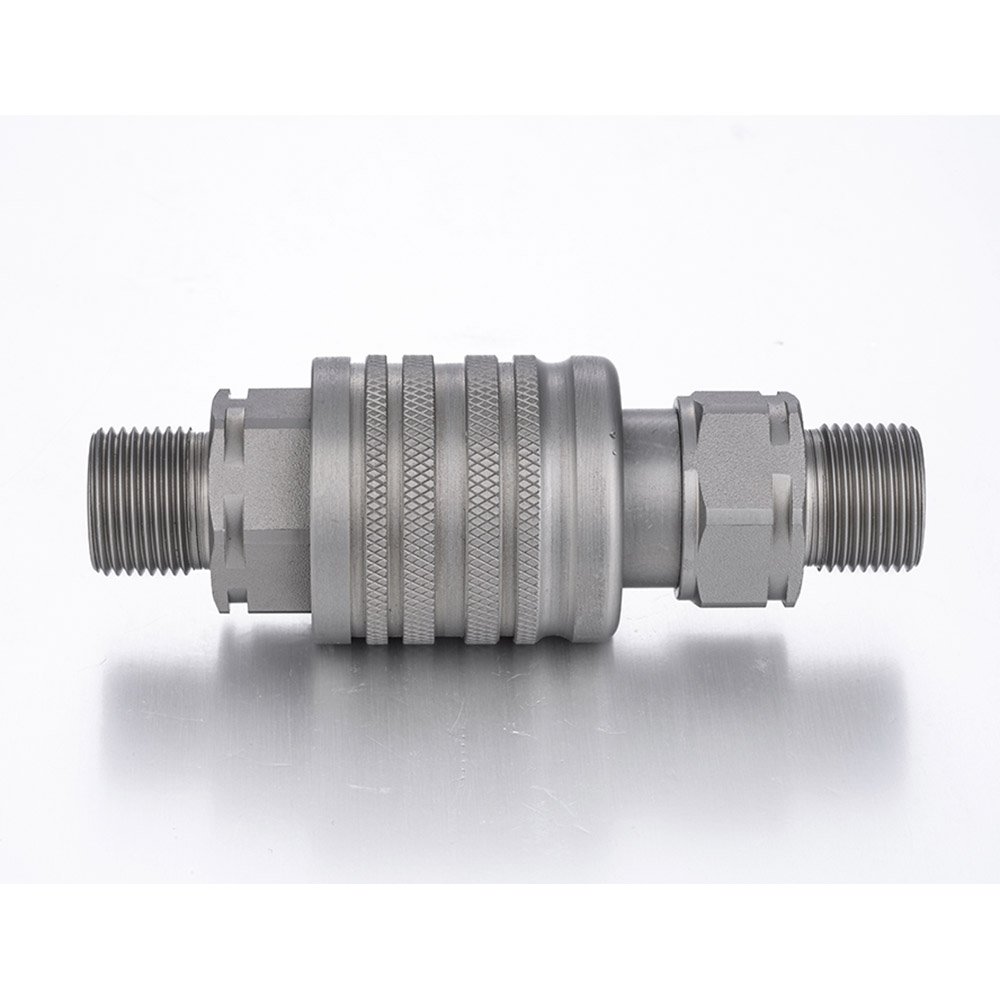

Female

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KZA-03SM-MW	G3/8	73	27	38
KZA-04SM-MW	G1/2	76	27	38
KZA-16SM-MW	M16x1.5	70	27	38
KZA-20SM-MW	20×1.5	75	27	38
KZA-22SM-MW	22×1.5	73	27	38

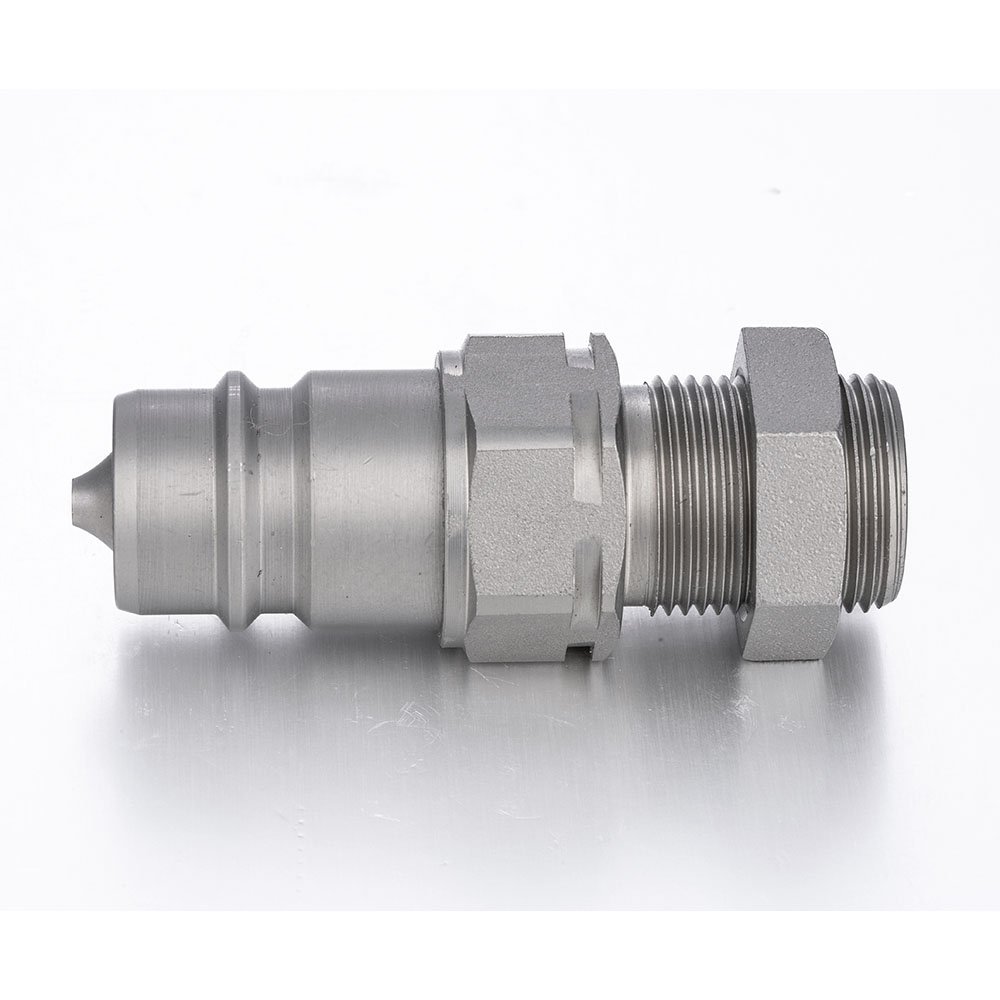

Male

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KZA-03PM-MW	G3/8	60	27	31
KZA-04PM-MW	G1/2	63	27	31
KZA-16PM-MW	M16x1.5	57	27	31
KZA-20PM-MW	20×1.5	72	27	31
KZA-22PM-MW	22×1.5	60	27	31

Features

Connexion by pushing the male coupling
Disconnexion by pulling the male part
Shut off by poppet valve
Connectable with male part(ISO A) under pressure
Disconnexion under pressure not allowed.Breakaway function according to Is0 5675
Interchangeability according to ISO 7241-1 part A
