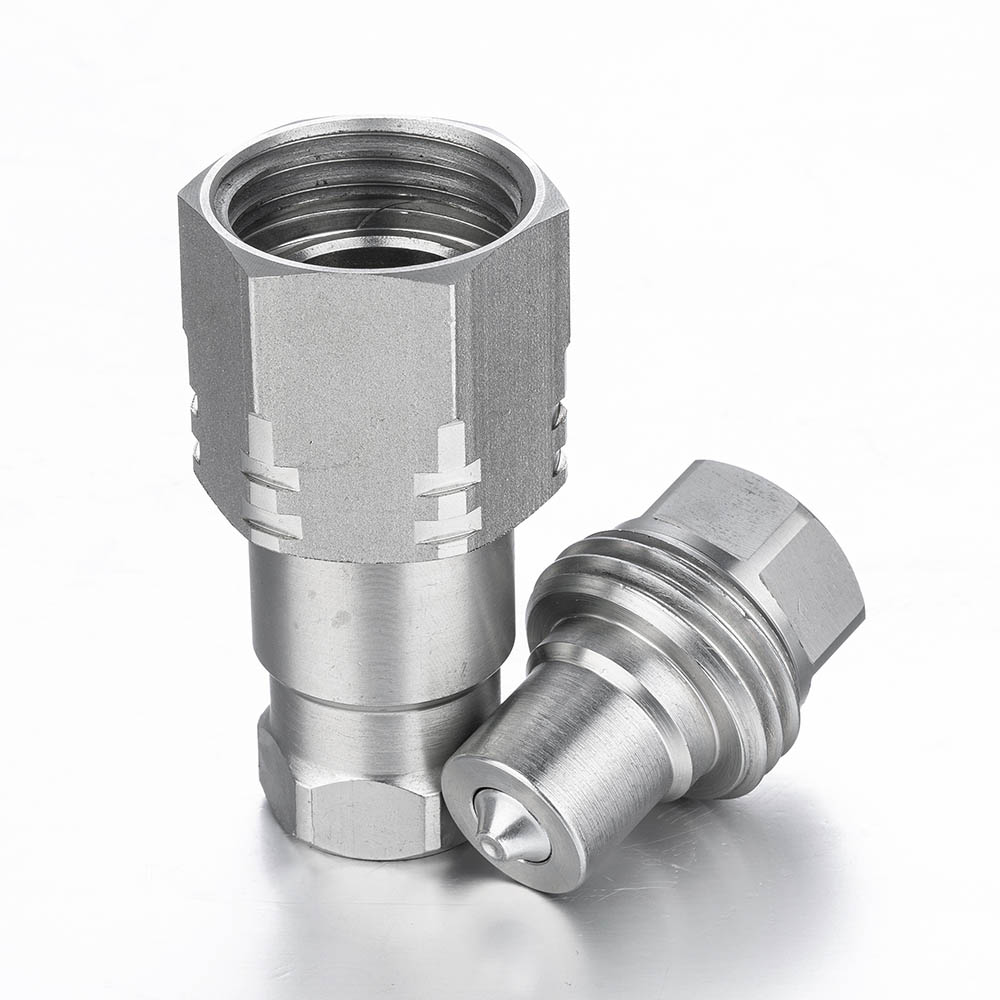

KVV

15 products sold in last 1 hour

Selling fast! 1 person has in their cart

24 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
6.3	1/4″	35(5000)	18(4.8)	170(24700)	140(20000)	150(21800)
10	3/8″	30(4350)	30(7.9)	120(17400)	120(17400)	150(21800)
12.5	1/2″	30(4350)	45(12)	130(18900)	120(17100)	160(23000)
20	3/4”	25(3600)	90(24)	100(14500)	100(14500)	120(17400)
25	1”	25(3300)	140(37)	100(14500)	90(13000)	100(14500)

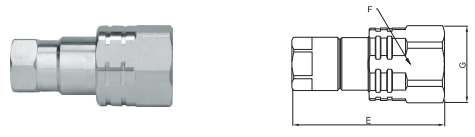

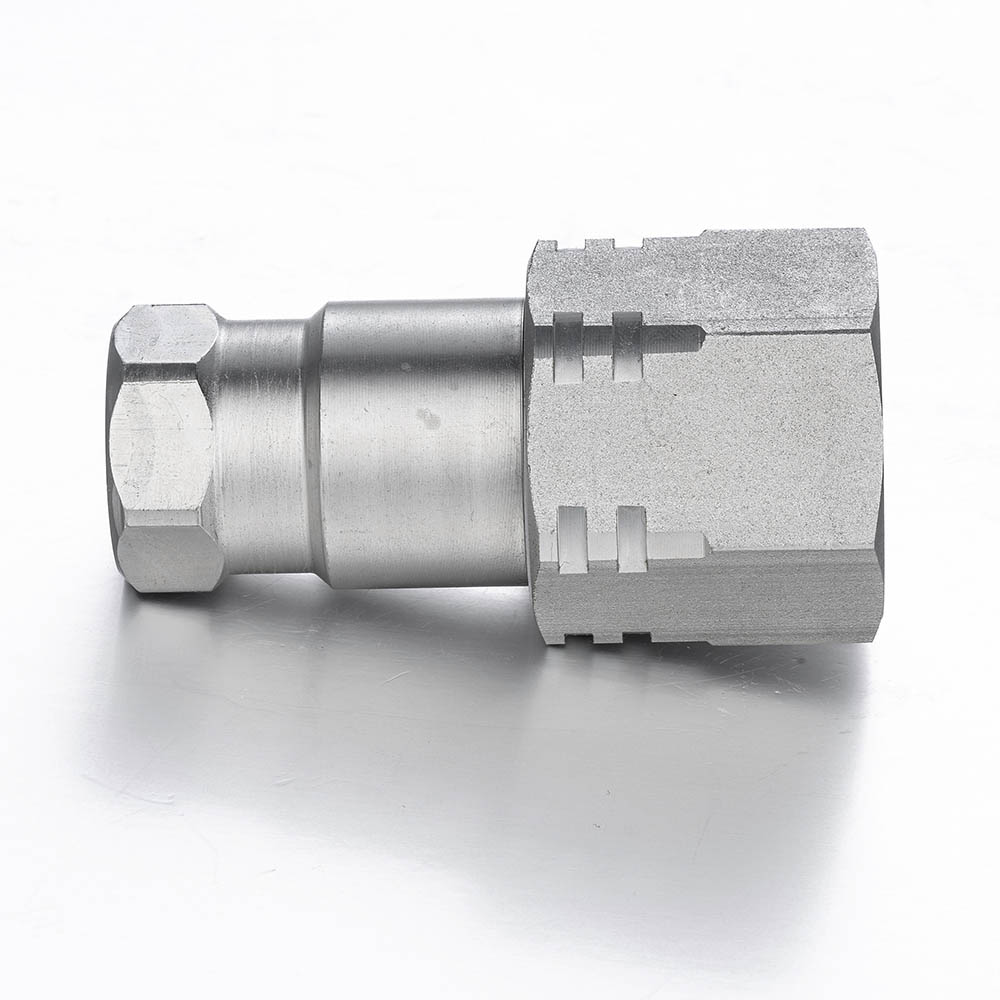

Female

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(mm.)	(mm.)	( mm.)
KVV-02SF	G1/4	59.7	27	30	KVV-NO2SF	NPT1/4	2.35	1.06	1.18
KVV-03SF	G3/8	71.9	34	38	KVV-N03SF	NPT3/8	2.83	1.34	1.50
KVV-04SF	G1/2	78.7	38	42	KVV-N04SF	NPT1/2	3.10	1.50	1.65
KVV-06SF	G3/4	105.6	50	55	KVV-N06SF	NPT3/4	4.16	1.97	2.17
KVV-08SF	G1	124	55	61	KVV-N08SF	NPT1	4.88	8.17	2.42

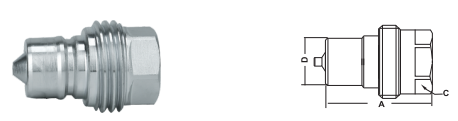

Male

Part No.	Thread	A	C	D	Part No.	Thread	A	C	D
		(mm.)	(mm.)	( mm.)			(mm.)	(mm.)	( mm.)
KVV-02PF	G1/4	33	19	14.1	KVV-N02PF	NPT1/4	1.3	0.75	0.56
KVV-03PF	G3/8	41	24	18.9	KVV-N03PF	NPT3/8	1.61	0.94	0.74
KVV-04PF	G1/2	49	27	20.5	KVV-N04PF	NPT1/2	1.93	1.06	0.81
KVV-06PF	G3/4	62	34	27.9	KVV-N06PF	NPT3/4	2.44	0.34	1.10
KVV-08PF	G1	70	41	31.3	KVV-N08PF	NPT1	2.75	0.61	1.23

Features

Connexion by screwing together the two parts
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure
Interchangeability according to Faster
internal Standards
