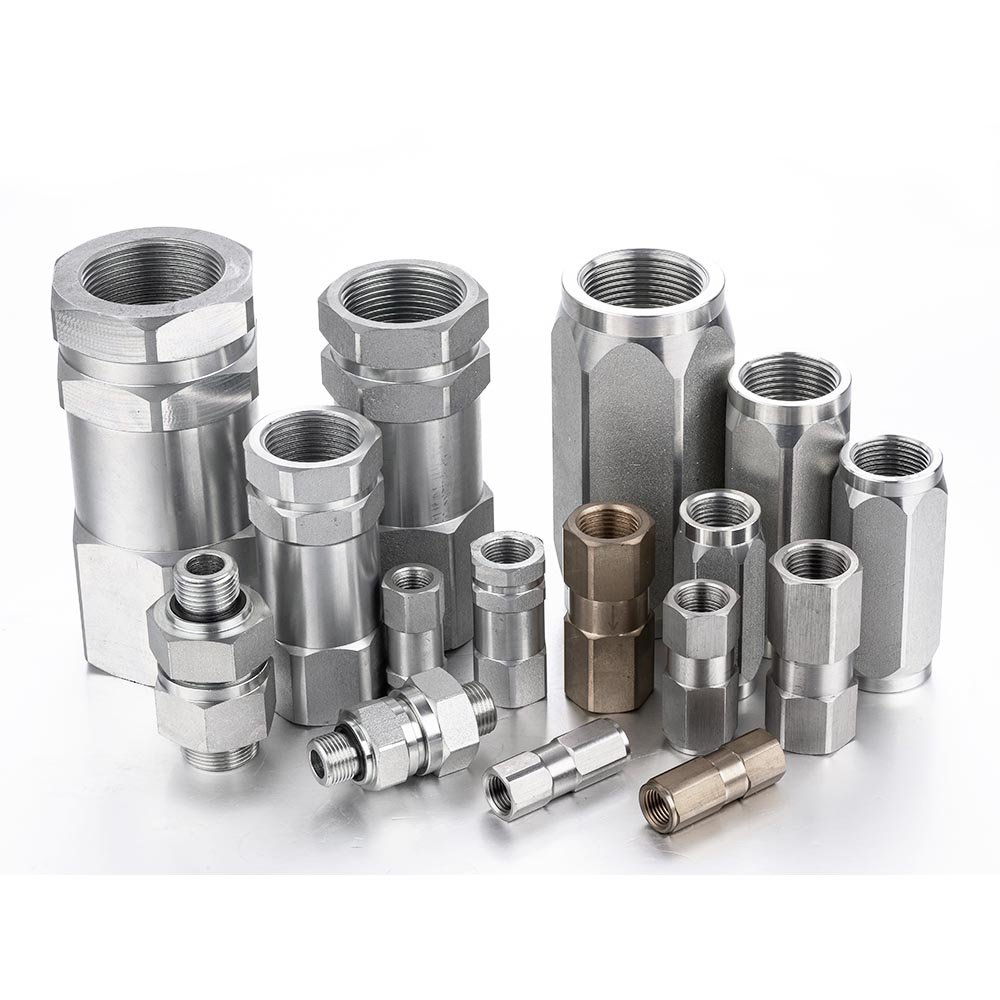

KVU
17 products sold in last 20 hours
Selling fast! Over 16 people have in their cart
27 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Details
| Size | Working pressure | Flow Rate | Burst Pressures | |
| @0,2 MPa pressure drop |
 |
|||
| mm | inch | MPa (PSI) | I/min(GPM) | MPa(PSI) |
| 6.3 | 1/4” | 50(7250) | 17(4.49) | 200(29000) |
| 10 | 3/8″ | 35(5075) | 68(17.97) | 140(20300) |
| 12.5 | 1/2” | 35(5075) | 90(23.78) | 140(20300) |
| 20 | 3/4” | 25(3625) | 140(36.99) | 100(14500) |
| 25 | 1″ | 25(3625) | 200(52.84) | 100(14500) |
| 31.5 | 11/4″ | 25(3625) | 300(79.26) | 100(14500) |
| 40 | 11/2″ | 20(2900) | 500(132.10) | 80(11600) |
| 50 | 2” | 17(2500) | 700(184.94) | 70(10000) |

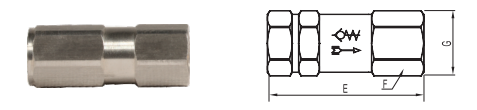

STEEL
| Part No. | Thread | E | F | G | Part No. | Thread | E | F | G |
| (mm.) | (mm.) | ( mm.) | (mm.) | (mm.) | ( mm.) | ||||
| KVU-02SF | G1/4 | 50 | 19 | 22 | KVU-N02SF | NPT1/4 | 1.97 | 0.75 | 0.86 |
| KVU-03SF | G3/8 | 60 | 24 | 27 | KVU-N03SF | NPT3/8 | 2.36 | 0.94 | 1.06 |
| KVU-04SF | G1/2 | 70 | 27 | 31 | KVU-N04SF | NPT1/2 | 2.76 | 1.06 | 1.22 |
| KVU-06SF | G3/4 | 86 | 34 | 39 | KVU-N06SF | NPT3/4 | 8.39 | 1.34 | 1.53 |
| KVU-08SF | G1 | 100 | 41 | 46.5 | KVU-N08SF | NPT1 | 3.94 | 1.61 | 1.83 |
| KVU-10SF | G11/4 | 130 | 50 | 57 | KVU-N10SF | NPT11/4 | 5.12 | 1.97 | 2.24 |
| KVU-12SF | G11/2 | 145 | 60 | 68.5 | KVU-N12SF | NPT11/2 | 5.71 | 2.36 | 2.70 |
| KVU-16SF | G2 | 160 | 75 | 85.5 | KVU-N16SF | NPT2 | 6.3 | 2.95 | 3.37 |

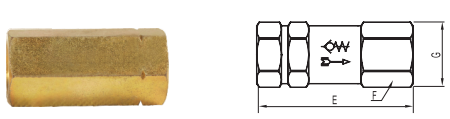

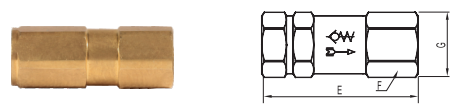

BRASS
| Part No. | Thread | E | F | G | Part No. | Thread | E | F | G |
| (mm.) | (mm.) | ( mm.) | (mm.) | (mm.) | ( mm.) | ||||
| KVU-02SF-B | G1/4 | 50 | 19 | 22 | KVU-N02SF-B | NPT1/4 | 1.97 | 0.75 | 0.86 |
| KVU-03SF-B | G3/8 | 60 | 24 | 27 | KVU-NO3SF-B | NPT3/8 | 2.36 | 0.94 | 1.06 |
| KVU-04SF-B | G1/2 | 70 | 27 | 31 | KVU-N04SF-B | NPT1/2 | 2.76 | 1.06 | 1.22 |
| KVU-06SF-B | G3/4 | 86 | 34 | 39 | KVU-N06SF-B | NPT3/4 | 8.39 | 1.34 | 1.53 |
| KVU-08SF-B | G1 | 100 | 41 | 46.5 | KVU-N08SF-B | NPT1 | 3.94 | 1.61 | 1.83 |
| KVU-10SF-B | G11/4 | 130 | 50 | 57 | KVU-N10SF-B | NPT11/4 | 5.12 | 1.97 | 2.24 |
| KVU-12SF-B | G11/2 | 145 | 60 | 68.5 | KVU-N12SF-B | NPT11/2 | 5.71 | 2.36 | 2.70 |
| KVU-16SF-B | G2 | 160 | 75 | 85.5 | KVU-N16SF-B | NPT2 | 6.3 | 2.95 | 3.37 |
STAINLESS STEEL
| Part No. | Thread | E | F | G | Part No. | Thread | E | F | G |
| (mm.) | (mm.) | ( mm.) | (mm.) | (mm.) | ( mm.) | ||||
| KVU-02SF-SS | G1/4 | 50 | 19 | 22 | KVU-N02SF-SS | NPT1/4 | 1.97 | 0.75 | 0.86 |
| KVU-03SF-SS | G3/8 | 60 | 24 | 27 | KVU-N03SF-SS | NPT3/8 | 2.36 | 0.94 | 1.06 |
| KVU-04SF-SS | G1/2 | 70 | 27 | 31 | KVU-N04SF-SS | NPT1/2 | 2.76 | 1.06 | 1.22 |
| KVU-06SF-SS | G3/4 | 86 | 34 | 39 | KVU-N06SF-SS | NPT3/4 | 8.39 | 1.34 | 1.53 |
| KVU-08SF-SS | G1 | 100 | 41 | 46.5 | KVU-N08SF-SS | NPT1 | 3.94 | 1.61 | 1.83 |
| KVU-10SF-SS | G11/4 | 130 | 50 | 57 | KVU-N10SF-SS | NPT11/4 | 5.12 | 1.97 | 2.24 |
| KVU-12SF-SS | G11/2 | 145 | 60 | 68.5 | KVU-N12SF-SS | NPT11/2 | 5.71 | 2.36 | 2.70 |
| KVU-16SF-SS | G2 | 160 | 75 | 85.5 | KVU-N16SF-SS | NPT2 | 6.3 | 2.95 | 3.37 |
Features
Connexion by screwing together the
two parts
Disconnexion by unscrewing the two
parts
Standard settings 35 KPa(5 PSI)
Technical Specifcations
STEEL、BRASS、STAINLESS STEEL
NBR
-25°C to +125°C
(-13°Fto +257°F)
According to Is0 7241-2
Fields of application
