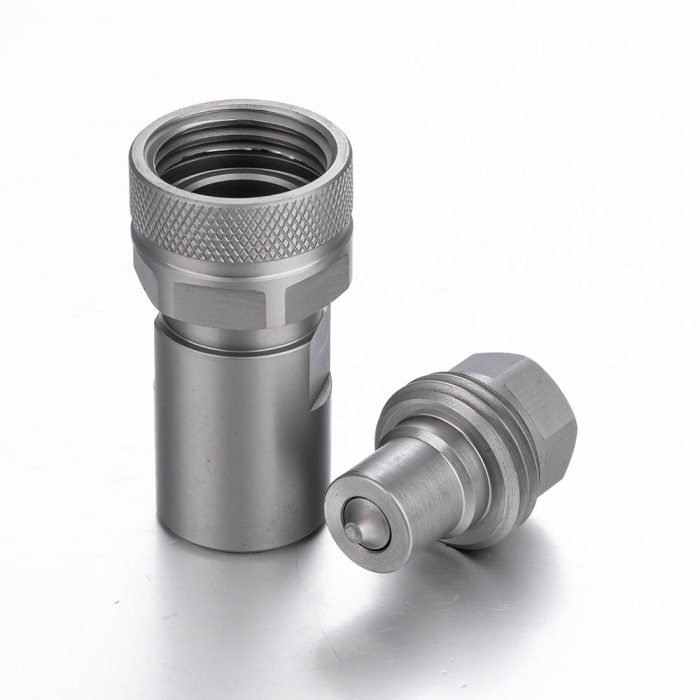

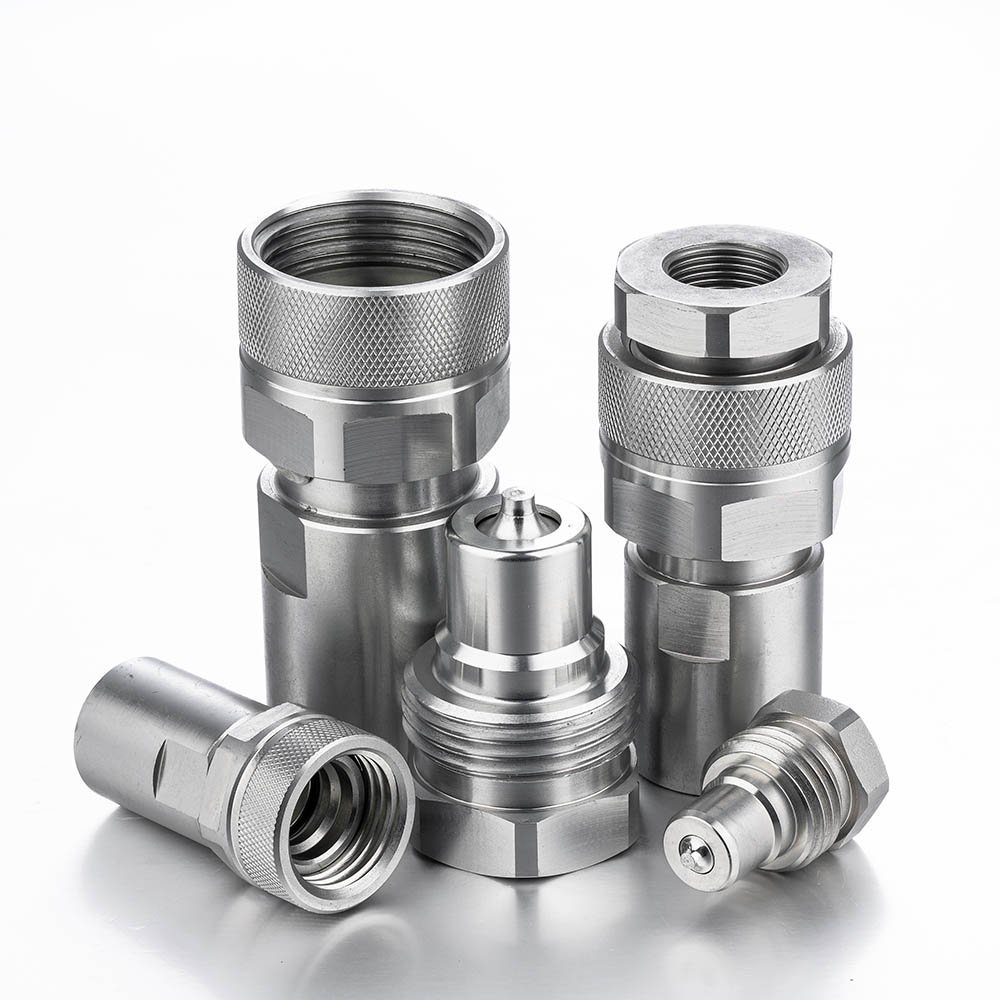

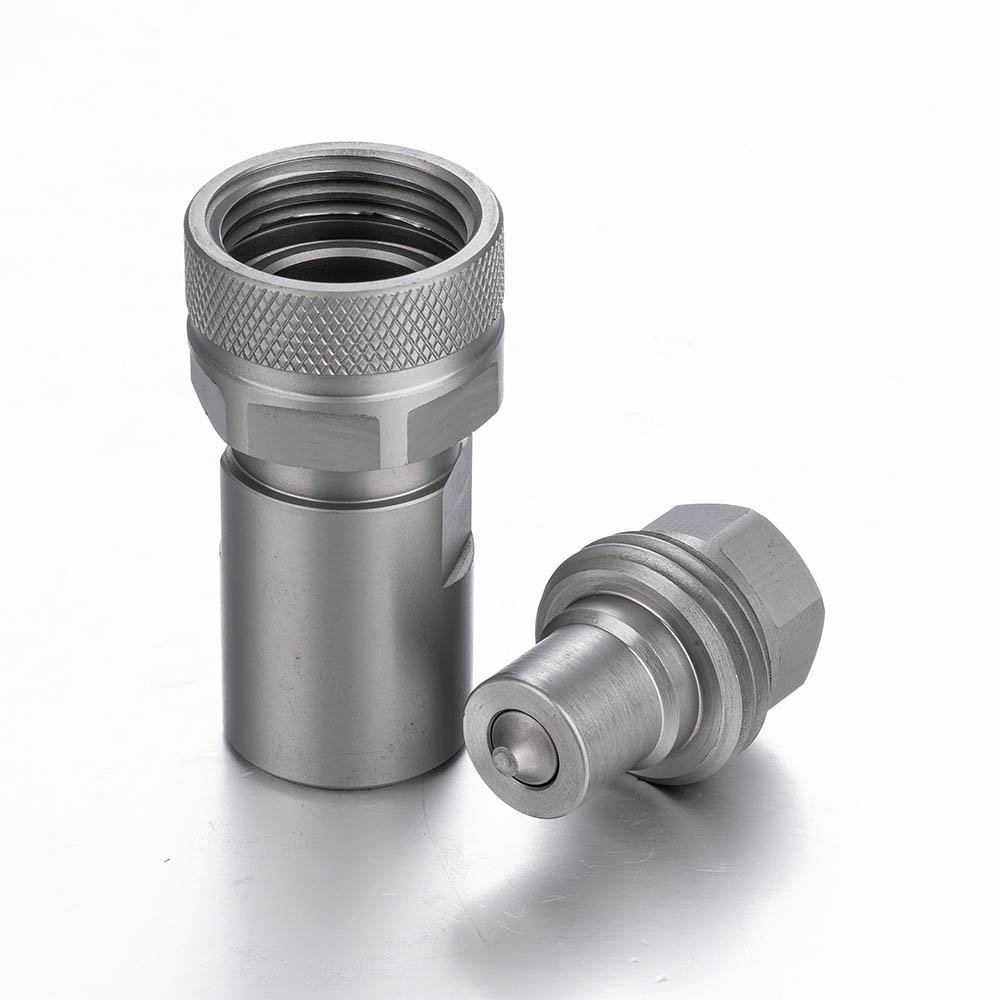

KVS

Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
6.3	1/4″	80(11600)	8(2.1)	240(34800)	240(34800)	250(36300)
10	3/8″	80(11600)	18(4.7)	350(50000)	340(49300)	240(34800)
12.5	1/2″	73(10600)	40(10.6)	220(31900)	220(31900)	220(31900)
20	3/4”	73(10600)	55(14.7)	220(31900)	230(33400)	230(33400)
25	1”	63(9150)	100(26)	240(34800)	190(27600)	190(27600)
32	11/4”	60(8700)	140(37)	180(26100)	180(26100)	200(29000)
40	11/2″	40(5800)	300(79)	150(21800)	120(17100)	150(21800)
50	2”	35(5000)	1000(264)	130(18600)	130(18600)	105(15250)

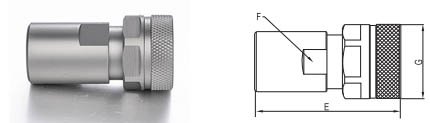

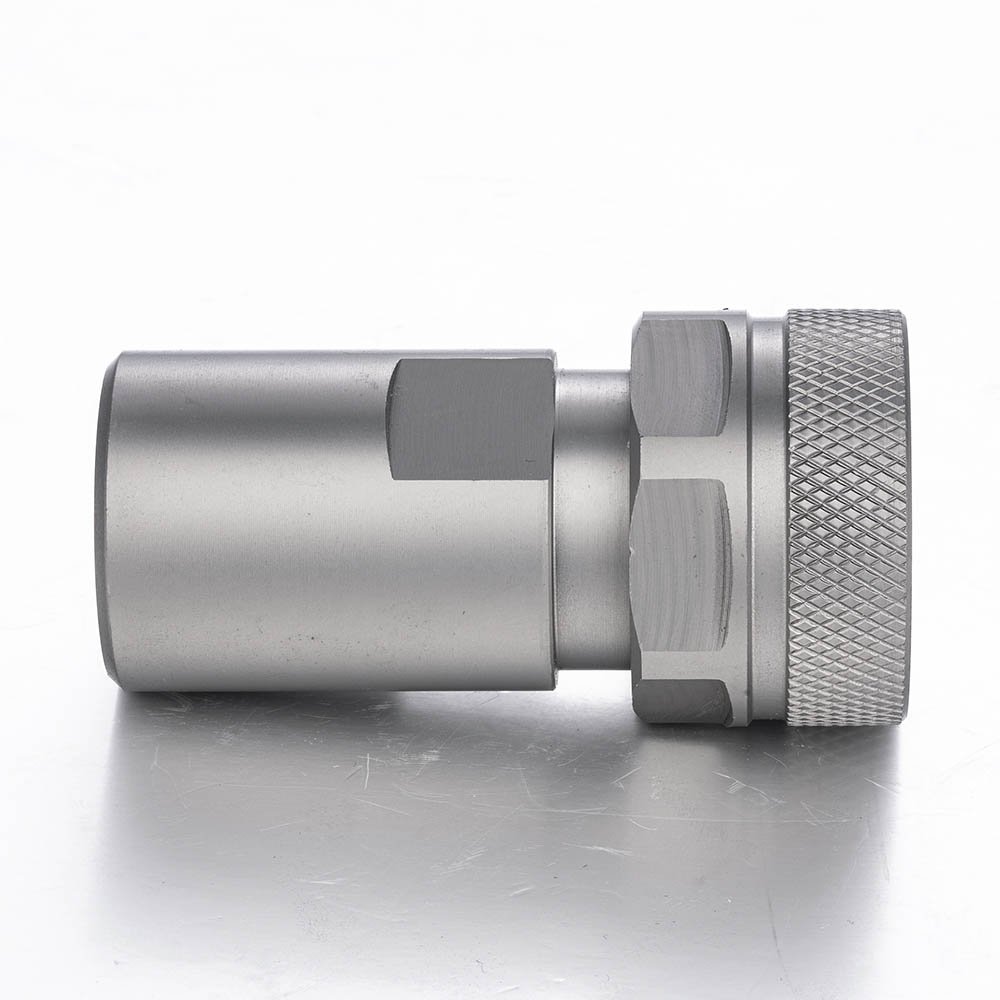

Female

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(mm.)	(mm.)	( mm.)
KVS-02SF	G1/4	68	22	30	KVS-N02SF	NPT1/4	2.68	0.87	1.18
KVS-03SF	G3/8	76	30	40	KVS-N03SF	NPT3/8	2.99	1.18	1.57
KVS-04SF	G1/2	87	34	45	KVS-N04SF	NPT1/2	3.43	1.34	1.77
KVS-06SF	G3/4	106	41	55	KVS-N06SF	NPT3/4	4.17	1.61	2.17
KVS-08SF	G1	124	50	60	KVS-N08SF	NPT1	4.88	1.97	2.36
KVS-10SF	G11/4	153	65	80	KVS-N10SF	NPT11/4	6.02	2.56	3.15
KVS-12SF	G11/2	172	75	98	KVS-N12SF	NPT11/2	6.77	2.95	3.86
KVS-16SF	G2	207	100	129	KVS-N16SF	NPT2	8.15	3.94	5.08

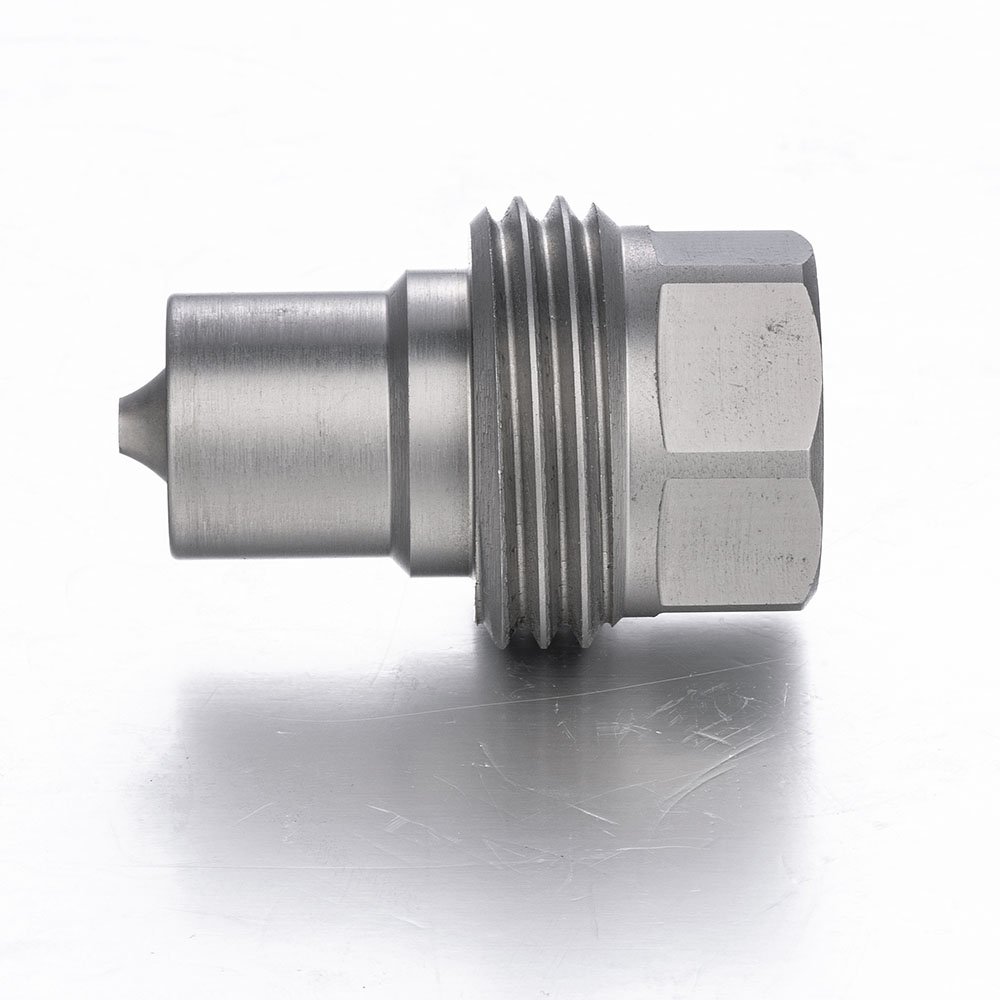

Male

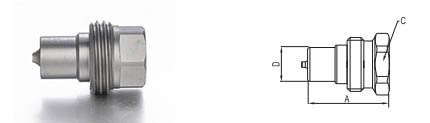

Part No.	Thread	A	C	D	Part No.	Thread	A	C	D
		(mm.)	(mm.)	( mm.)			(mm.)	(mm.)	( mm.)
KVS-02PF	G1/4	43	25	14.1	KVS-N02PF	NPT1/4	1.69	0.98	0.56
KVS-03PF	G3/8	48	32	18.9	KVS-N03PF	NPT3/8	1.89	1.26	0.74
KVS-04PF	G1/2	53	34	20.5	KVS-N04PF	NPT1/2	2.09	1.34	0.81
KVS-06PF	G3/4	63	46	27.9	KVS-N06PF	NPT3/4	2.48	1.81	1.10
KVS-08PF	G1	72	50	31.3	KVS-N08PF	NPT1	2.83	1.97	1.23
KVS-10PF	G11/4	86	65	43.9	KVS-N10PF	NPT11/4	3.39	2.56	1.73
KVS-12PF	G11/2	95	80	53.4	KVS-N12PF	NPT11/2	3.74	3.15	2.10
KVS-16PF	G2	118	110	81.9	KVS-N16PF	NPT2	4.65	4.33	3.22

Features

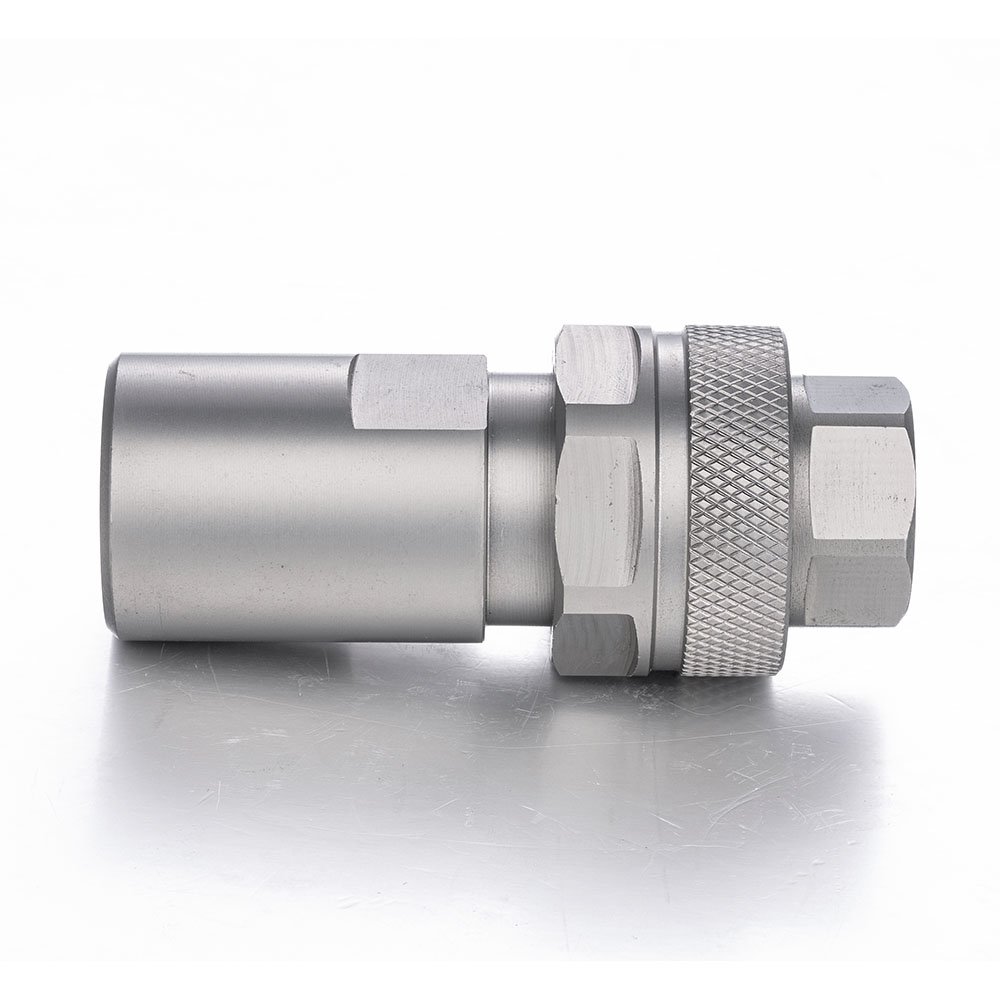

Connexion by screwing together the two parts
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual
pressure
Interchangeability according to
Faster internal Standards

Technical Specifcations

High grade carbon steel tempered
or carbonitrited for specific
stressed area
NBR
Backup ring in PTFE
-25°C to +125°C
(-13°Fto +257°F)
According to IsO 7241-2
