Drawings & Specifications
| Size | Working pressure | Flow Rate | Burst Pressures | |||
| @0,2 MPa pressure drop |
 |
 |
 |
|||
| mm | inch | MPa (PSI) | I/min(GPM) | MPa(PSI) | MPa(PSI) | MPa(PSI) |
| 6.3 | 1/4” | 35(5000) | 18(4.8) | 170(24700) | 140(20000) | 150(21800) |
| 10 | 3/8” | 30(4350) | 30(7.9) | 120(17400) | 120(17400) | 150(21800) |
| 12.5 | 1/2” | 30(4350) | 45(12) | 130(18900) | 120(17100) | 160(23000) |
| 20 | 3/4” | 25(3600) | 90(24) | 100(14500) | 100(14500) | 120(17400) |
| 25 | 1″ | 23(3300) | 140(37) | 100(14500) | 90(13000) | 100(14500) |

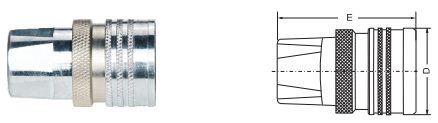

Female
| Part No. | Thread | A | C | D |
| (mm.) | (mm.) | ( mm.) | ||
| KTM-03SF | G3/8 | 60 | 24 | 34 |
| KTM-04SF | G1/2 | 65 | 30 | 40 |
| KTM-06SF | G3/4 | 72 | 38 | 52 |
| KTM-08SF | G1 | 88 | 45 | 62 |

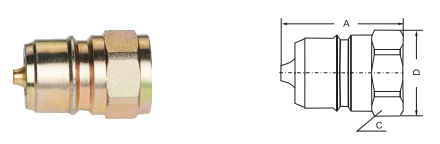

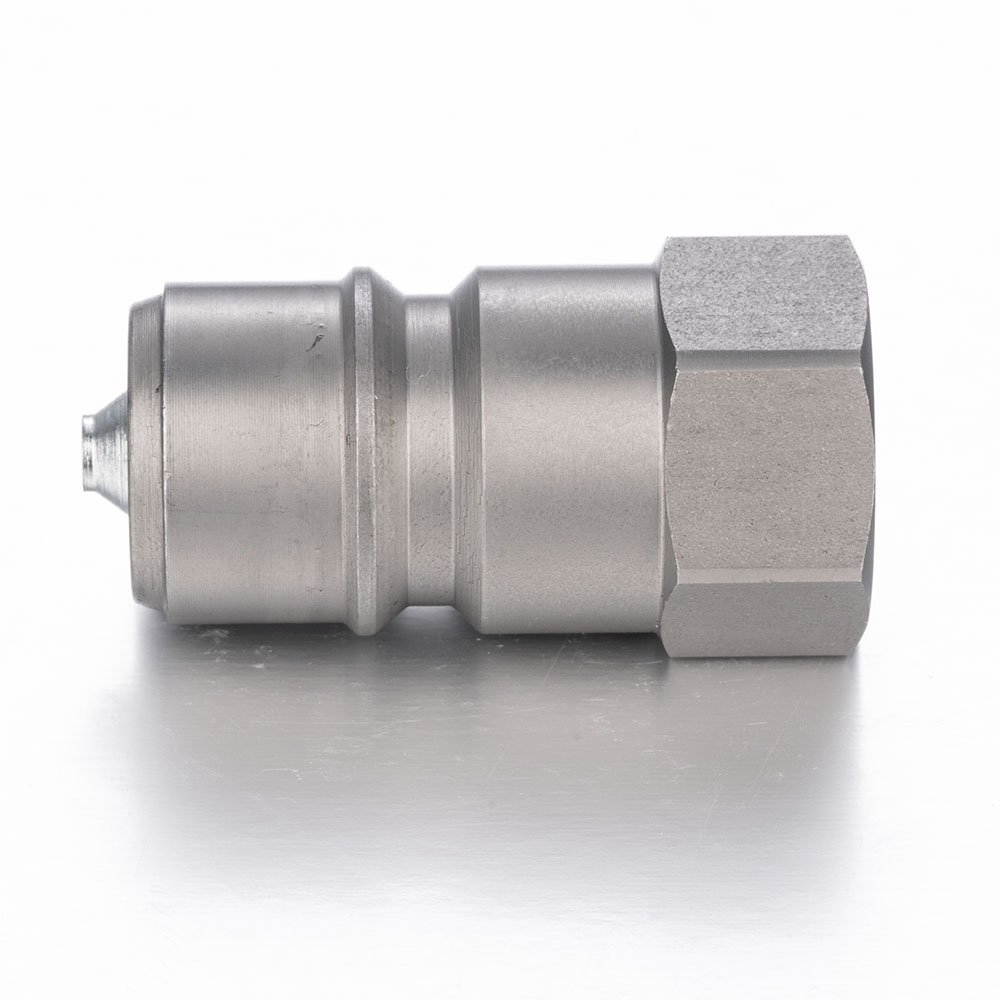

Male
| Part No. | Thread | A | C | D |
| (mm.) | (mm.) | ( mm.) | ||
| KTM-03PF | G3/8 | 42 | 22 | 25 |
| KTM-04PF | G1/2 | 46 | 27 | 32 |
| KTM-06PF | G3/4 | 52 | 36 | 41 |
| KTM-08PF | G1 | 60 | 46 | 52 |
Features
Connexion by pulling back the sleeve
Disconnexion by pulling back the female sleeve
Shut off by poppet valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability TEMA Market
Technical Specifications
High grade carbon steel with heat
treated wear parts
NBR
Backup ring in PTFE
-25°Cto +125°C
(-13°Fto +257°F)
According to Is0 7241-2
Fields of application
