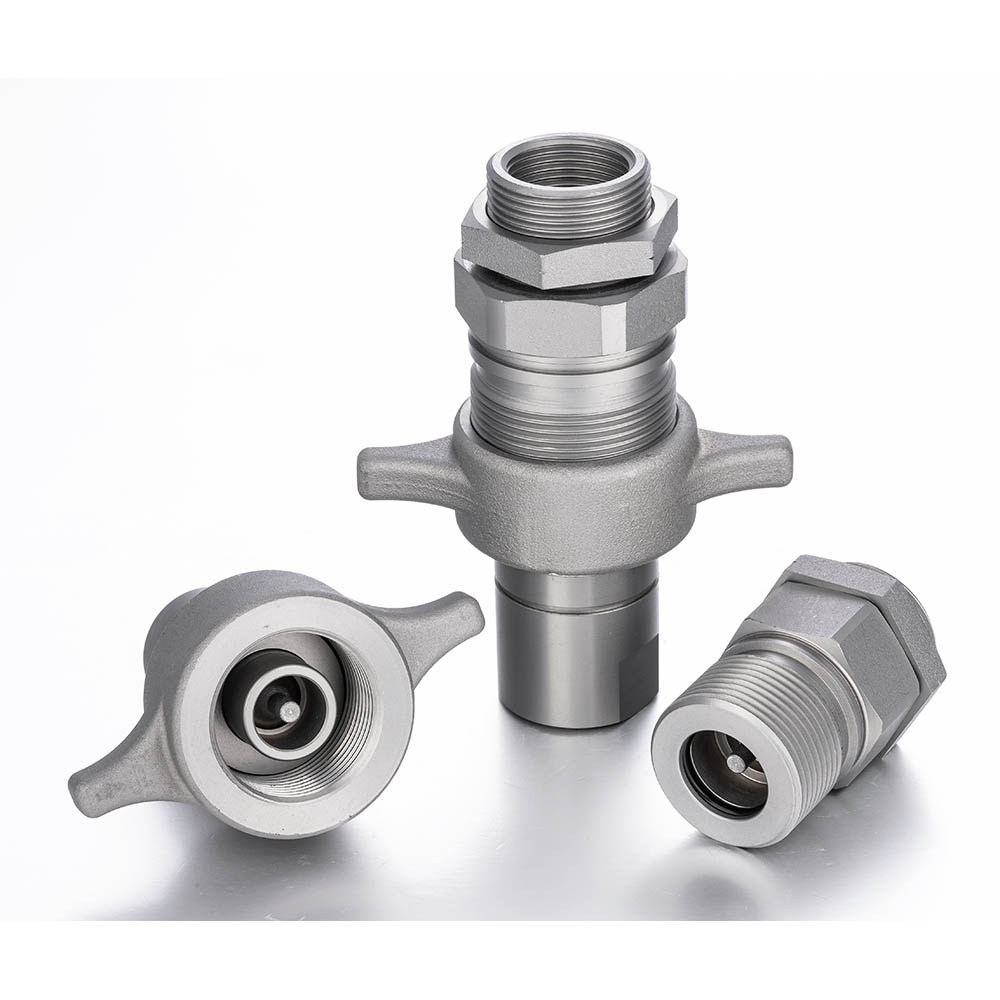

KSG

Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
20	3/4”	35(5000)	32(120)	130(188500)	110(15950)	130(18850)
25	1 ”	30(4350)	42(160)	90(13050)	120(17400)	130(18850)

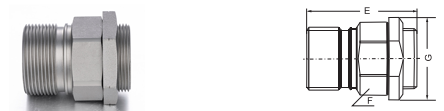

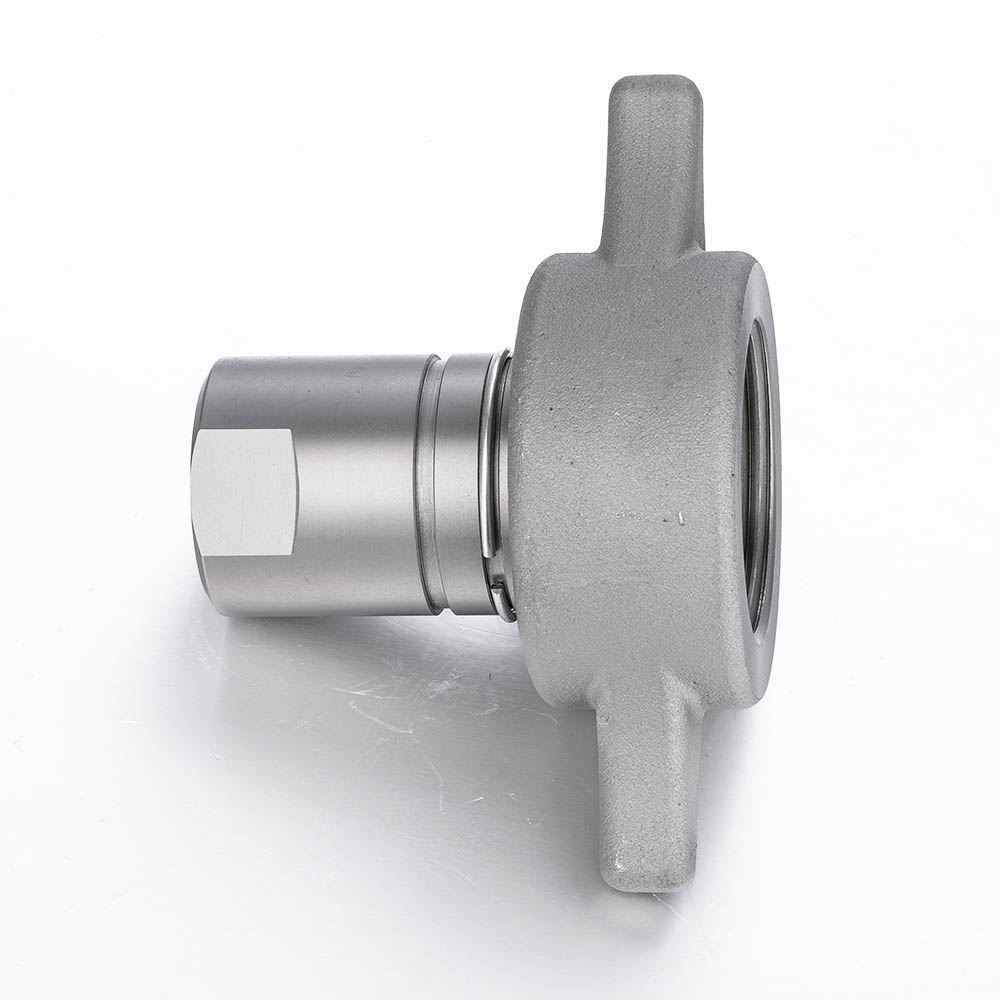

Female

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KSG-06SF	G3/4	78	46	52
KSG-08SF	G1	83	55	63

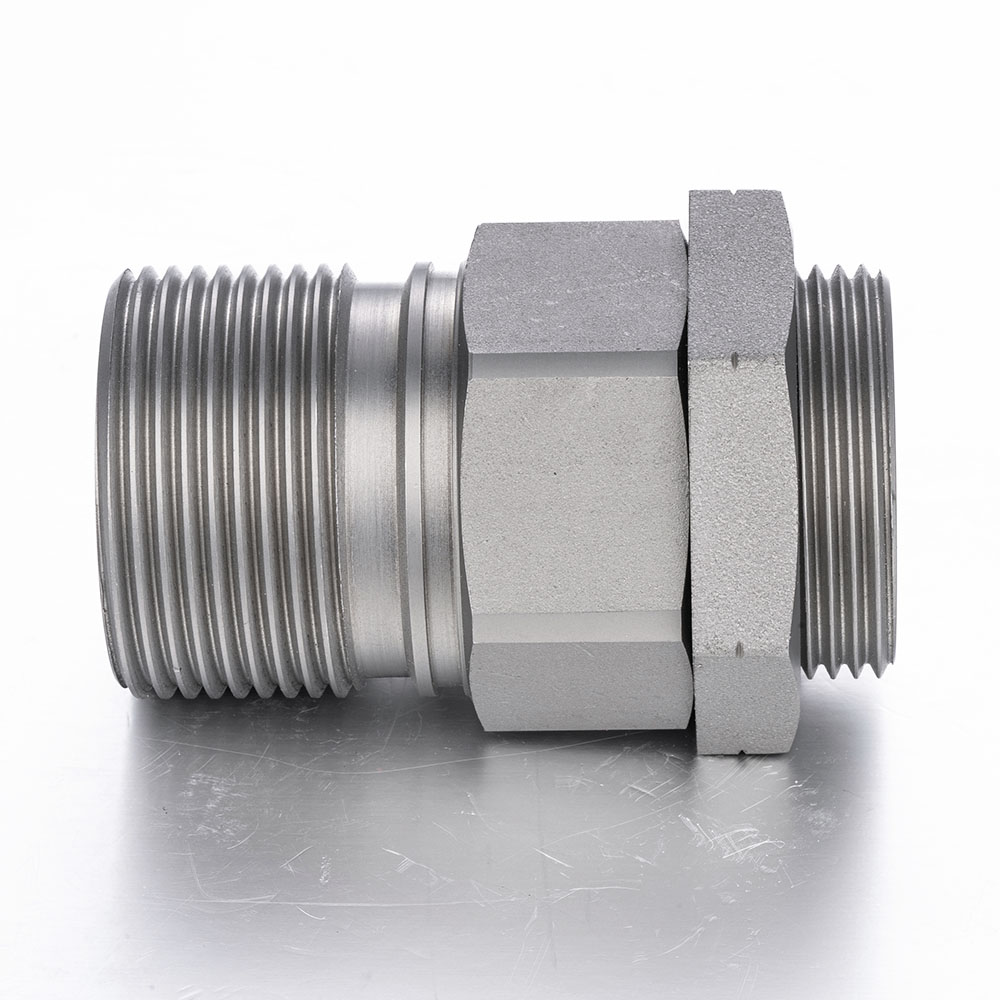

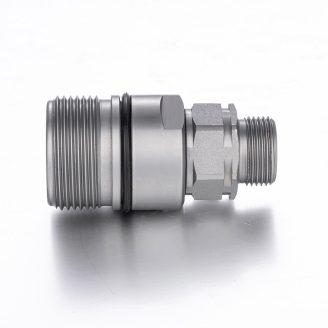

Male

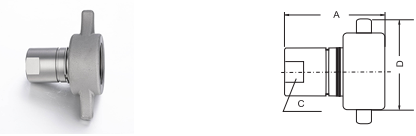

Part No.	Thread	A	C	D
		(mm.)	(mm.)	( mm.)
KSG-06PF	G3/4	78	33	114
KSG-08PF	G1	82	40	114

Features

Connexion by screwing together the two parts
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure
Interchangeability according to Faster
internal Standards
