KPC
Details
| Size | Working pressure | Flow Rate | Burst Pressures | |||
| @0,2 MPa pressure drop |
 |
 |
 |
|||
| mm | inch | MPa (PSI) | I/min(GPM) | MPa(PSI) | MPa(PSI) | MPa(PSI) |
| 6.3 | 1/4” | 35(5000) | 15(3.9) | 140(20000) | 140(20000) | 140(20000) |
| 10 | 3/8″ | 30(4500) | 50(13,2) | 140(20000) | 120(17400) | 120(17400) |
| 12.5 | 1/2″ | 30(4500) | 75(19,8) | 120(17400) | 120(17400) | 120(17400) |
| 19 | 3/4” | 30(4500) | 150(39,6) | 120(17400) | 120(17400) | 120(17400) |
| 25 | 1″ | 25(3625) | 230(60,8) | 100(14500) | 100(14500) | 100(14500) |

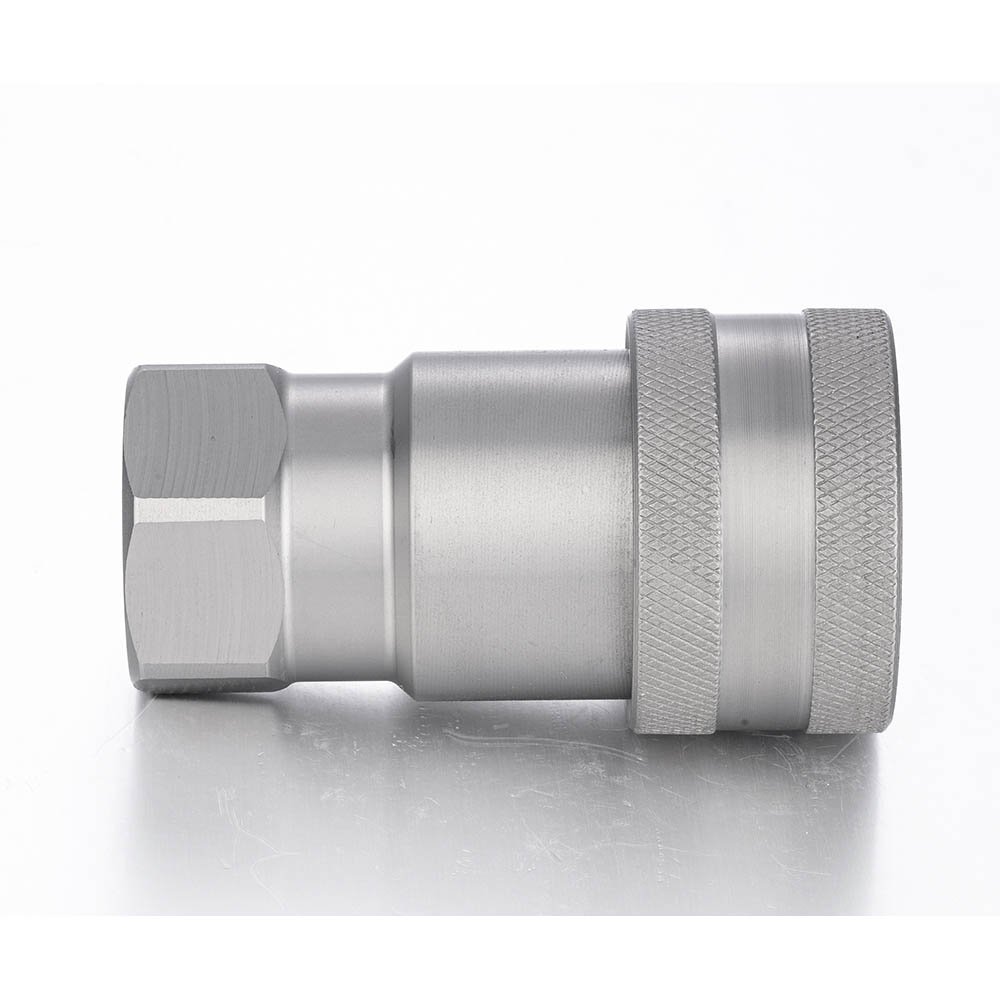

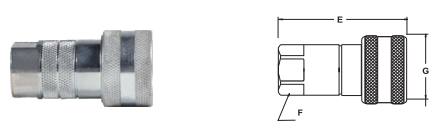

Female
| Part No. | Thread | E | F | G | Part No. | Thread | E | F | G |
| (mm.) | (mm.) | ( mm.) | (in.） | (in.） | (in.） | ||||
| KPC-02SF | G1/4 | 49.0 | 19.0 | 27.0 | KPC-N02SF | NPT1/4 | 1.94 | 0.75 | 1.08 |
| KPC-03SF | G3/8 | 59.0 | 24.0 | 34.0 | KPC-N03SF | NPT3/8 | 2.31 | 0.94 | 1.33 |
| KPC-04SF | G1/2 | 66.0 | 27.0 | 39.0 | KPC-N04SF | NPT1/2 | 2.60 | 1.06 | 1.52 |
| KPC-06SF | G3/4 | 89.0 | 35.0 | 48.0 | KPC-N06SF | NPT3/4 | 3.50 | 1.38 | 1.90 |
| KPC-08SF | G1 | 98.0 | 41.0 | 53.0 | KPC-N08SF | NPT 1 | 3.84 | 1.63 | 2.08 |

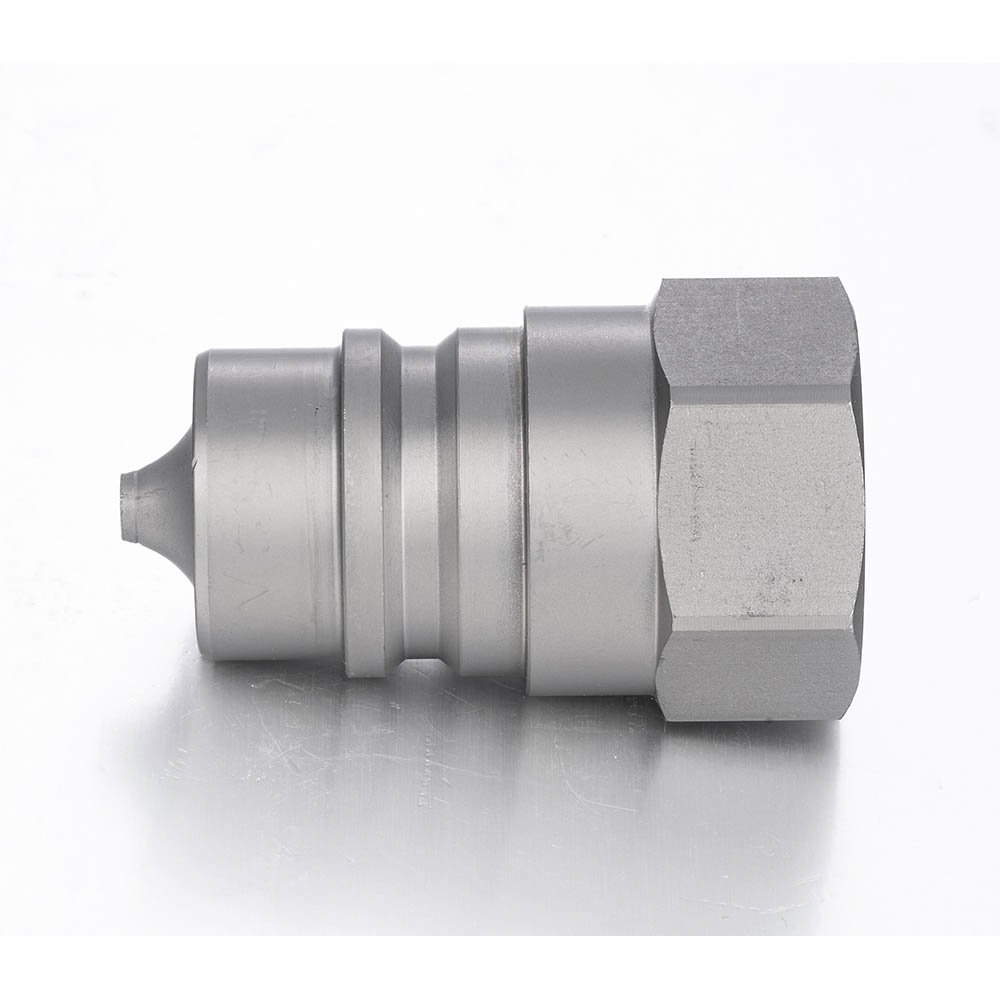

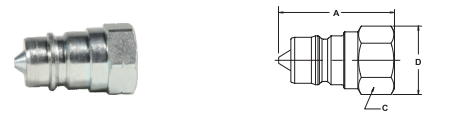

Male
| Part No. | Thread | E | F | G | Part No. | Thread | E | F | G |
| (mm.) | (mm.) | ( mm.) | (in.） | (in.） | (in.） | ||||
| KPC-02PF | G1/4 | 33.0 | 19.0 | 22.0 | KPC-NO2PF | NPT1/4 | 1.31 | 0.75 | 0.87 |
| KPC-03PF | G3/8 | 41.0 | 24.0 | 27.0 | KPC-N03PF | NPT3/8 | 1.60 | 0.94 | 1.08 |
| KPC-04PF | G1/2 | 50.0 | 27.0 | 31.0 | KPC-N04PF | NPT1/2 | 1.95 | 1.06 | 1.23 |
| KPC-06PF | G3/4 | 46.0 | 33.0 | 39.0 | KPC-N06PF | NPT3/4 | 1.81 | 1.31 | 1.52 |
| KPC-08PF | G1 | 71.0 | 41.0 | 48.0 | KPC-N08PF | NPT 1 | 2.79 | 1.63 | 1.88 |
Features
Connexion by pulling back the sleeve
Disconnexion by pulling back the female sleeve
Shut off by poppet valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
KPC Series conforms to the standard oflS0 5675
Interchangeability according to ISO 7241-1 Part A for 1/2″ size only
Technical Specifcations
High grade carbon steel with heat treated wear parts
NBR
Backup ring in PTFE
-25°C to +125°C
(-13°Fto +257°F)
According to 1S0 7241-2
