Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
6.3	1/4”	50(7500)	13(3.3)	150(22500)	160(24000)	170(24200)
10	3/8”	40(5700)	25(6.5)	120(17100)	130(18600)	170(24200)
12.5	1/2″	40(5700)	75(19.8)	120(17100)	140(20000)	140(20000)
20	3/4”	35(5000)	135(35.2)	110(15700)	120(17100)	140(20000)
25	1″	35(5000)	250(66.1)	110(15700)	130(18600)	140(20000)
40	11/2″	35(5000)	450(119)	110(15700)	110(15700)	110(15700)

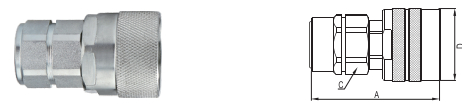

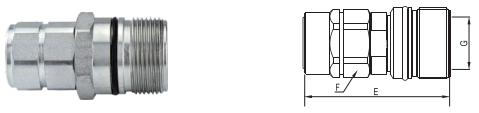

Female

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(in.）	(in.）	(in.）
KCV-02SF	G1/4	58	19	13.1	KCV-N02SF	NPT1/4	2.28	0.75	0.52
KCV-03SF	G3/8	65	24	17.6	KCV-N03SF	NPT3/8	2.55	0.94	0.69
KCV-04SF	G1/2	67	27	22	KCV-N04SF	NPT1/2	2.63	1.06	0.87
KCV-06SF	G3/4	83	38	28.1	KCV-N06SF	NPT3/4	3.27	1.50	1.11
KCV-08SF	G1	95	42	35	KCV-N08SF	NPT1	3.74	1.65	1.38
KCV-12-10SF	G11/4	110	50	54	KCV-12-N10SF	NPT11/4	4.33	1.97	2.13
KCV-12SF	G11/2	121	55	54	KCV-N12SF	NPT11/2	4.76	2.17	2.13

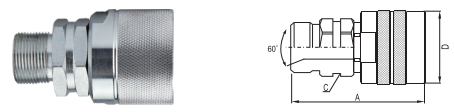

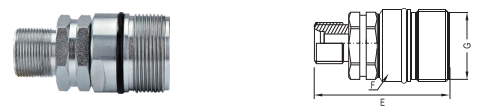

Male

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(in.）	(in.）	(in.）
KCV-02PF	G1/4	64	19	30	KCV-N02PF	NPT1/4	2.52	0.75	1.18
KCV-03PF	G3/8	68	24	34	KCV-NO3PF	NPT3/8	2.68	0.94	1.34
KCV-04PF	G1/2	68	27	42	KCV-N04PF	NPT1/2	2.68	1.06	1.65
KCV-06PF	G3/4	85	38	48	KCV-N06PF	NPT3/4	3.34	1.50	1.89
KCV-08PF	G1	95	42	56	KCV-N08PF	NPT1	3.74	1.65	2.20
KCV-12-10PF	G11/4	131	50	80	KCV-12-N10PF	NPT11/4	5.16	1.97	3.15
KCV-12PF	G11/2	131	55	80	KCV-N12PF	NPT11/2	5.16	2.17	3.15

Female

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KCV-02SM-1408	M14X1.5	59	19	13.1
KCV-03SM-1610	M16X1.5	68	24	17.6
KCV-04SM-1812	M18X1.5	58	27	22
KCV-04SM-2215	M22X1.5	59	27	22
KCV-06SM-2618	M26X1.5	81	36	28.1
KCV-06SM-3022	M30X2.0	84	36	28.1
KCV-08SM-3022	M30X2.0	89	42	35
KCV-08SM-3628	M36X2.0	93	42	35
KCV-12SM-4230	M42X2.0	112	55	54
KCV-12SM-4235	M52X2.0	113	55	54

Male

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KCV-02PM-1408	M14×1.5	59	19	30
KCV-03PM-1610	M16×1.5	68	24	34
KCV-04PM-1812	M18X1.5	64	27	42
KCV-04PM-2215	M22X1.5	65	27	42
KCV-06PM-2618	M26X1.5	84	36	48
KCV-06PM-3022	M30X2.0	84	36	48
KCV-08PM-3022	M30X2.0	89	42	56
KCV-08PM-3628	M36X2.0	89	42	56
KCV-12PM-4230	M42X2.0	131	55	80
KCV-12PM-4235	M52X2.0	131	55	80

Female

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KCV-02SM-1408-L	M14×1.5	72	19	30
KCV-03SM-1610-L	M16X1.5	78	24	34
KCV-04SM-1812-L	M18X1.5	80	27	42
KCV-04SM-2215-L	M22X1.5	81	27	42
KCV-06SM-2618-L	M26X1.5	97	36	48
KCV-06SM-3022-L	M30X2.0	104	36	48
KCV-08SM-3022-L	M30X2.0	117	42	56
KCV-08SM-3628-L	M36×2.0	121	42	56
KCV-12SM-4230-L	M42X2.0	133	55	80
KCV-12SM-4235-L	M52X2.0	133	55	80

Male

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KCV-02PM-1408-L	M14×1.5	73	19	30
KCV-03PM-1610-L	M16X1.5	75	24	34
KCV-04PM-1812-L	M18X1.5	75	27	42
KCV-04PM-2215-L	M22X1.5	78.5	27	42
KCV-06PM-2618-L	M26X1.5	90	36	48
KCV-06PM-3022-L	M30X2.0	97	36	48
KCV-08PM-3022-L	M30X2.0	102.5	42	56
KCV-08PM-3628-L	M36X2.0	102.5	42	56
KCV-12PM-4230-L	M42X2.0	137	55	80
KCV-12PM-4235-L	M52X2.0	147	55	80

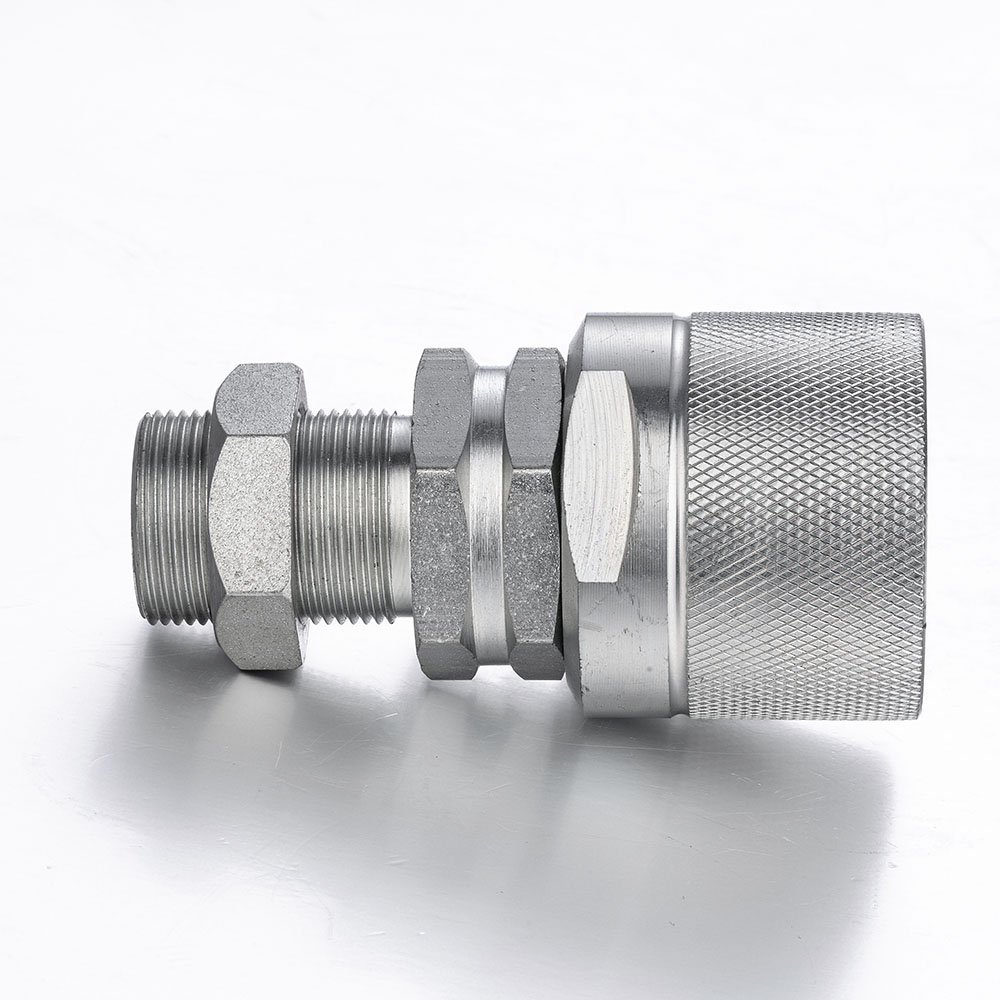

Female

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KCV03-03SM-MW	G3/8	66.5	24	17.8
KCV03-04SM-MW	G1/2	68.5	27	22
KCV04-04SM-MW	G1/2	71	27	22
KCV04-16SM-MW	M16X1.5	65	27	22
KCV04-20SM-MW	M20X1.5	70	27	22
KCV04-22SM-MW	M22X1.5	68	27	22
KCV06-06SM-MW	G3/4	89	38	28.1
KCV06-08SM-MW	G1	100	42	35
KCV08-08SM-MW	G1	102	42	35

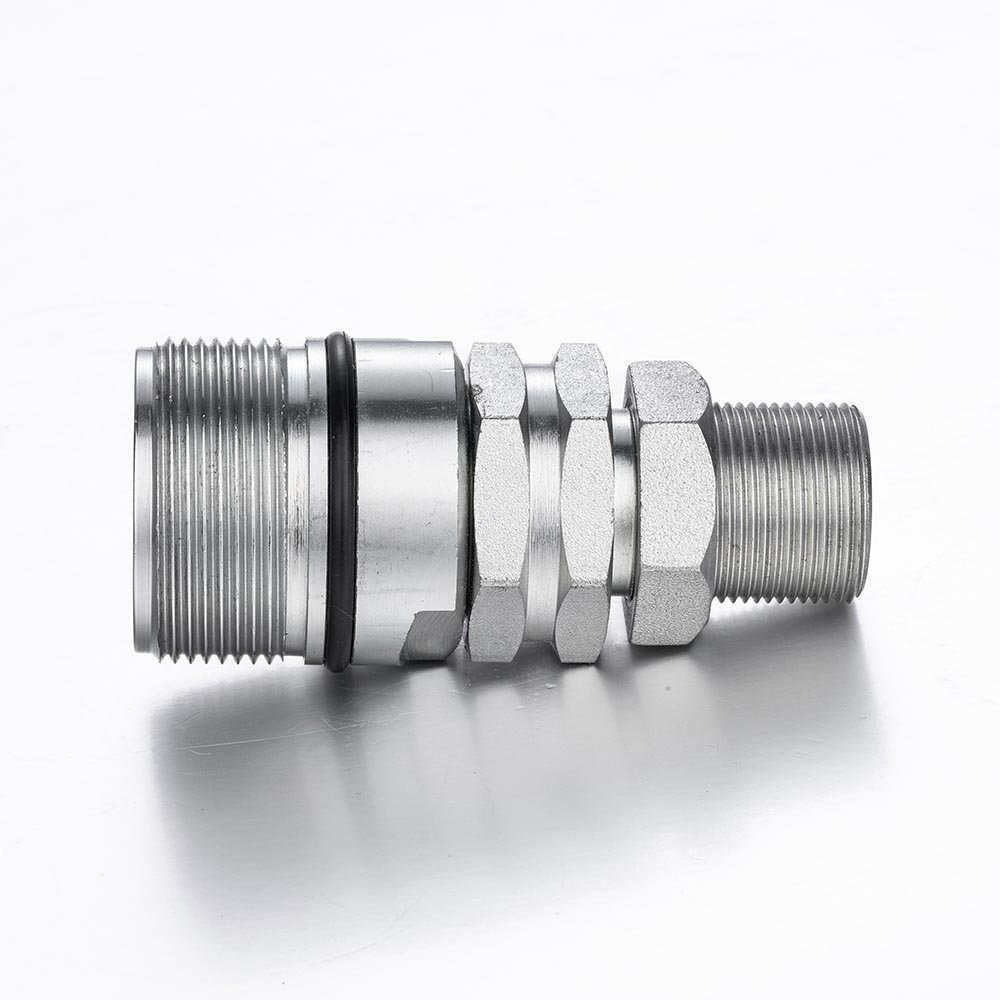

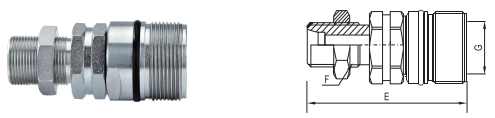

Male

Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)
KCV03-03PM-MW	G3/8	63.5	24	34
KCV03-04PM-MW	G1/2	66	27	42
KCV04-04PM-MW	G1/2	68.5	27	42
KCV04-16PM-MW	M16X1.5	62.5	27	42
KCV04-20PM-MW	M20X1.5	67.5	27	42
KCV04-22PM-MW	M22X1.5	65.5	27	42
KCV06-06PM-MW	G3/4	82	38	48
KCV06-08PM-MW	G1	87.5	42	56
KCV08-08PM-MW	G1	89.5	42	56

Features

Connexion by screwing together the
two parts
Disconnexion by unscrewing the two
parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure
Interchangeability German Market
