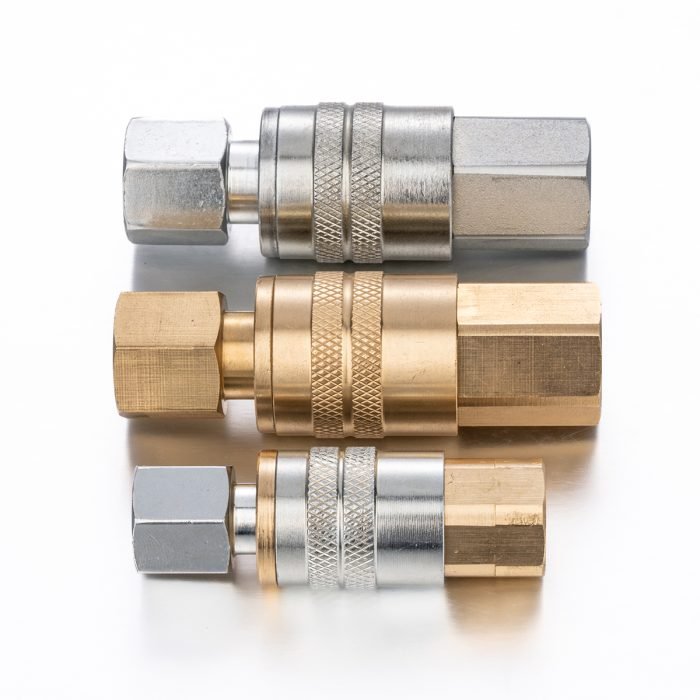

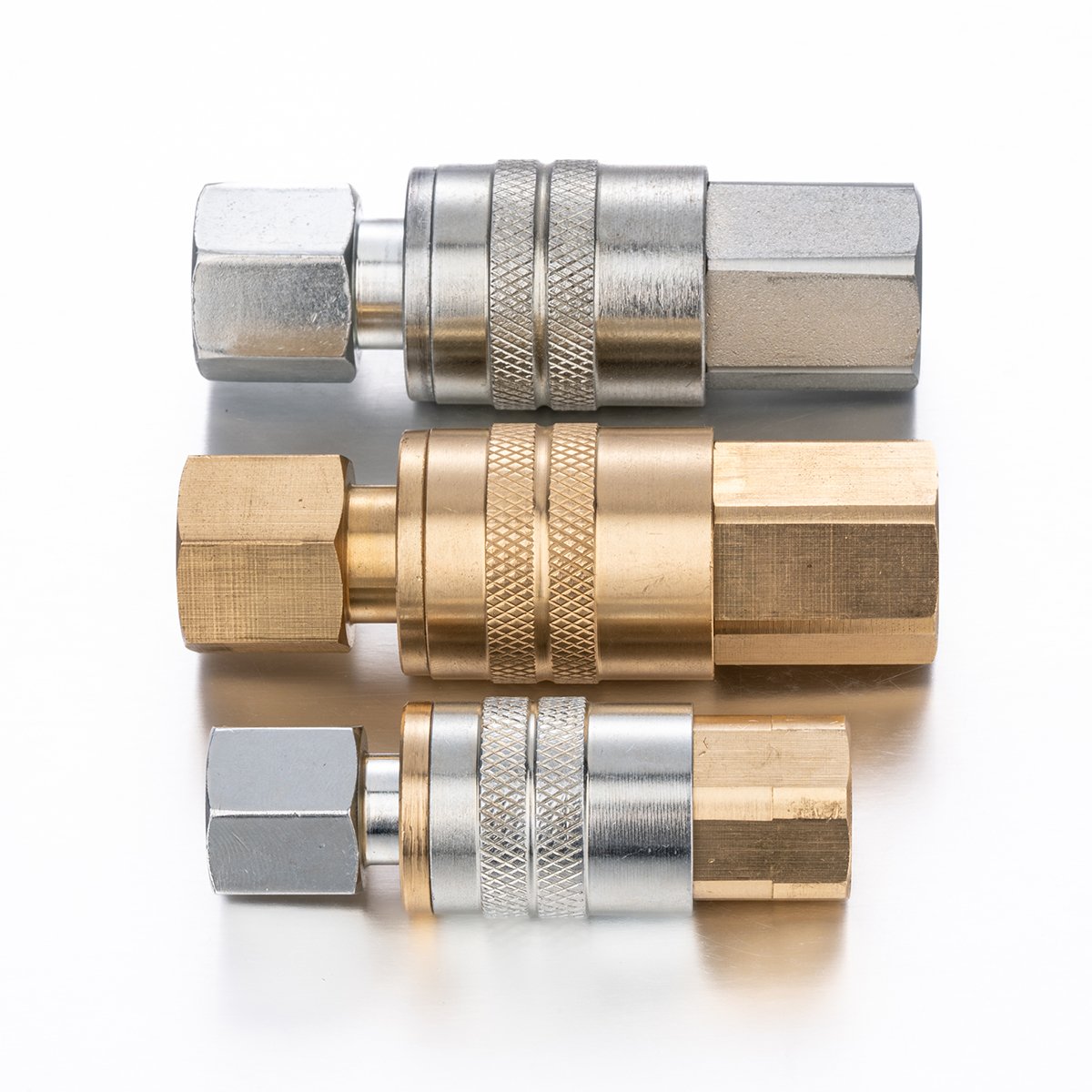

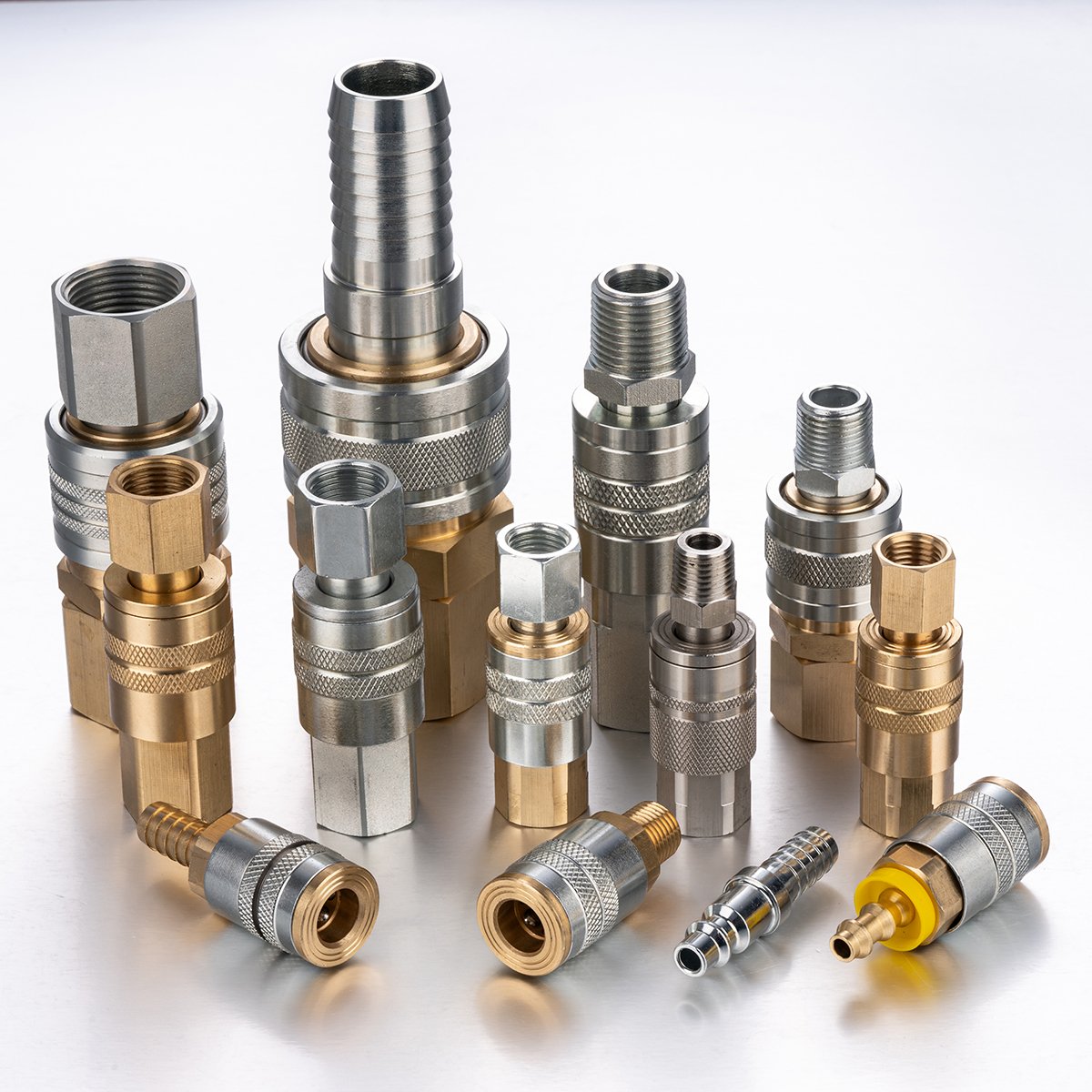

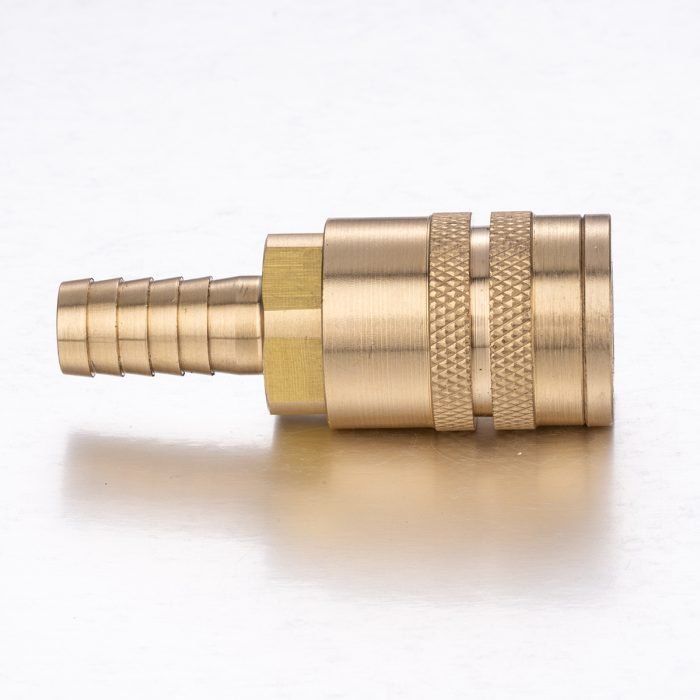

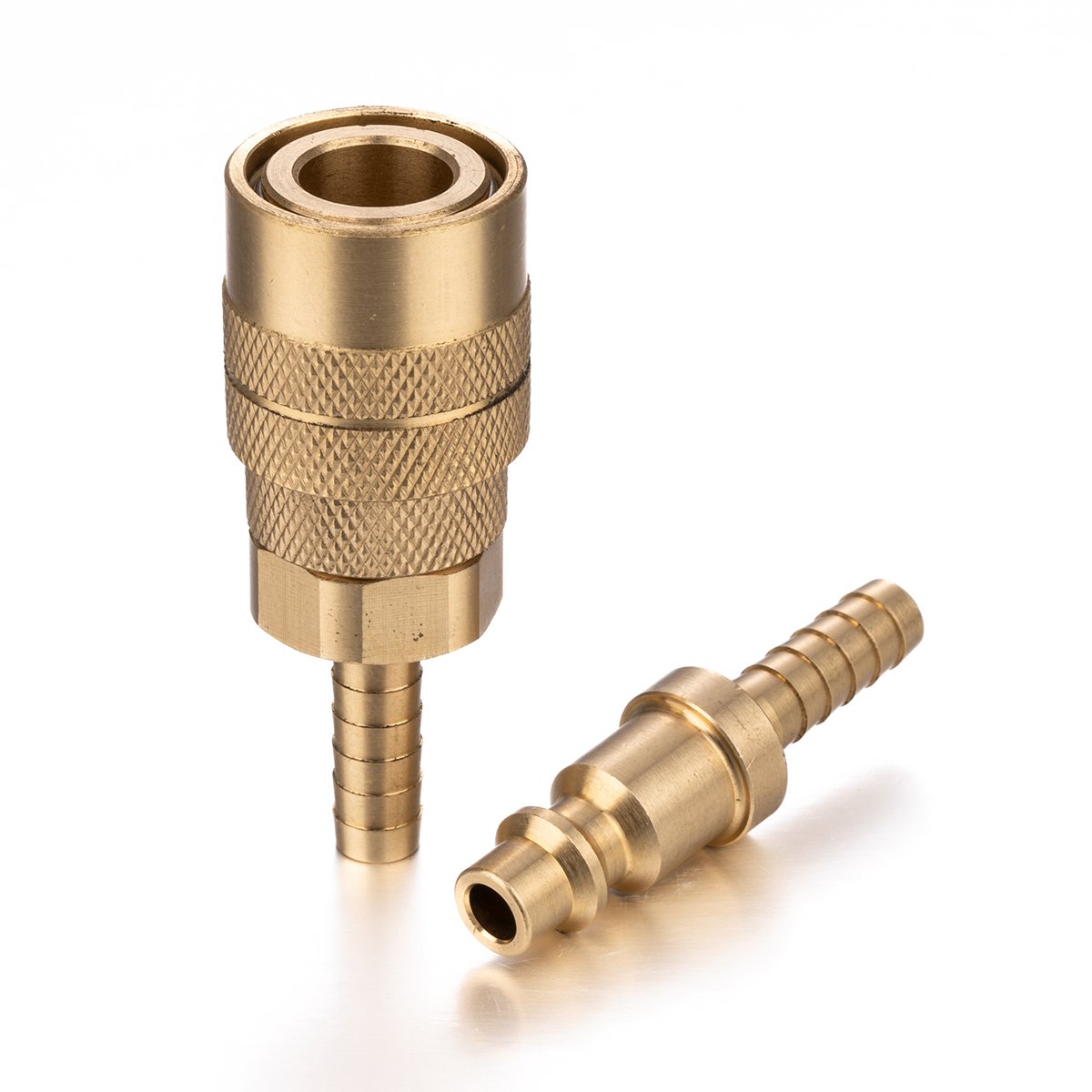

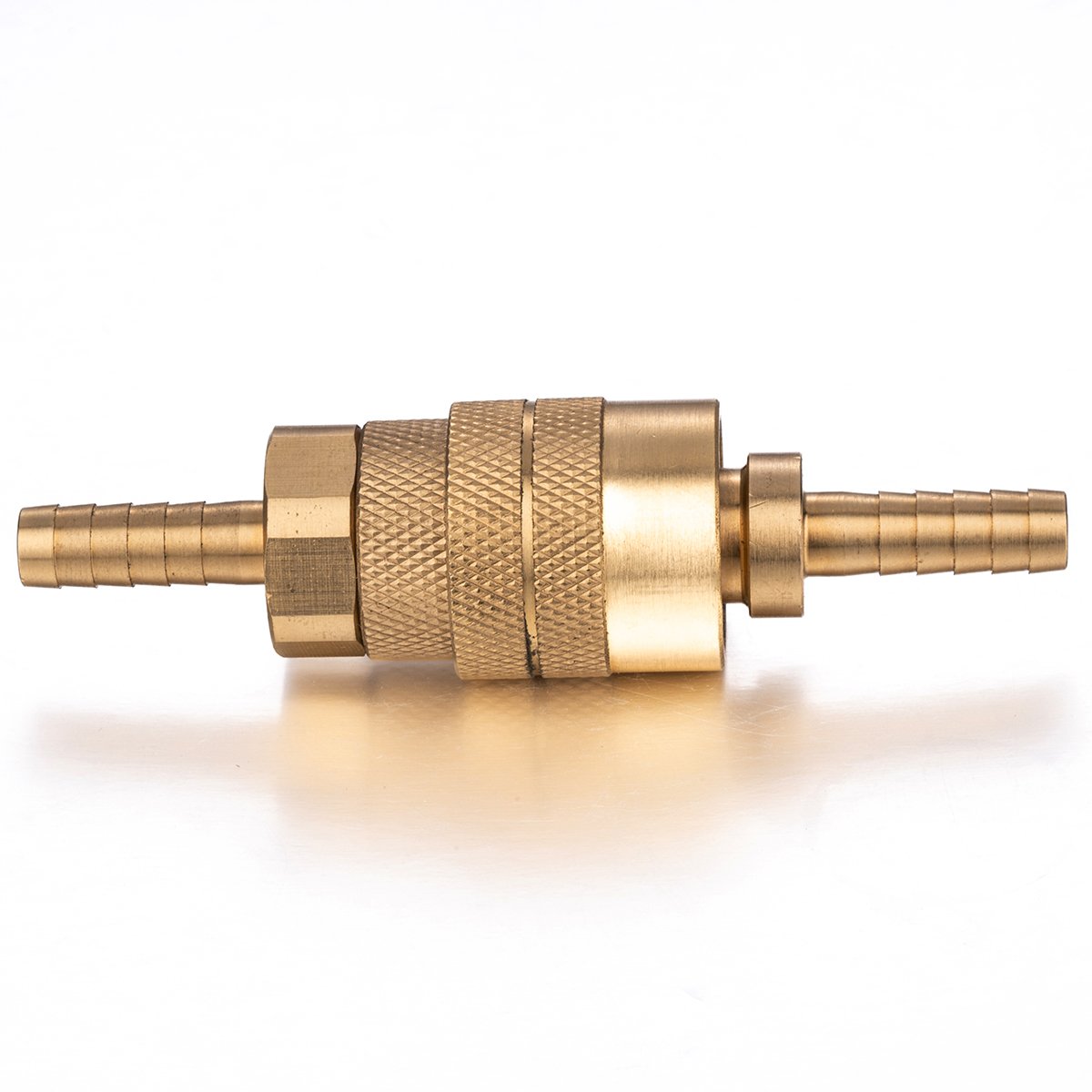

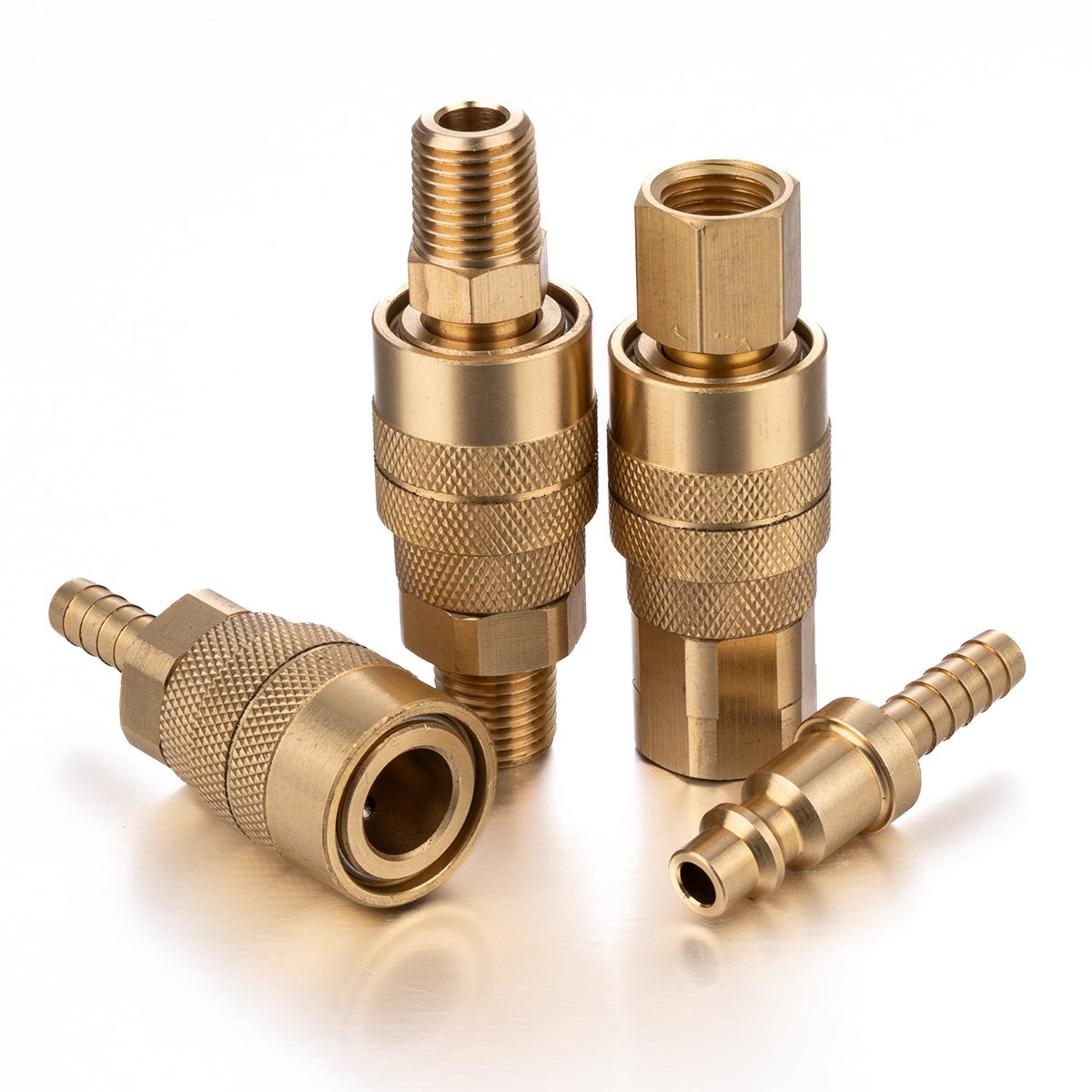

I Series Pneumatic Quick Coupler

3 products sold in last 19 hours

Selling fast! Over 18 people have in their cart

26 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Application & Characteristics

Features

“I” series couplings are interchangeable with INDUSTRIALINTERCHANGE series couplings

“I” series couplings have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.

The “I” Seriesis available in 1/4″ 3/8″ 1/2″body size Standard seal material is nitrile.See the Coupling Selection and Ordering Information guide at the beginning of Section A and the Fluid Compatibility Chart at the end ofthis catalog for optional materials.

Specifications

Body Size：1/4 3/8 1/2

Rated Pressure(PSl)：300 300 300

Temperature Range(Nitrile seal)：-40°to +250°F

Locking Device：6 balls/locking pin

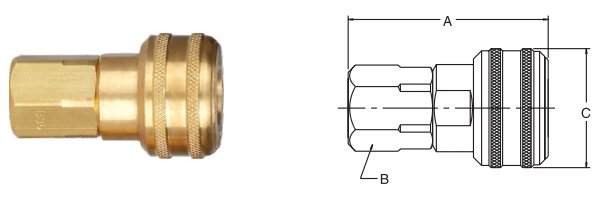

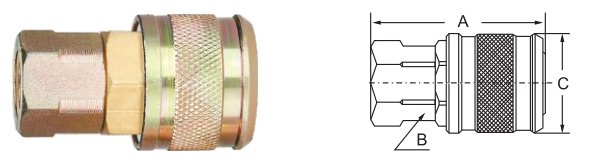

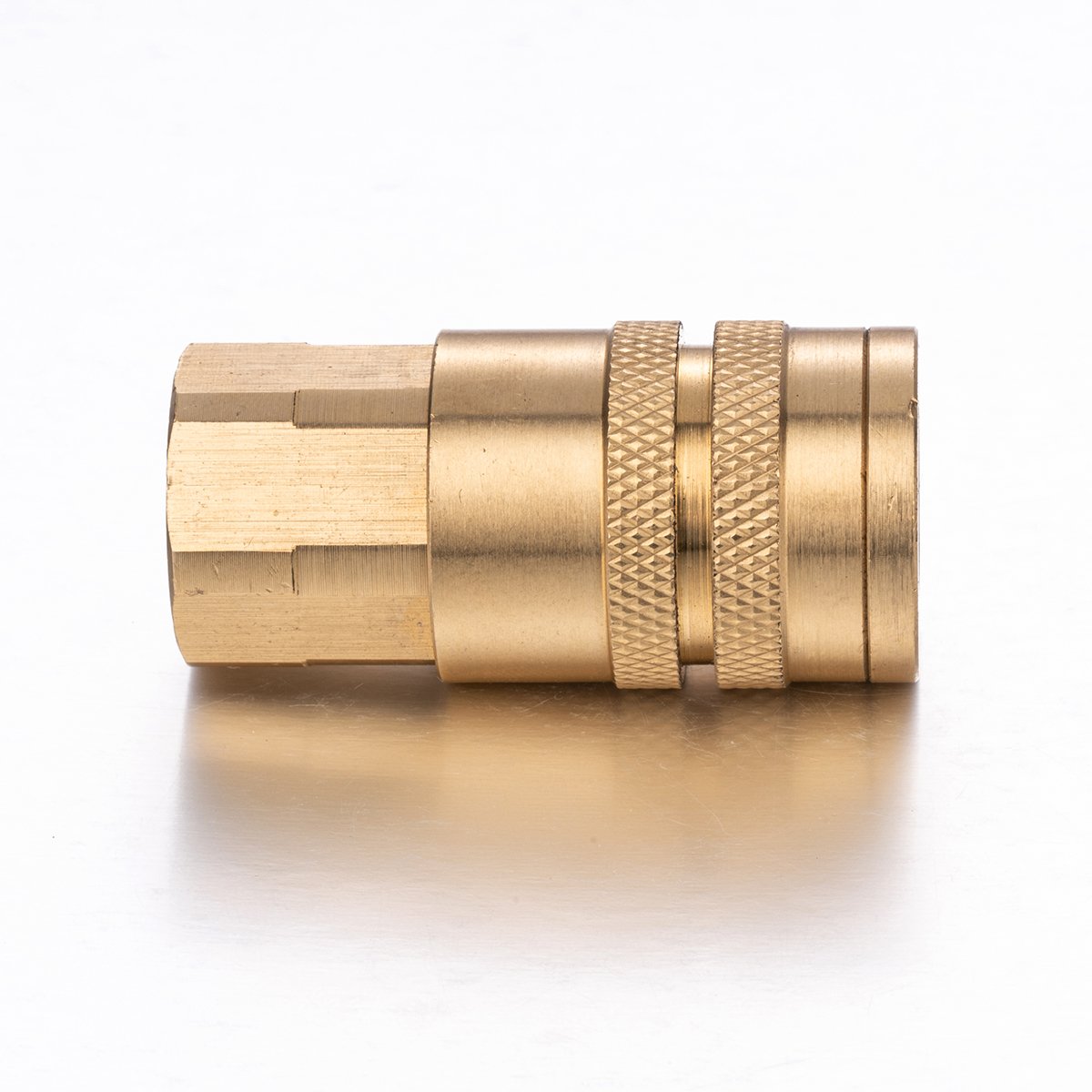

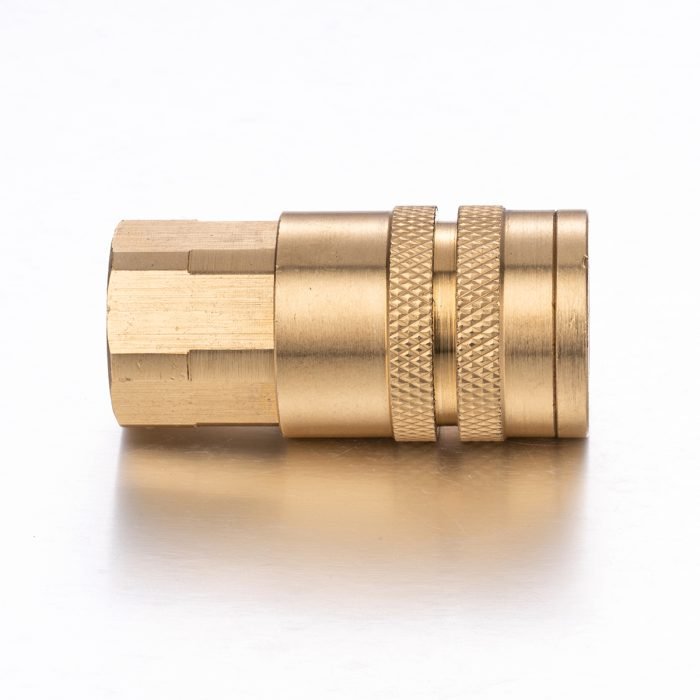

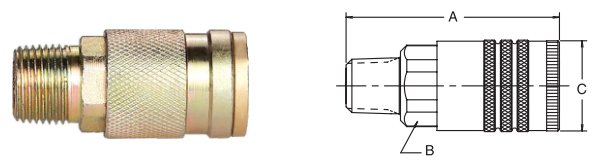

Drawings & Specifications - Female

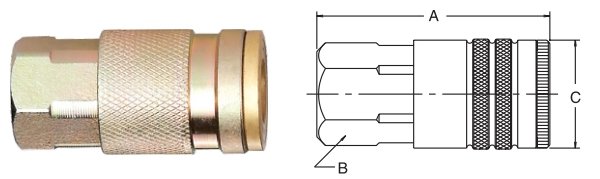

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
ISF2-N01	1/4	1/8-27	1.83	0.75	0.88
ISF2-N02	1/4	1/4-18	1.83	0.75	0.88
ISF2-N03	1/4	3/8-18	1.95	0.81	0.94
ISF3-N02	3/8	1/4-18	2.22	0.88	1.06
ISF3-N03	3/8	3/8-18	2.28	0.88	1.06
ISF3-N04	3/8	1/2-14	2.55	1.00	1.16
ISF4-N03	1/2	3/8-18	2.74	1.00	1.19
ISF4-N04	1/2	1/2-14	2.96	1.00	1.19
ISF4-N06	1/2	3/4-14	3.19	1.25	1.44

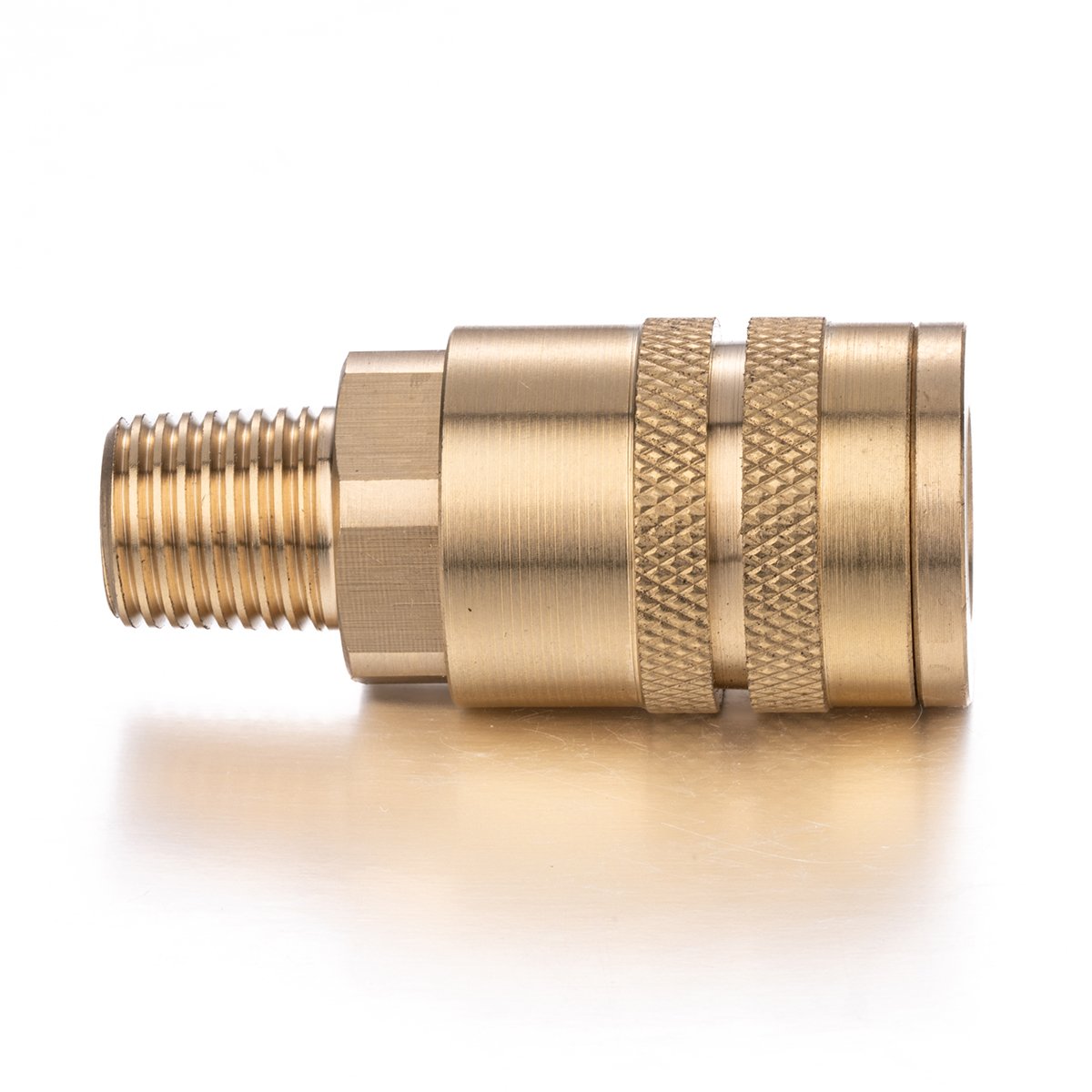

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)

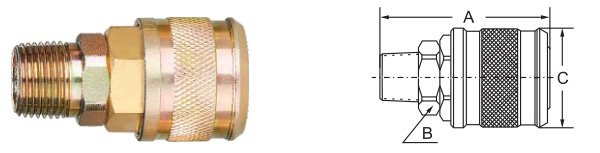

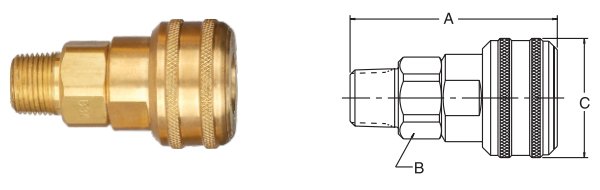

ISM2-N01	1/4	1/8-27	1.89	0.75	0.88
ISM2-N02	1/4	1/4-18	2.05	0.75	0.88
ISM2-N03	1/4	3/8-18	2.08	0.75	0.88
ISM3-N02	3/8	1/4-18	2.36	0.88	1.06
ISM3-N03	3/8	3/8-18	2.39	0.88	1.06
ISM3-N04	3/8	1/2-14	2.55	0.88	1.06
ISF4-N03	1/2	3/8-18	2.93	1.00	1.19
ISF4-N04	1/2	1/2-14	3.08	1.00	1.19
ISF4-N06	1/2	3/4-14	3.21	1.13	1.30

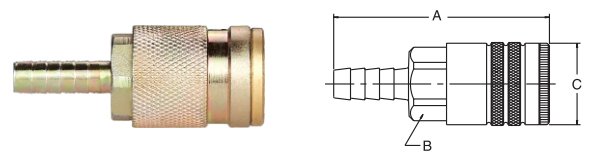

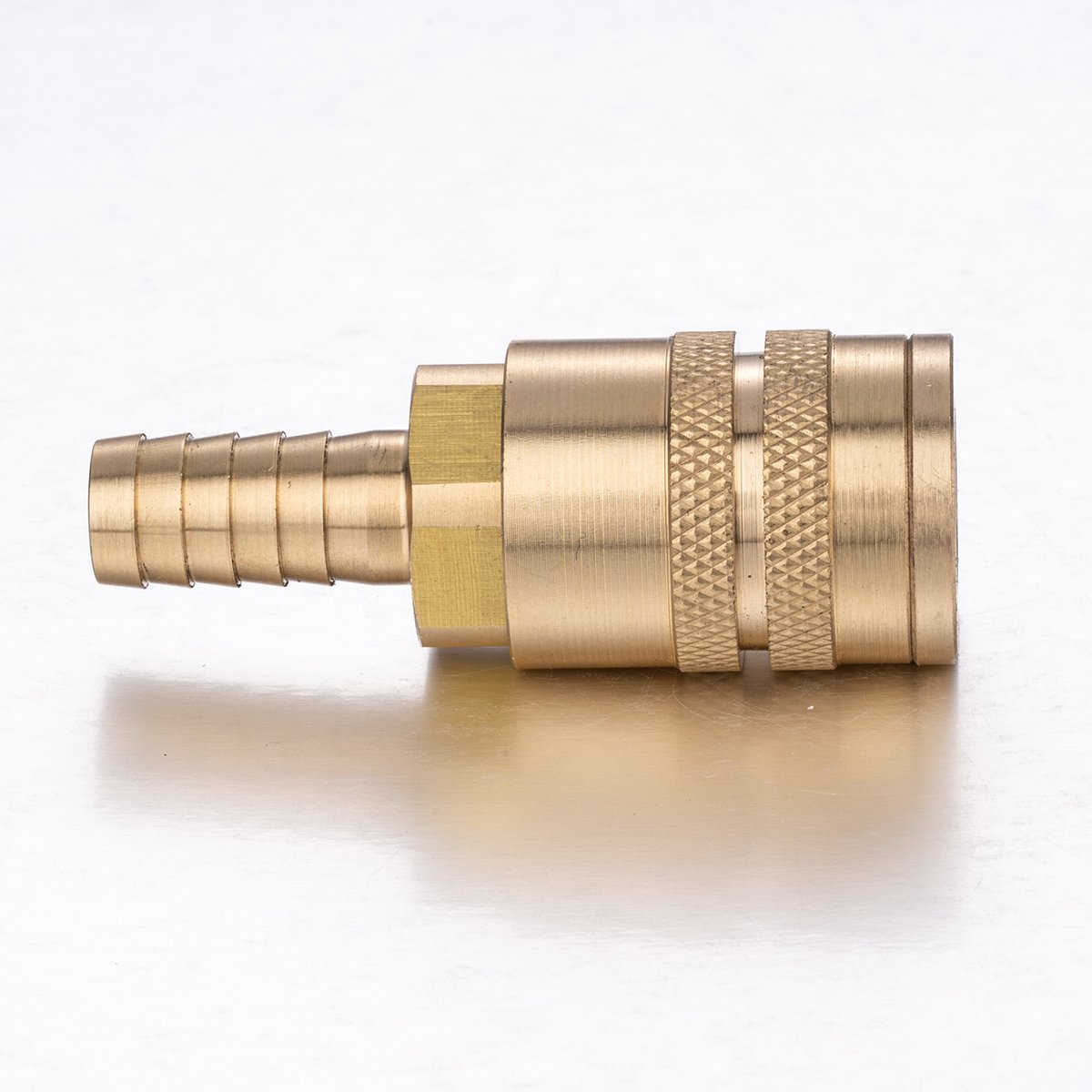

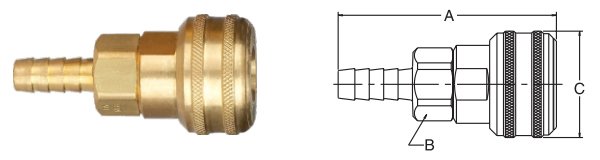

Part No.订货号	Body Size规格(in.)	Hose l.d 软管	A(in.)	B(in.)	C(in.)
ISH2-114	1/4	1/4	2.49	0.75	0.88
ISH2-5/16	1/4	5/16	2.49	0.75	0.88
ISH2-3/8	1/4	3/8	2.49	0.75	0.88
ISH3-3/8	3/8	3/8	2.86	0.88	1.06
ISH3-1/2	3/8	1/2	3.08	0.88	1.06
ISH4-3/8	1/2	3/8	3.37	1	1.19
ISH4-1/2	1/2	1/2	3.62	1	1.19
ISH4-3/4	1/2	3/4	3.96	1	1.19

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
ISFA2-N01	1/4	1/8-27	1.89	0.75	0.88
ISFA2-N02	1/4	1/4-18	2.05	0.75	0.88
ISFA2-N03	1/4	3/8-18	2.08	0.75	0.88
ISFA3-N02	3/8	1/4-18	2.36	0.88	1.06
ISFA3-N03	3/8	3/8-18	2.39	0.88	1.06
ISFA3-N04	3/8	1/2-14	2.55	0.88	1.06
ISFA4-N03	1/2	3/8-18	2.93	1.00	1.19
ISFA4-N04	1/2	1/2-14	3.08	1.00	1.19
ISFA4-N06	1/2	3/4-14	3.21	1.13	1.30

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
ISMA2-N01	1/4	1/8-27	1.89	0.75	0.88
ISMA2-N02	1/4	1/4-18	2.05	0.75	0.88
ISMA2-N03	1/4	3/8-18	2.08	0.75	0.88
ISMA3-N02	3/8	1/4-18	2.36	0.88	1.06
ISMA3-N03	3/8	3/8-18	2.39	0.88	1.06
ISMA3-N04	3/8	1/2-14	2.55	0.88	1.06
ISFA4-N03	1/2	3/8-18	2.93	1.00	1.19
ISFA4-N04	1/2	1/2-14	3.08	1.00	1.19
ISFA4-N06	1/2	3/4-14	3.21	1.13	1.30

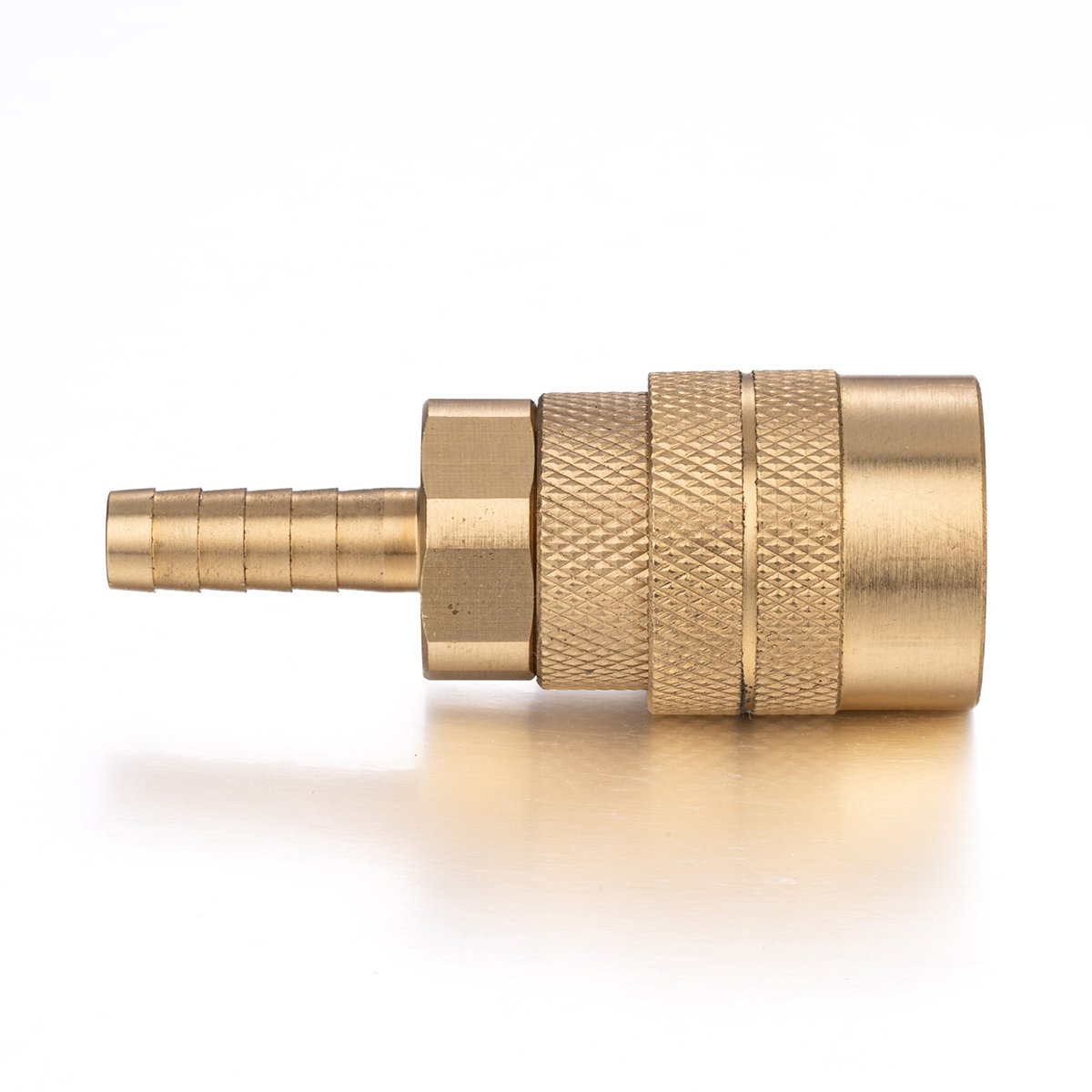

Part No.订货号	Body Size规格(in.)	Hose l.d 软管	A(in.)	B(in.)	C(in.)
ISHA2-1/4	1/4	1/4	2.49	0.75	0.88
ISHA2-5/16	1/4	5/16	2.49	0.75	0.88
ISHA2-3/8	1/4	3/8	2.49	0.75	0.88
ISHA3-3/8	3/8	3/8	2.86	0.88	1.06
ISHA3-1/2	3/8	1/2	3.08	0.88	1.06
ISHA4-3/8	1/2	3/8	3.37	1	1.19
ISHA4-1/2	1/2	1/2	3.62	1	1.19
ISHA4-3/4	1/2	3/4	3.96	1	1.19

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
BSF2-N01	1/4	1/8-27	1.96	0.75	1.2
BSF2-N02	1/4	1/4-18	1.96	0.75	1.2
BSF2-N03	1/4	3/8-18	2.03	0.81	1.2
BSF3-N02	3/8	1/4-18	2.26	0.88	1.39
BSF3-N03	3/8	3/8-18	2.33	0.88	1.39
BSF3-N04	3/8	1/2-14	2.57	1	1.39
BSF4-N03	1/2	3/8-18	2.76	1	1.52
BSF4-N04	1/2	1/2-14	3	1	1.52
BSF4-N06	1/2	3/4-14	3.12	1.25	1.52

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
BSM2-N01	1/4	1/8-27	2.03	0.75	1.2
BSM2-N02	1/4	1/4-18	2.18	0.75	1.2
BSM2-N03	1/4	3/8-18	2.18	0.75	1.2
BSM3-N02	3/8	1/4-18	2.38	0.88	1.39
BSM3-N03	3/8	3/8-18	2.44	0.88	1.39
BSM3-N04	3/8	1/2-14	2.57	0.88	1.39
BSM4-N03	1/2	3/8-18	2.92	1	1.52
BSM4-N04	1/2	1/2-14	3.09	1	1.52
BSM4-N06	1/2	3/4-14	3.12	1.13	1.52

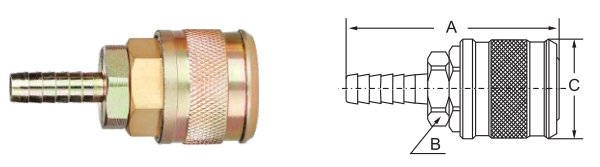

Part No.订货号	Body Size规格(in.)	Hose l.d 软管	A(in.)	B(in.)	C(in.)
BSH2-1/4	1/4	1/4	2.62	0.75	1.2
BSH2-5/16	1/4	5/16	2.62	0.75	1.2
BSH2-3/8	1/4	3/8	2.62	0.75	1.2
BSH3-3/8	3/8	3/8	2.85	0.88	1.39
BSH3-1/2	3/8	1/2	2.85	0.88	1.39
BSH4-1/2	1/2	1/2	3.33	1	1.52
BSH4-3/4	1/2	3/4	3.86	1	1.52

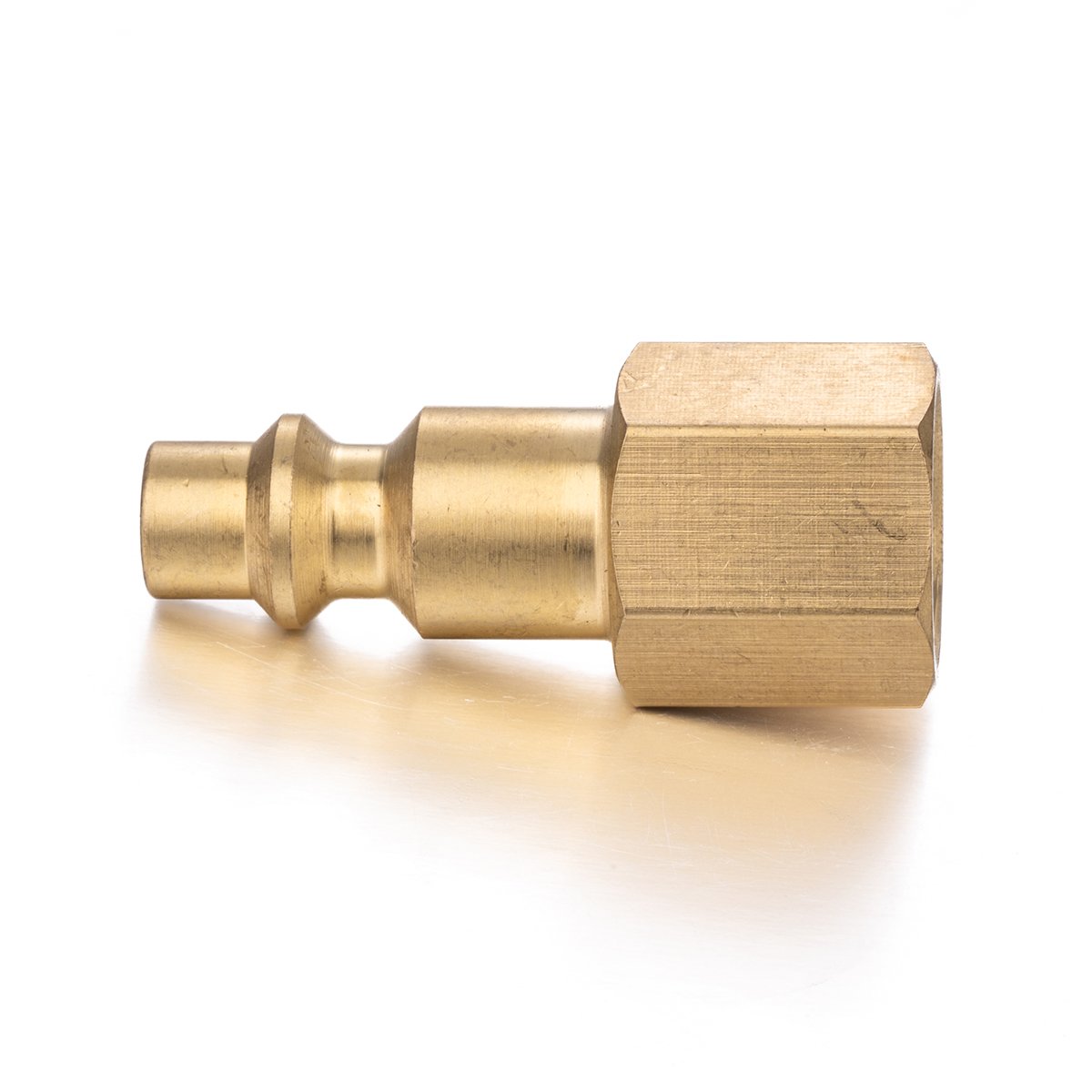

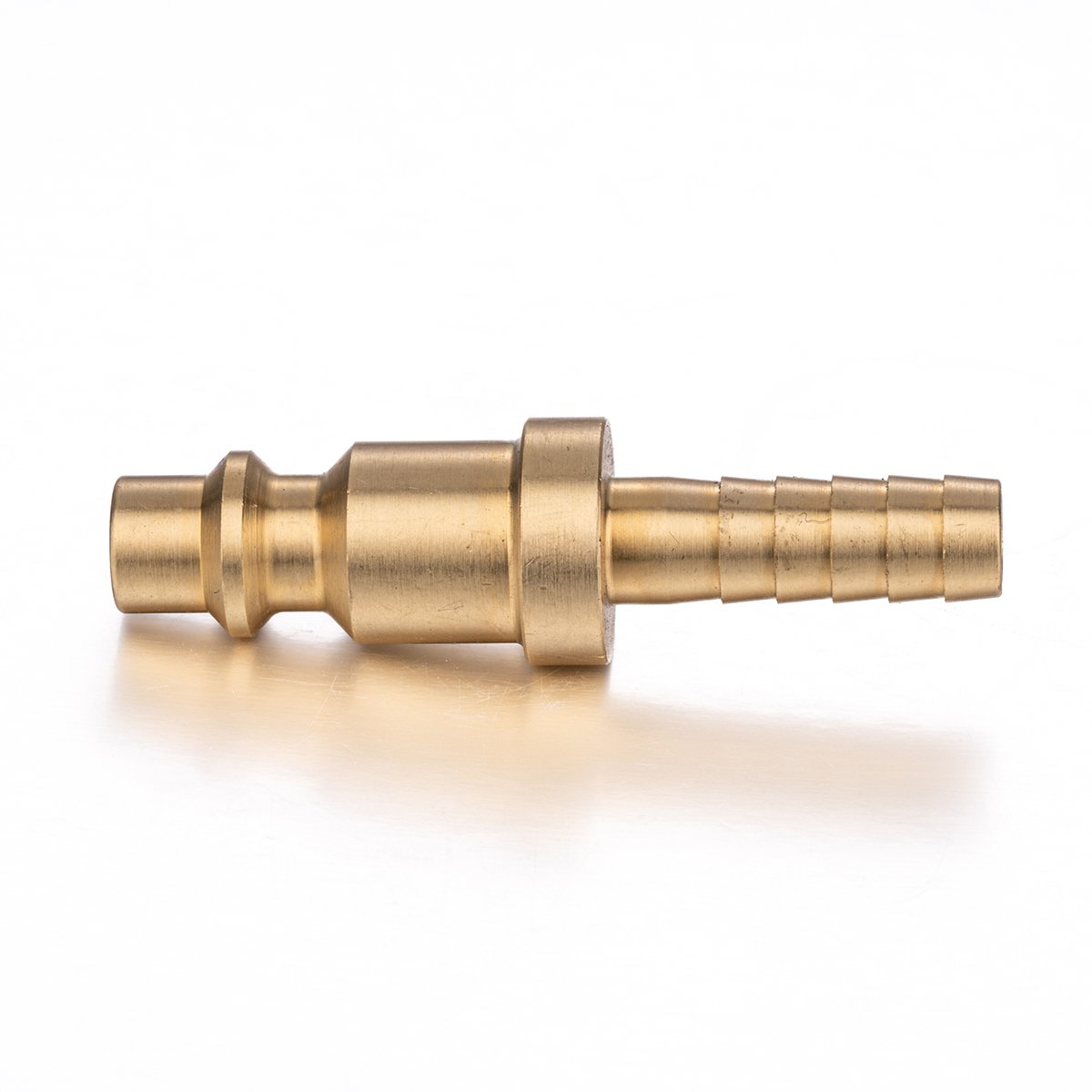

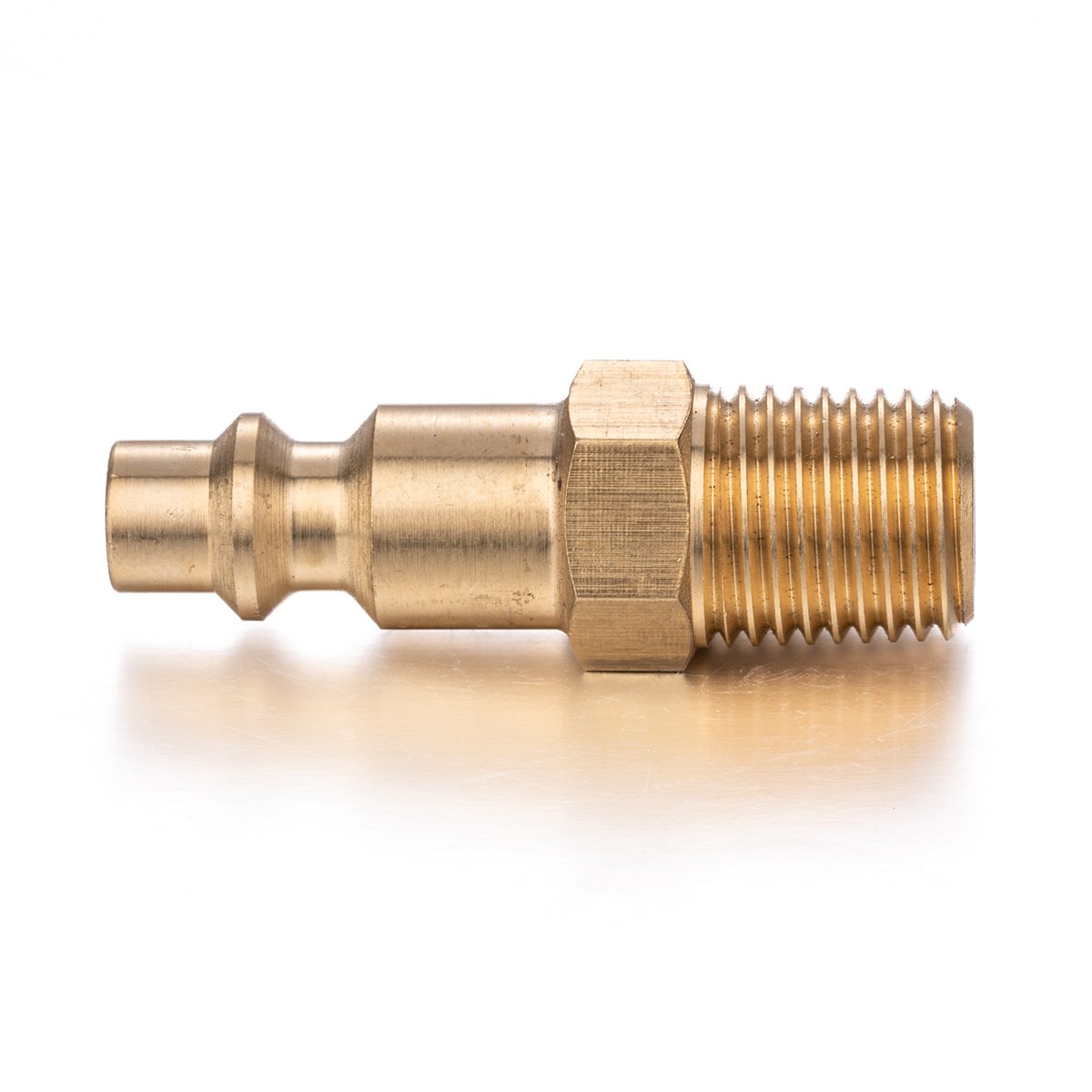

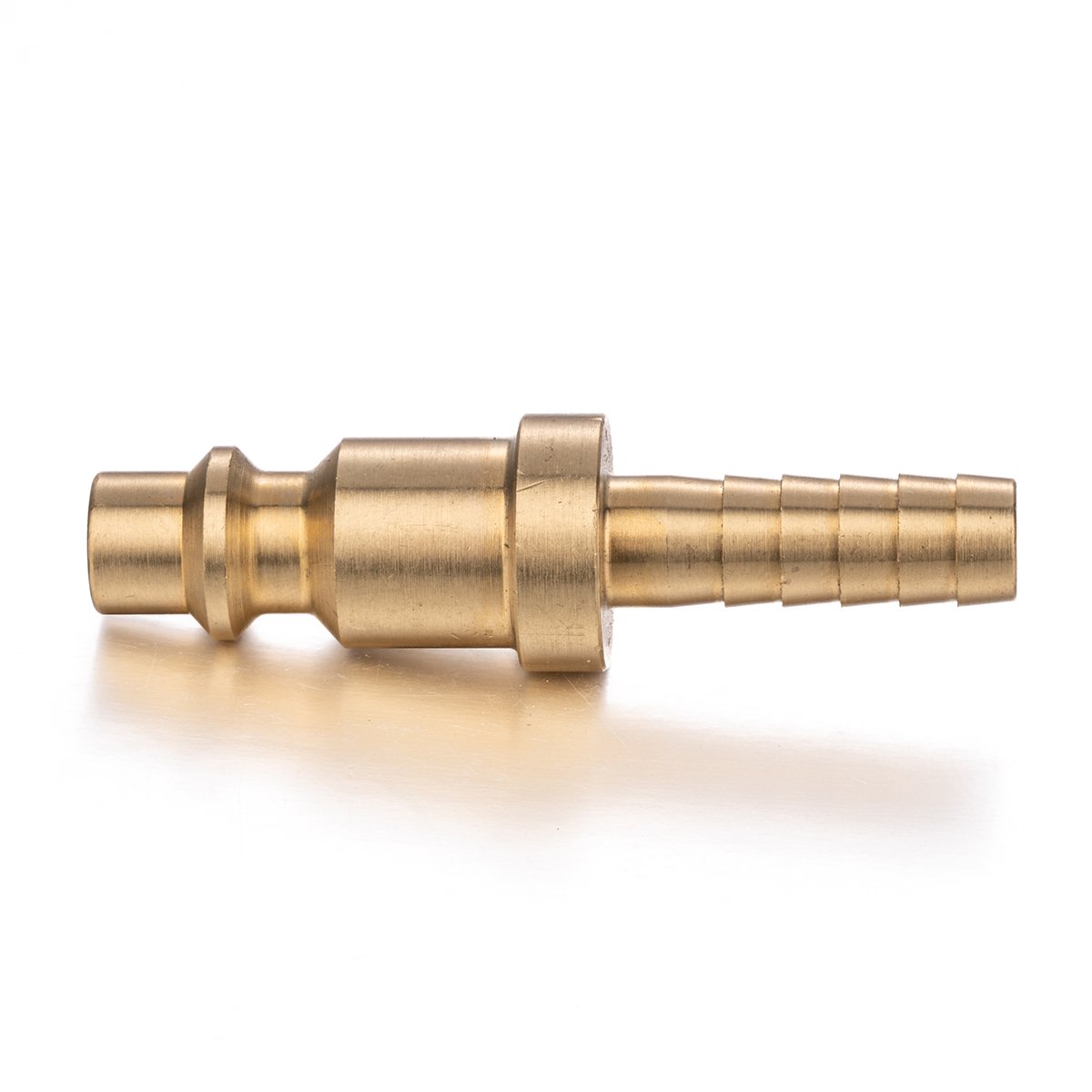

Drawings & Specifications - Male

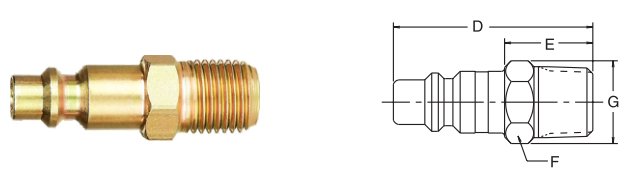

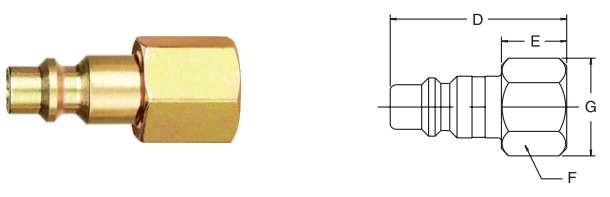

Part No订货号Brass铜	Body Size规格(in.)	PartNo订货号Steel碳钢	Thread 螺纹 NPT	D(in.)	E(in.)	F(in.)	G(in.)
IPF2-NO1	1/4	IPF2-N01-S	1/8-27	1.38	0.61	0.5	0.58
IPF2-N02	1/4	IPF2-N02-S	1/4-18	1.56	0.8	0.62	0.72
IPF2-N03	1/4	IPF2-N03-S	3/8-18	1.6	0.83	0.81	0.94
IPF3-N02	3/8	IPF3-N02-S	1/4-18	1.6	0.65	0.62	0.72
IPF3-N03	3/8	IPF3-N03-S	3/8-18	1.69	0.74	0.81	0.94
IPF3-N04	3/8	IPF3-N04-S	1/2-14	1.84	0.9	1	1.16
IPF4-N03	1/2	IPF4-N03-S	3/8-18	2.03	0.79	0.81	0.94
IPF4-N04	1/2	IPF4-N04-S	1/2-14	2.25	1.01	1	1.16
IPF4-NO6	1/2	IPF4-N06-S	3/4-14	2.38	1.13	1.25	1.44

Part No订货号Brass铜	Body Size规格(in.)	PartNo订货号Steel碳钢	Thread 螺纹 NPT	D(in.)	E(in.)	F(in.)	G(in.)
IPM2-N01	1/4	IPM2-N01-S	1/8-27	1.56	0.8	0.5	0.58
IPM2-N02	1/4	IPM2-N02-S	1/4-18	1.72	0.95	0.56	0.65
IPM2-N03	1/4	IPM2-N03-S	3/8-18	1.81	1.05	0.69	0.8
IPM3-NO1	3/8	IPM3-N01-S	1/8-27	1.72	0.77	0.62	0.72
IPM3-N02	3/8	IPM3-N02-S	1/4-18	1.88	0.93	0.62	0.72
IPM3-N03	3/8	IPM3-N03-S	3/8-18	1.91	0.96	0.69	0.8
IPM3-N04	3/8	IPM3-N04-S	1/2-14	2.12	1.18	0.88	1.02
IPM4-N03	1/2	IPM4-N03-S	3/8-18	2.31	1.07	0.69	0.79
IPM4-N04	1/2	IPM4-N04-S	1/2-14	2.48	1.22	0.88	1.01
IPM4-N06	1/2	IPM4-N06-S	3/4-14	2.53	1.29	1.13	1.3

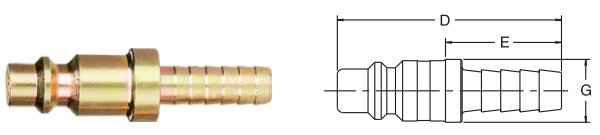

Part No订货号Brass铜	Body Size规格(in.)	PartNo订货号Steel碳钢	Hose l.d 软管	D(in.)	E(in.)	F(in.)
IPH2-1/4	1/4	IPH2-1/4-S	1/4	2.09	1.33	0.55
IPH2-5/16	1/4	IPH2-5/16-S	5/16	2.09	1.33	0.55
IPH2-3/8	1/4	IPH2-3/8-S	3/8	2.09	1.33	0.55
IPH3-3/8	3/8	IPH3-3/8-S	3/8	2.19	1.24	0.62
IPH3-1/2	3/8	IPH3-1/2-S	1/2	2.19	1.52	0.68
IPH4-3/8	1/2	IPH4-3/8-S	3/8	2.53	1.29	0.68
IPH4-1/2	1/2	IPH4-1/2-S	1/2	2.53	1.57	0.68
IPH4-3/4	1/2	IPH4-3/4-S	3/4	3.06	1.91	0.93
