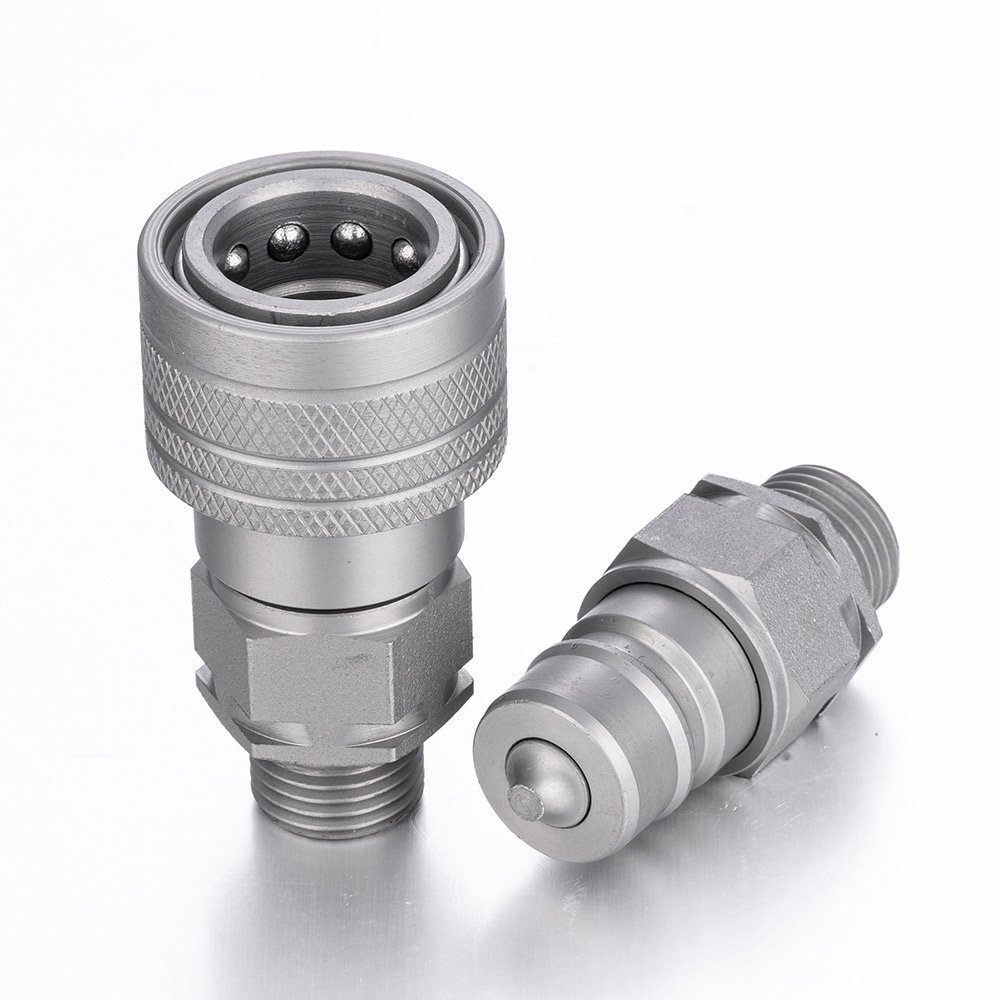

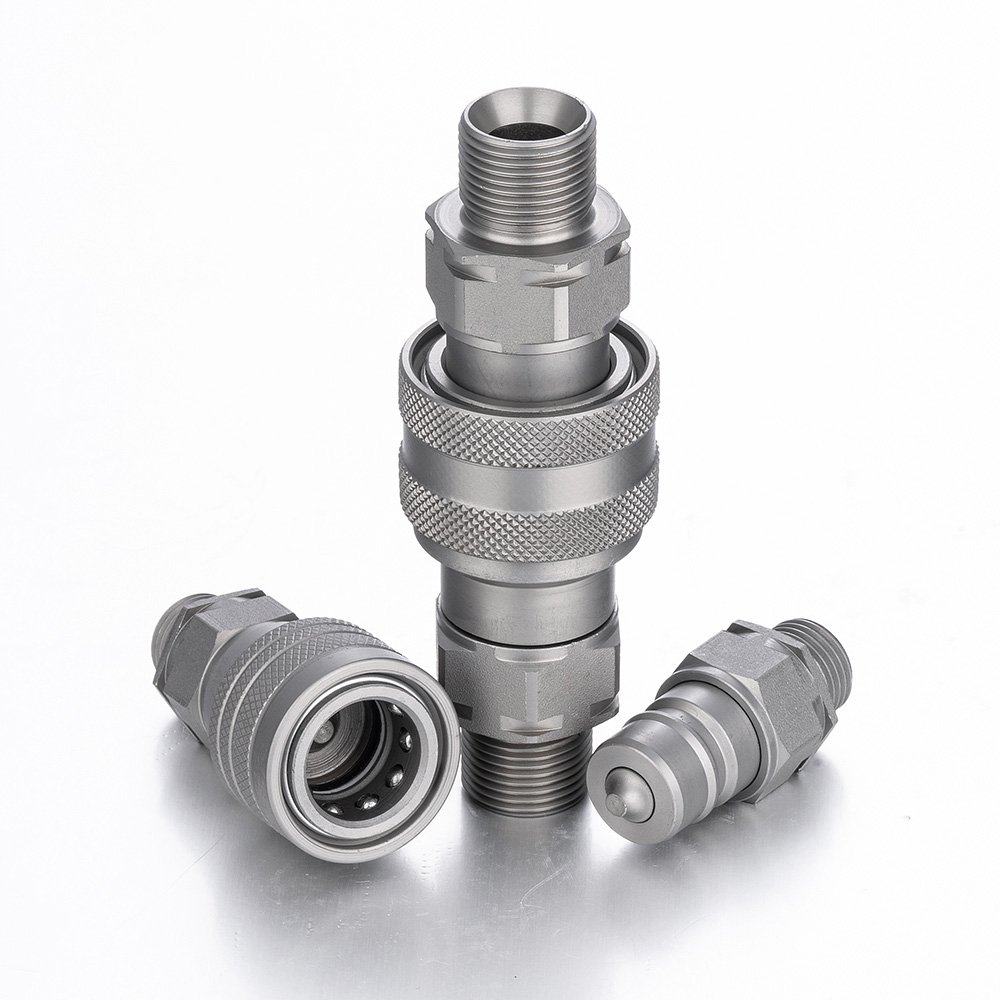

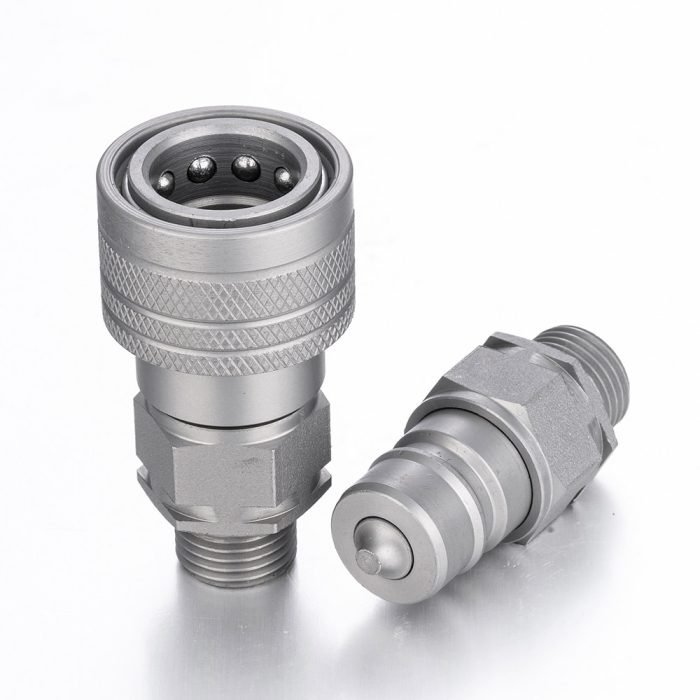

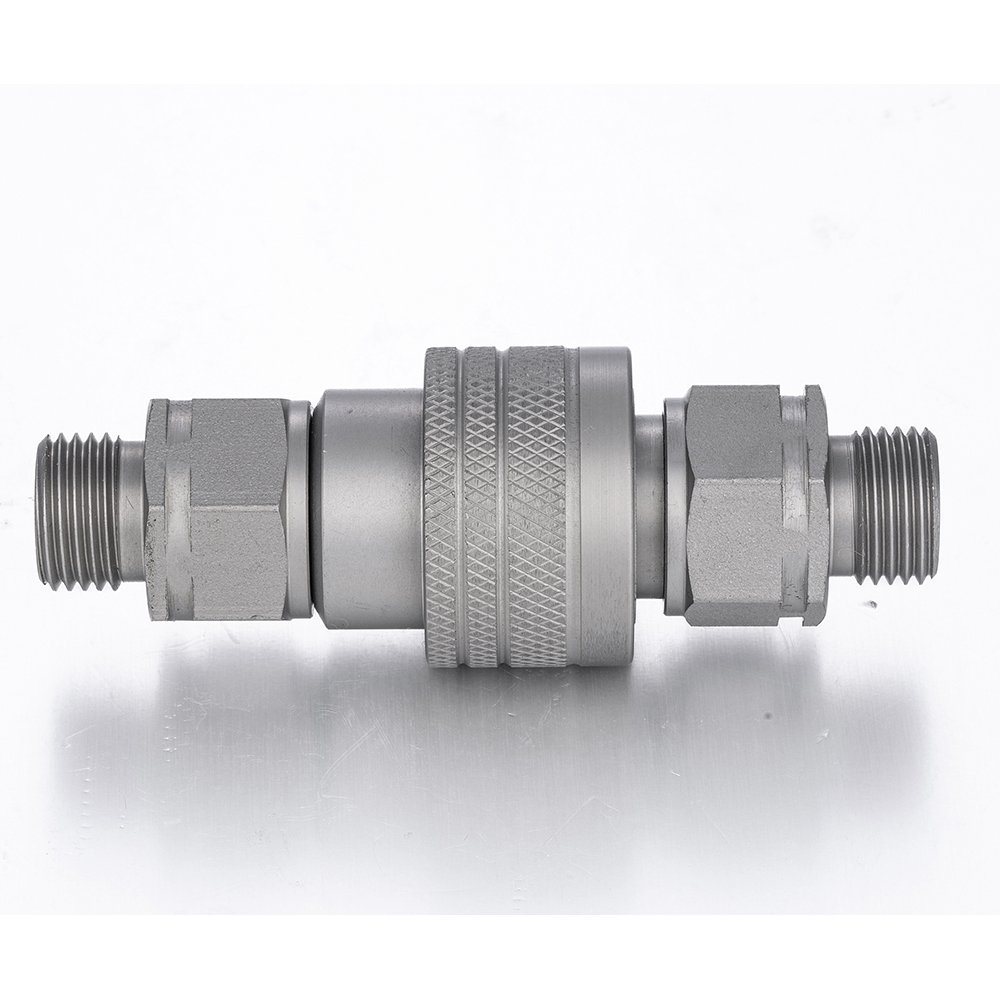

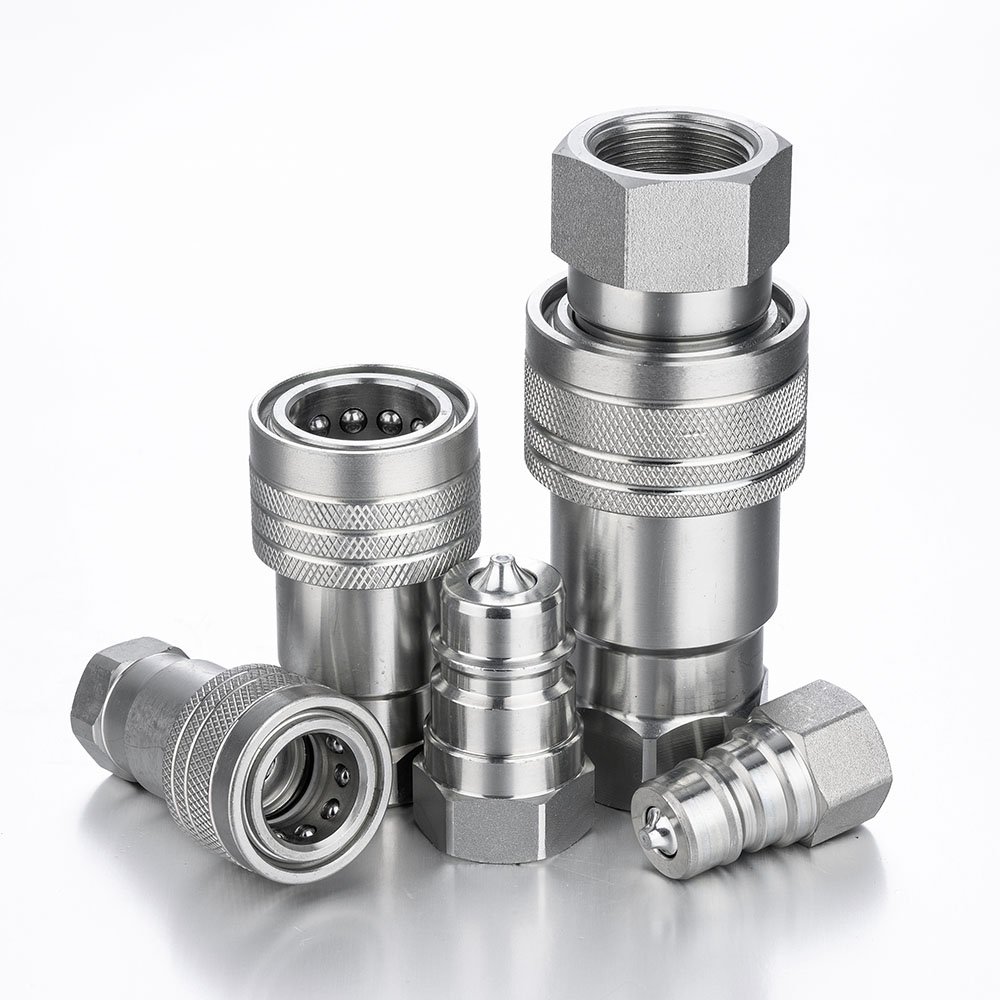

KZE

5 products sold in last 5 hours

Selling fast! Over 10 people have in their cart

20 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Details

Size	Working pressure		Flow Rate	Burst Pressures
			@0,2 MPa pressure drop
mm	inch	MPa (PSI)	I/min(GPM)	MPa(PSI)	MPa(PSI)	MPa(PSI)
6.3	1/4”	35(5000)	9(2.4)	160(24000)	120(18000)	140(21000)
10	3/8”	30(4500)	30(7.9)	160(24000)	120(18000)	140(21000)
12.5	1/2”	30(4500)	75(19.8)	130(19500)	120(18000)	130(19500)
20	3/4”	30(4500)	180(47.6)	120(18000)	120(18000)	120(18000)
25	1″	25(3625)	270(71.4)	100(14500)	100(14500)	100(14500)
31.5	11/4”	25(3625)	330(87.3)	100(14500)	100(14500)	100(14500)
40	11/2″	20(3000)	450(119)	80(12000)	80(12000)	80(12000)
50	2″	15(2250)	900(238)	60(9000)	60(9000)	60(9000)

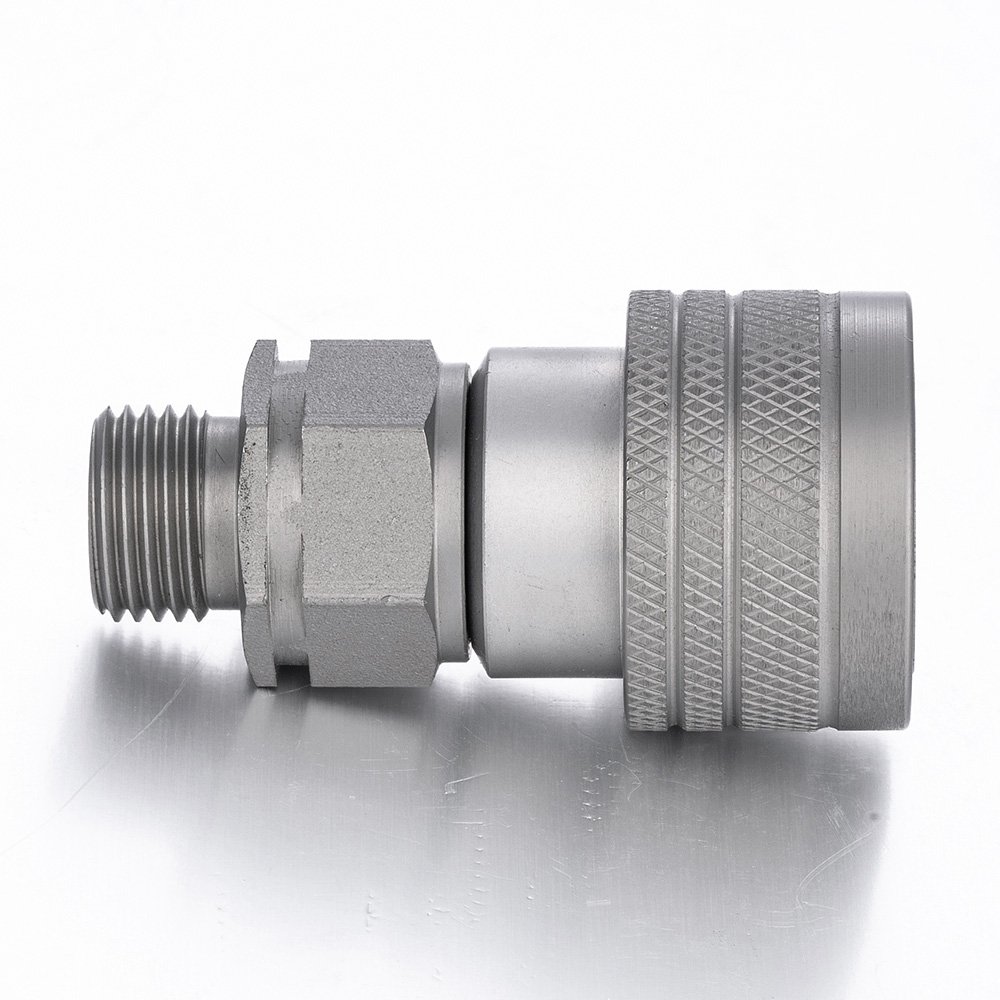

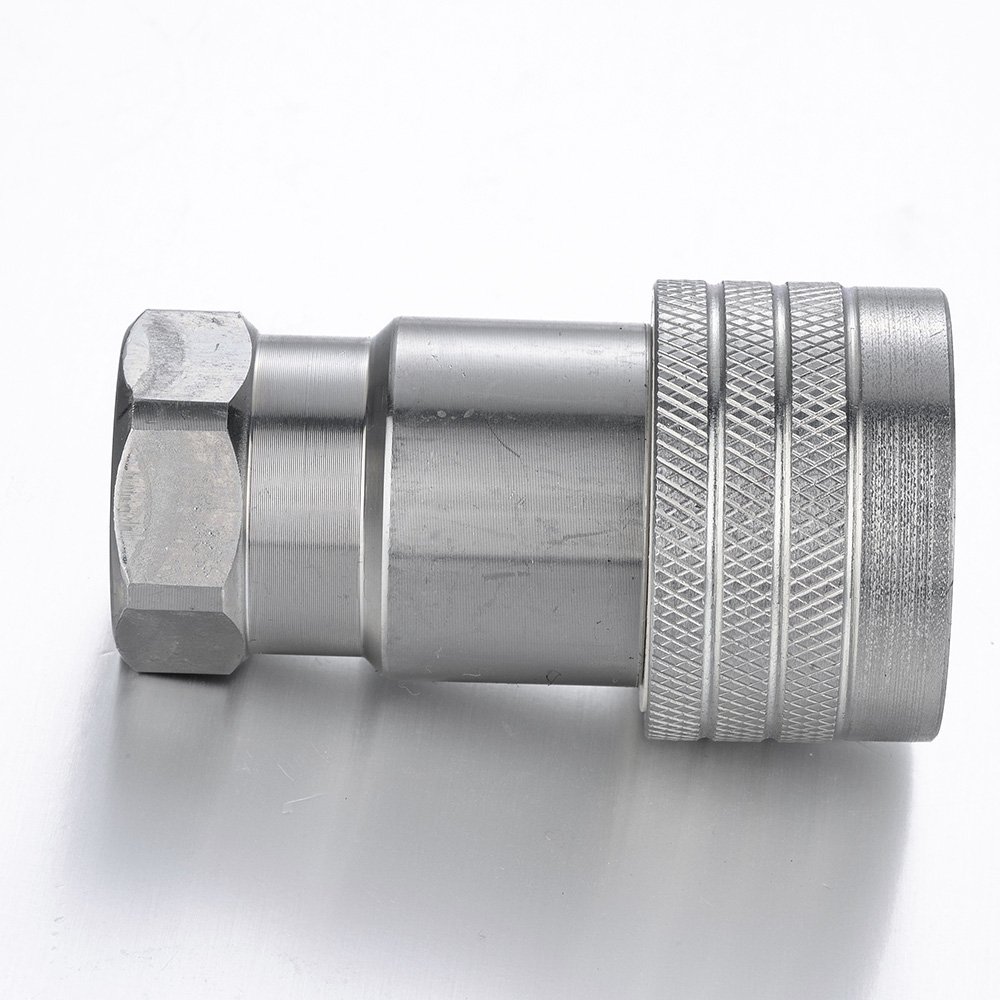

Female

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(in.）	(in.）	(in.）
KZE-02SF	G1/4	47.0	22.0	27.0	KZE-N02SF	NPT1/4	1.85	0.88	1.08
KZE-03SF	G3/8	55.0	27.0	32.0	KZE-NO3SF	NPT3/8	2.18	1.06	1.27
KZE-04SF	G1/2	70.0	32.0	39.0	KZE-N04SF	NPT1/2	2.75	1.25	1.52
KZE-22SF	M22X1.5	70.0	32.0	39.0	KZE-U34SF	UNF3/4	2.75	1.25	1.52
KZE-06SF	G3/4	85.0	41.0	48.0	KZE-N06SF	NPT3/4	3.36	1.62	1.90
KZE-08SF	G1	104.0	48.0	54.0	KZE-N08SF	NPT1	4.11	1.88	2.14
KZE-10SF	G11/4	110.0	54.0	69.0	KZE-N10SF	NPT11/4	4.33	2.12	2.71
KZE-12SF	G11/2	128.0	60.0	82.0	KZE-N12SF	NPT11/2	5.03	2.36	3.22
KZE-16SF	G2	153.0	77.0	100.0	KZE-N16SF	NPT 2	6.02	3.03	3.93

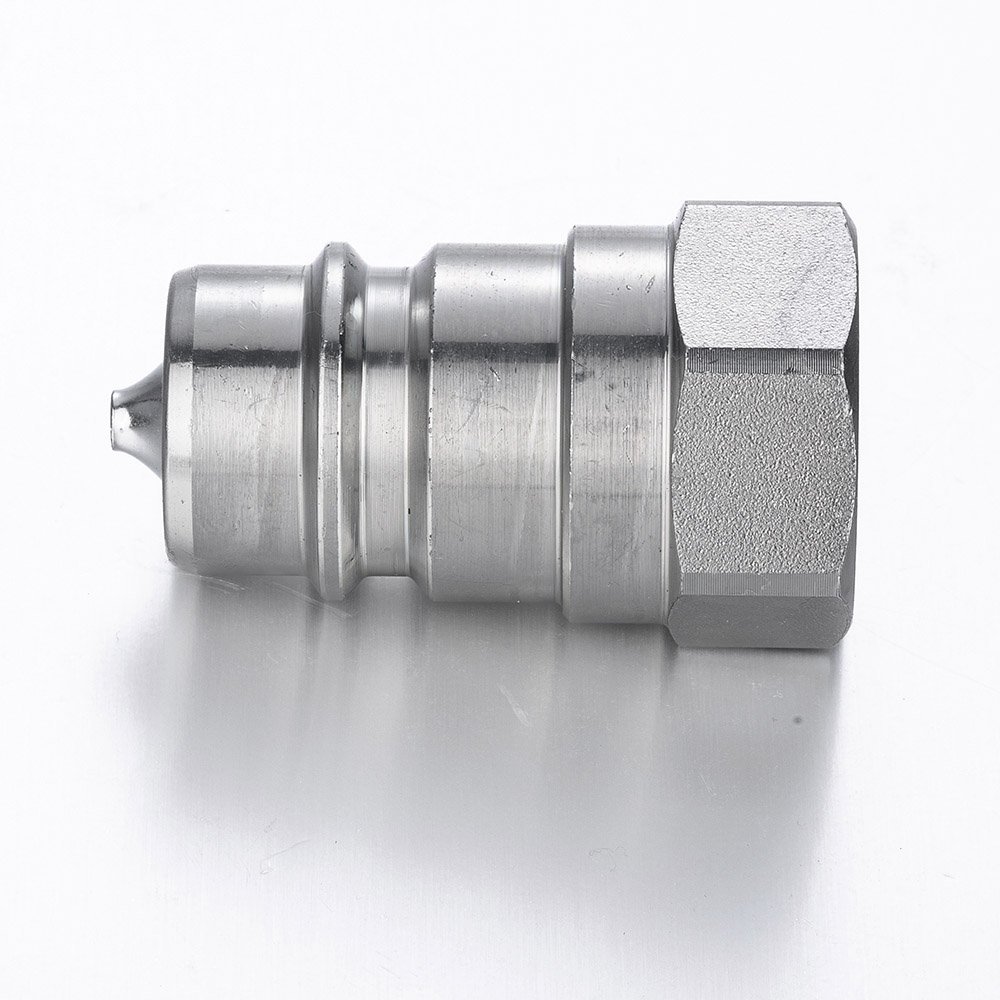

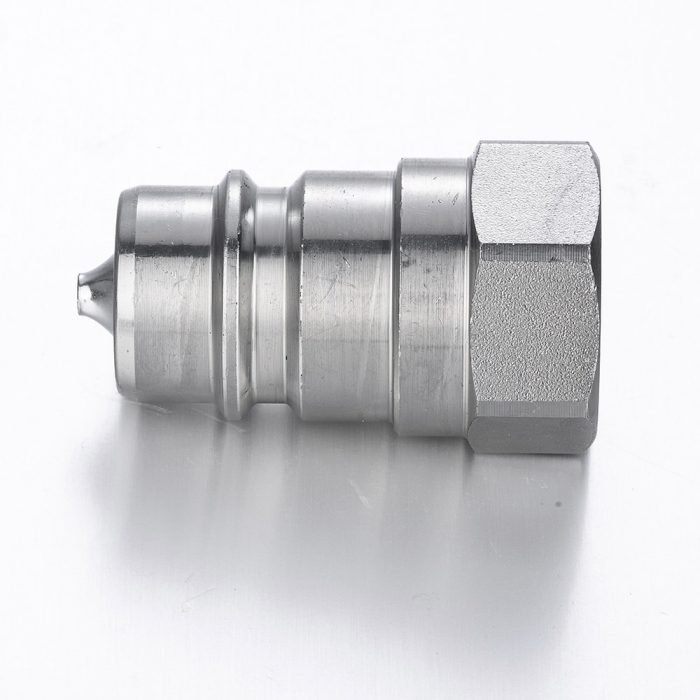

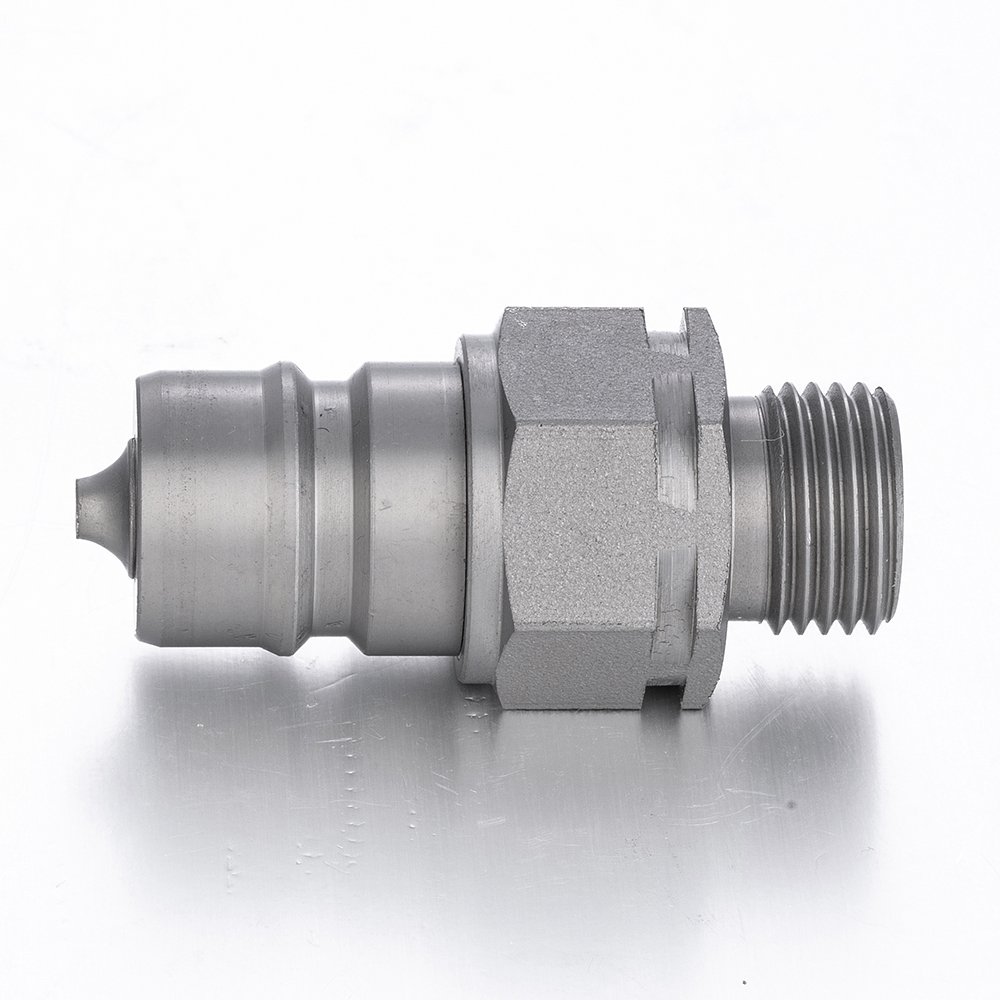

Male

Part No.	Thread	E	F	G	Part No.	Thread	E	F	G
		(mm.)	(mm.)	( mm.)			(in.）	(in.）	(in.）
KZE-02PF	G1/4	32.0	19.0	22.0	KZE-NO2PF	NPT1/4	1.27	0.75	0.87
KZE-03PF	G3/8	37.0	22.0	26.0	KZE-N03PF	NPT3/8	1.47	0.88	1.01
KZE-04PF	G1/2	46.0	27.0	31.0	KZE-N04PF	NPT1/2	1.82	1.06	1.23
KZE-22PF	M22X1.5	46.0	27.0	31.0	KZE-U34PF	UNF3/4	1.82	1.06	1.23
KZE-06PF	G3/4	58.0	35.0	40.0	KZE-N06PF	NPT3/4	2.29	1.38	1.59
KZE-08PF	G1	66.0	41.0	48.0	KZE-N08PF	NPT1	2.58	1.62	1.88
KZE-10PF	G11/4	75.0	54.0	59.0	KZE-N10PF	NPT11/4	2.95	2.12	2.32
KZE-12PF	G11/2	86.0	60.0	68.0	KZE-N12PF	NPT11/2	3.38	2.36	2.67
KZE-16PF	G2	100.0	77.0	84.0	KZE-N16PF	NPT2	3.93	3.03	3.30

Features

Connexion by pulling back the sleeve
Disconnexion by pulling back the female sleeve
Shut off by poppet valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability according to ISO 7241-1 part A
