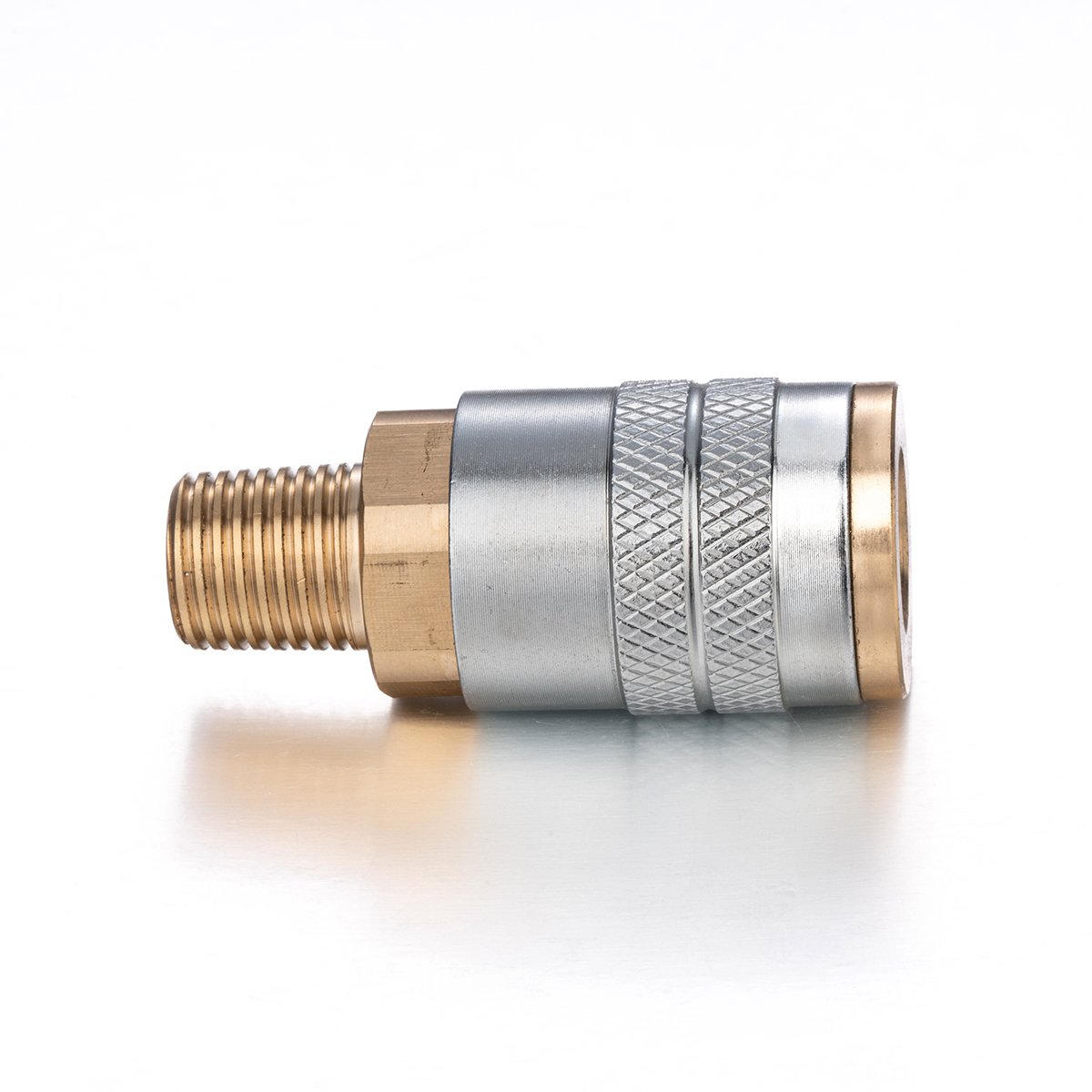

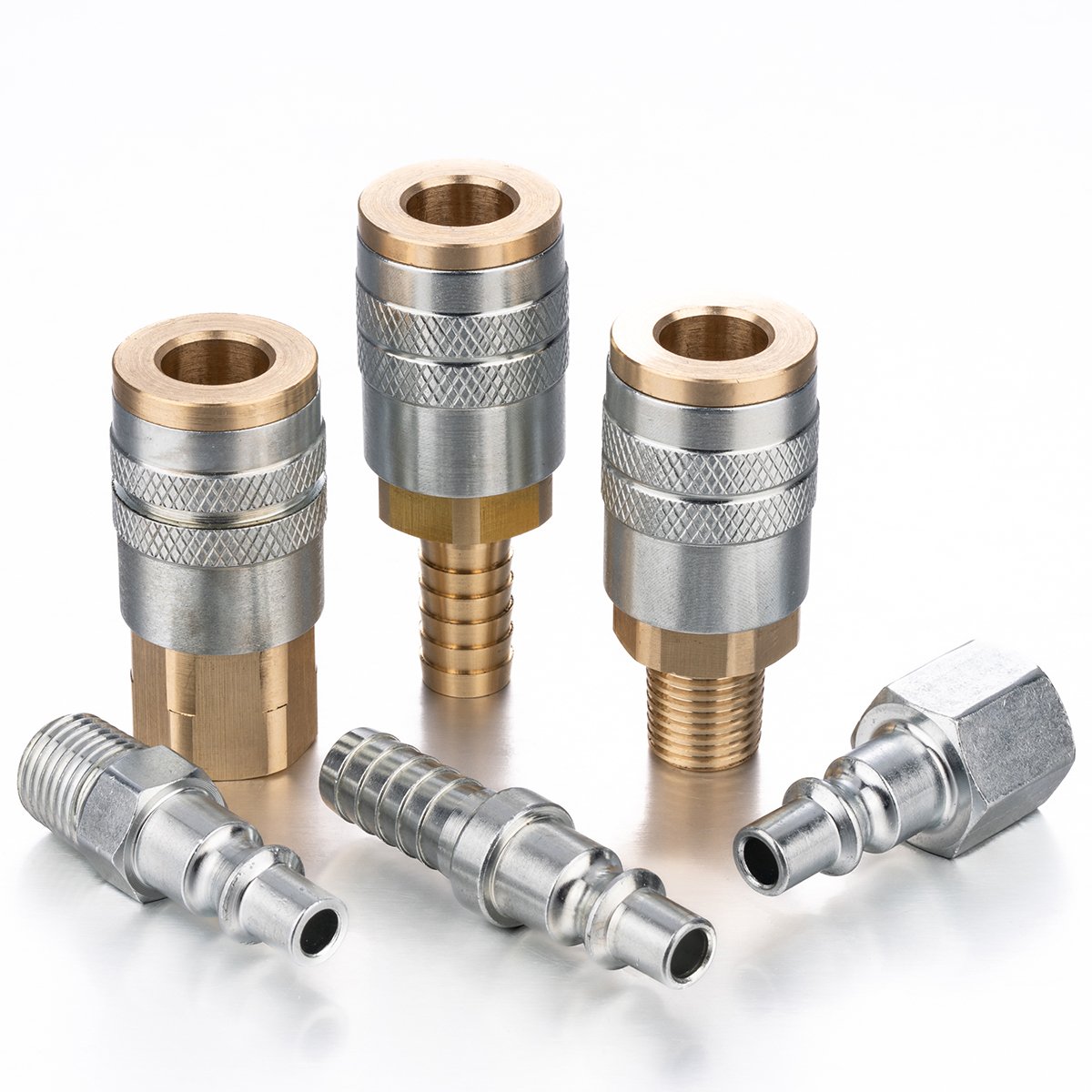

ARO 210 Series Pneumatic Quick Connectors

Guaranteed Safe And Secure Checkout

Application & Characteristics

Features

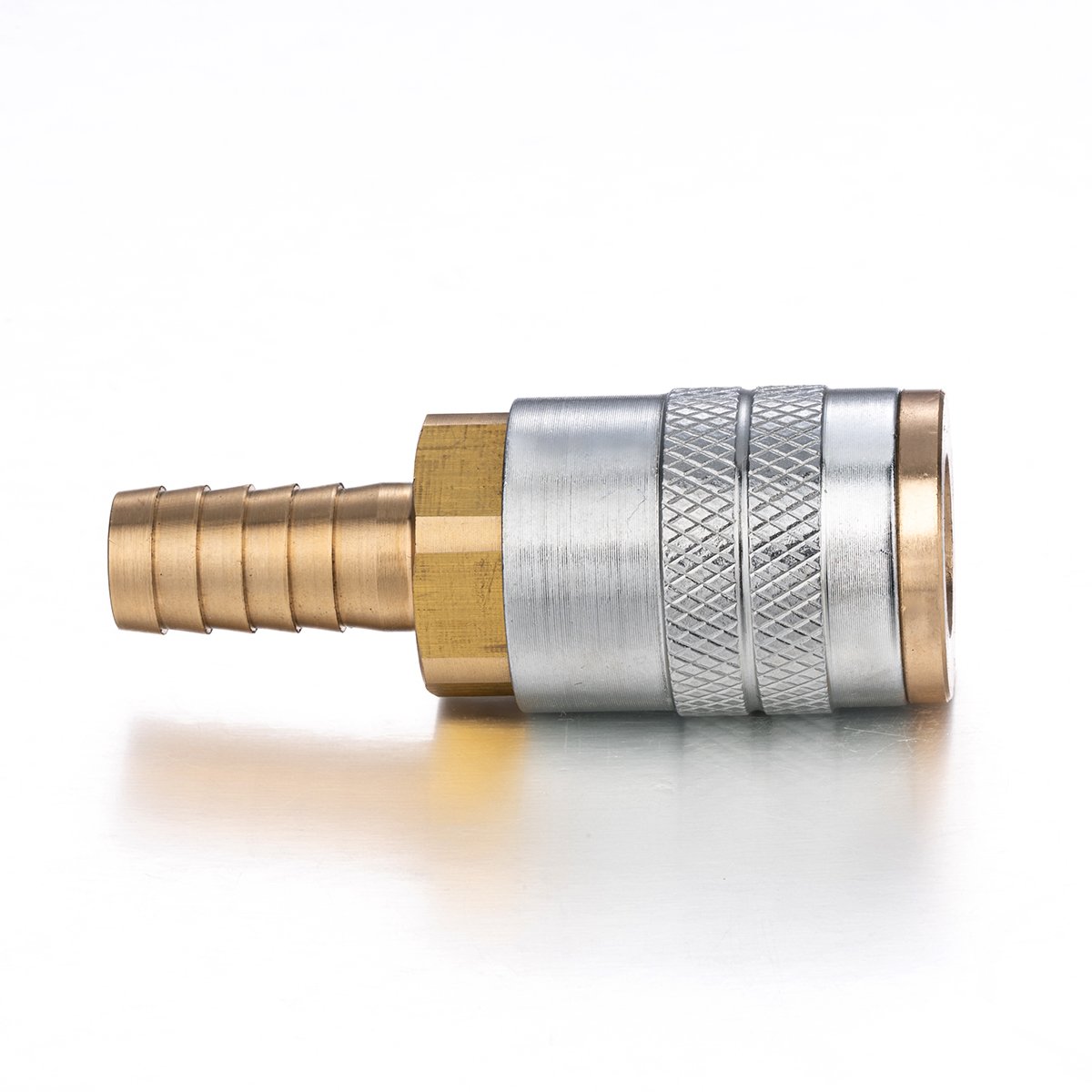

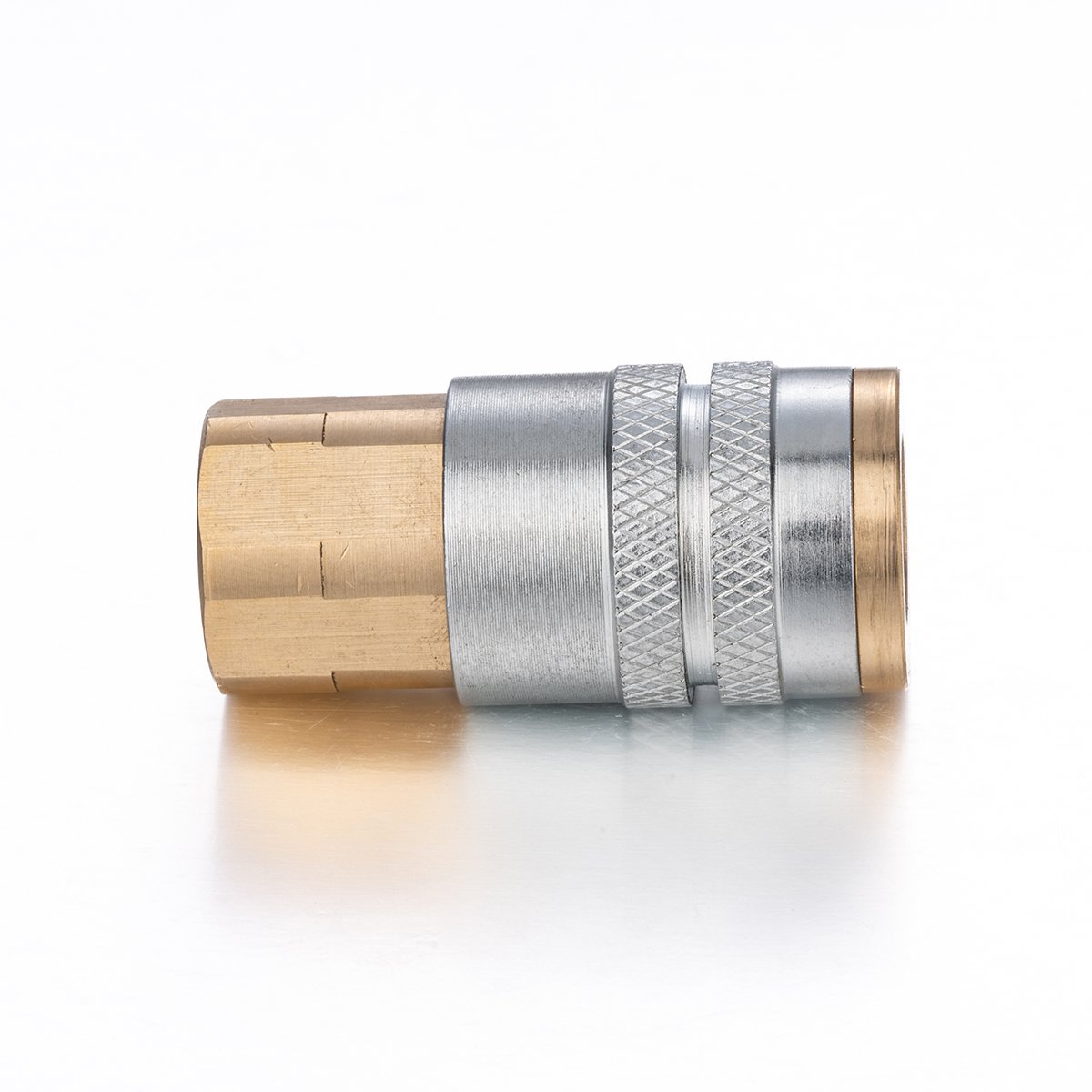

“A” series couplings are interchangeable with ARO 210 series couplings

“A” couplings have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.

The”A” Series is only available in 1/4″ body size.

Standard seal material is nitrile.See the Coupling Selection and Ordering Information guide at the beginning of Section A and the Fluid Compatibility Chart at the end of this catalog for optional materials.

Specifications

Body Size：1/4

Rated Pressure(PSl)：250

Temperature Range(Nitrile seal)：-40°to +250°F

Locking Device：6 balls/locking pin

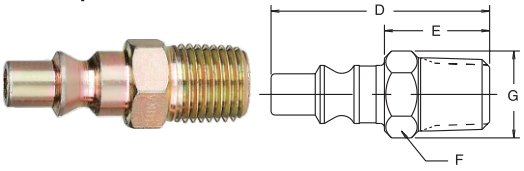

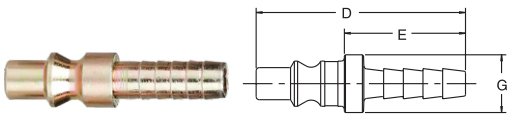

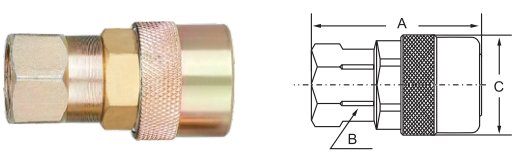

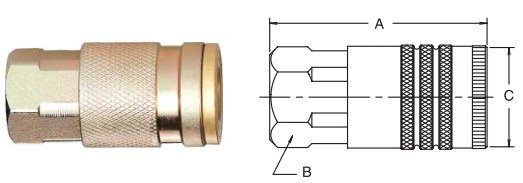

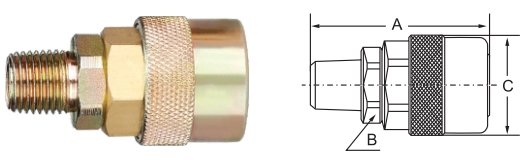

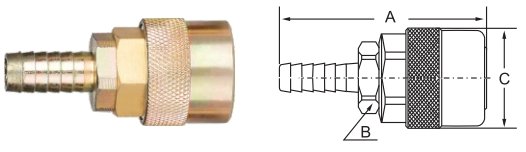

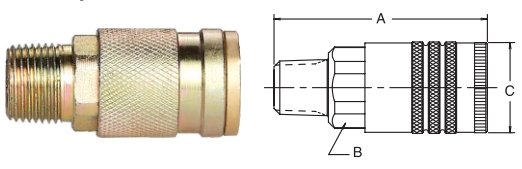

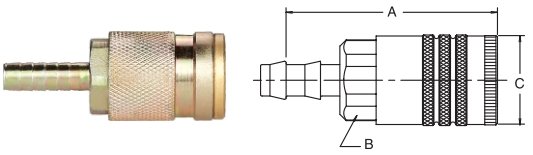

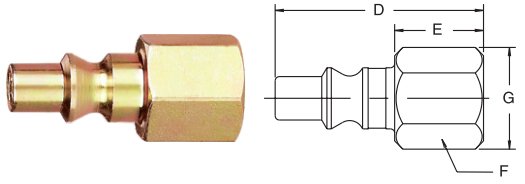

Drawings & Specifications

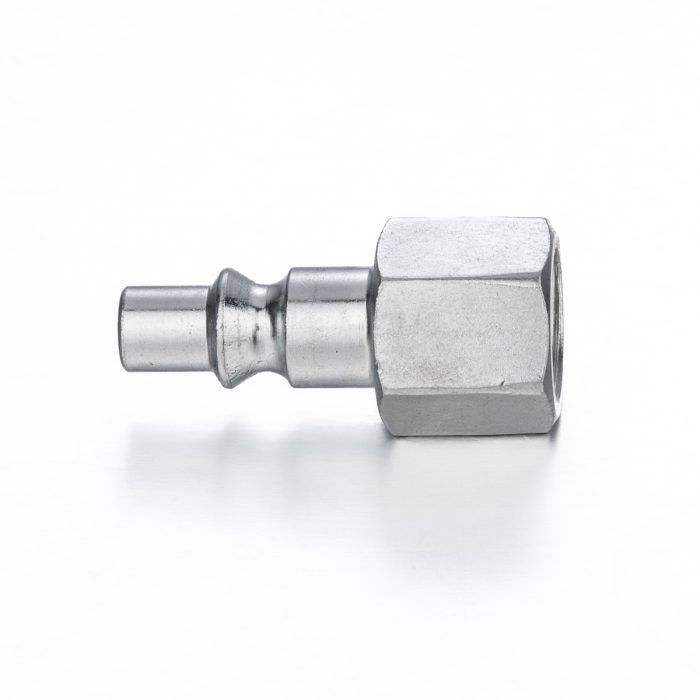

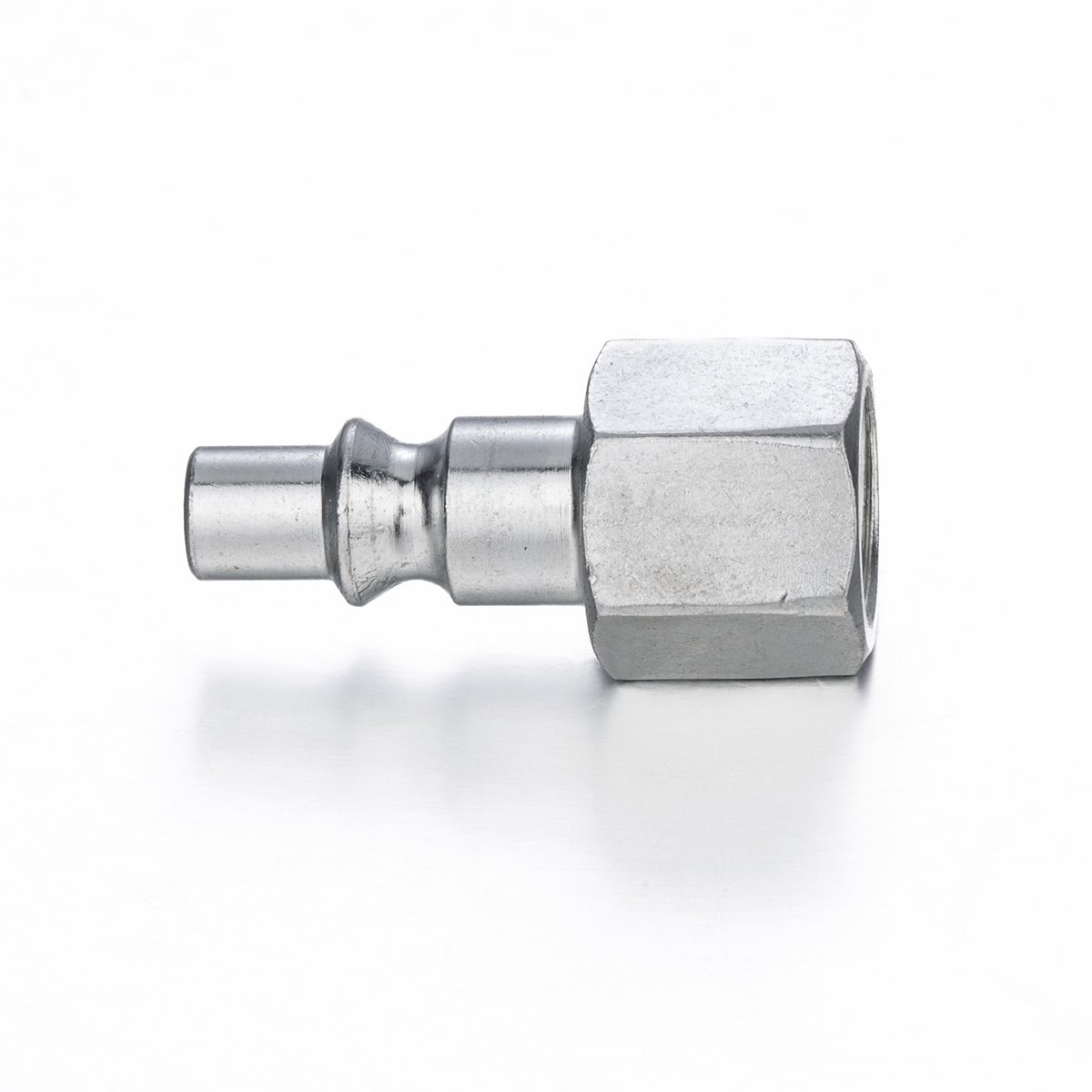

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
ASF-N01	1/4	3/8-27	1.86	0.75	0.88
ASF-N02	1/4	1/4-18	1.92	0.81	0.94
ASF-N03	1/4	3/8-18	1.92	0.81	0.94

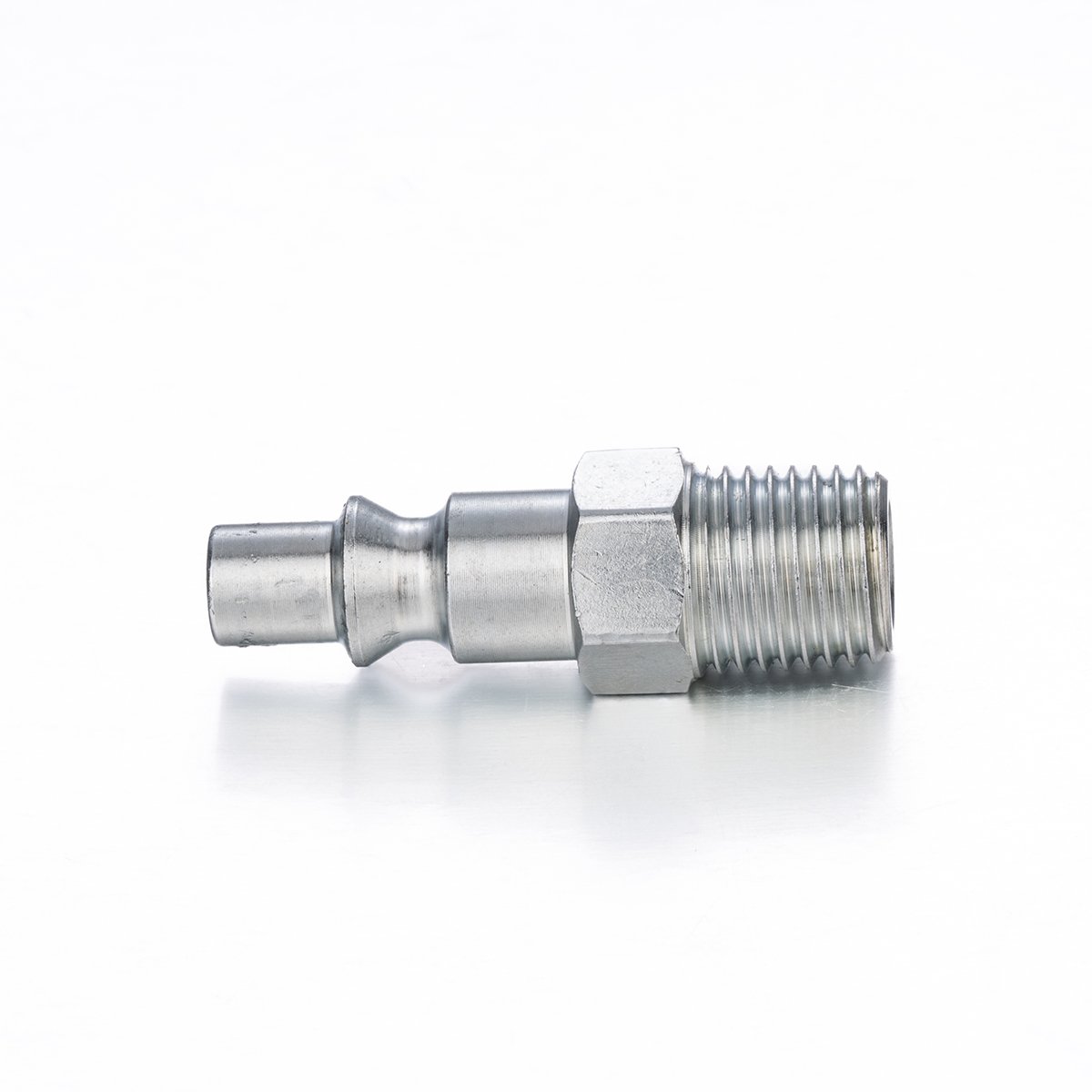

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
ASM-N02	1/4	1/4-18	2.08	0.75	0.88
ASM-N03	1/4	3/8-18	2.11	0.75	0.88

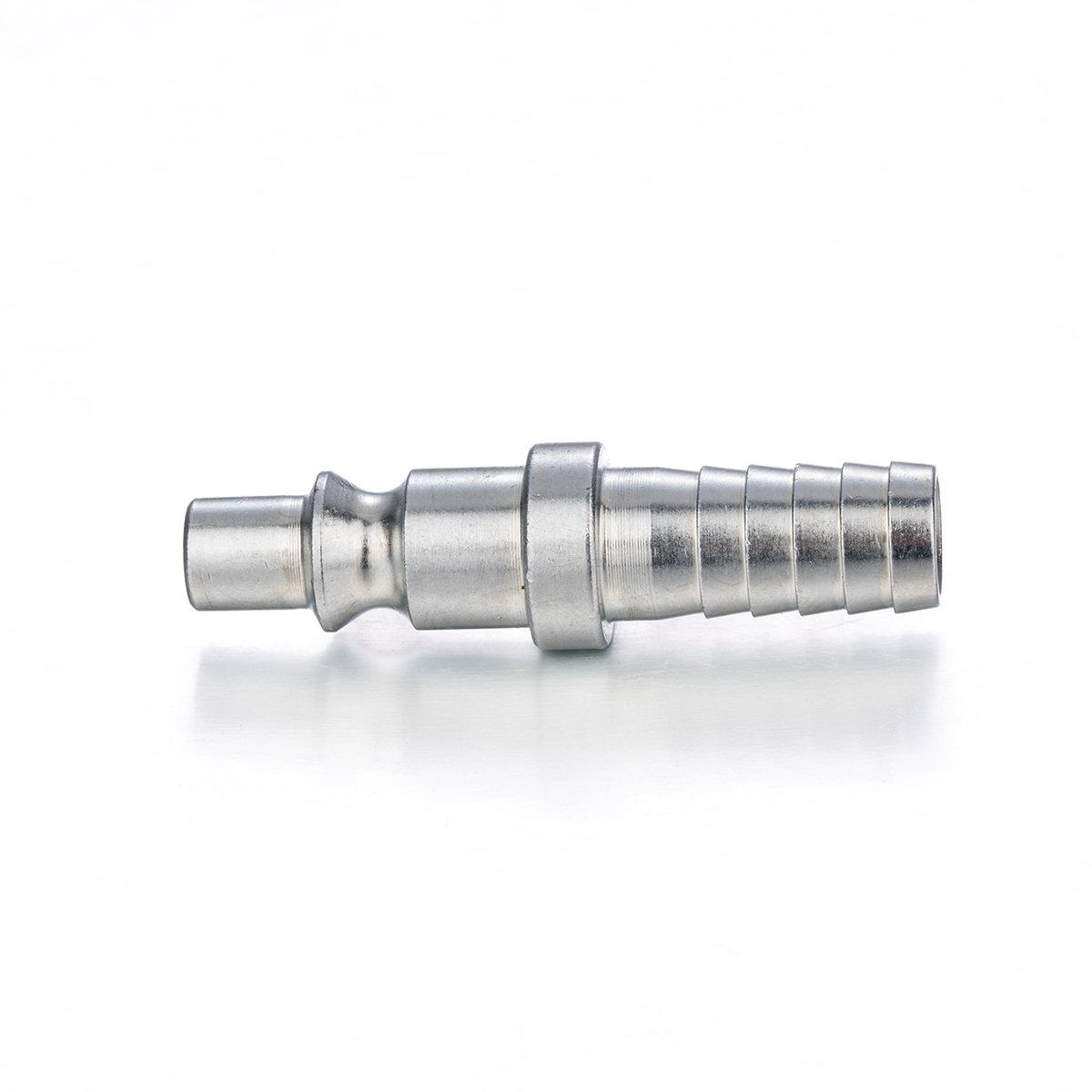

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
ASH-1/4	1/4	1/4	2.35	0.75	0.88
ASH-3/8	1/4	3/8	2.5	0.75	0.88

Part No.订货号	Body Size规格(in.)	Thread 螺纹 NPT	A(in.)	B(in.)	C(in.)
ASFA-N01	1/4	3/8-27	1.86	0.75	0.88
ASFA-N02	1/4	1/4-18	1.92	0.81	0.94
ASFA-N03	1/4	3/8-18	1.92	0.81	0.94
